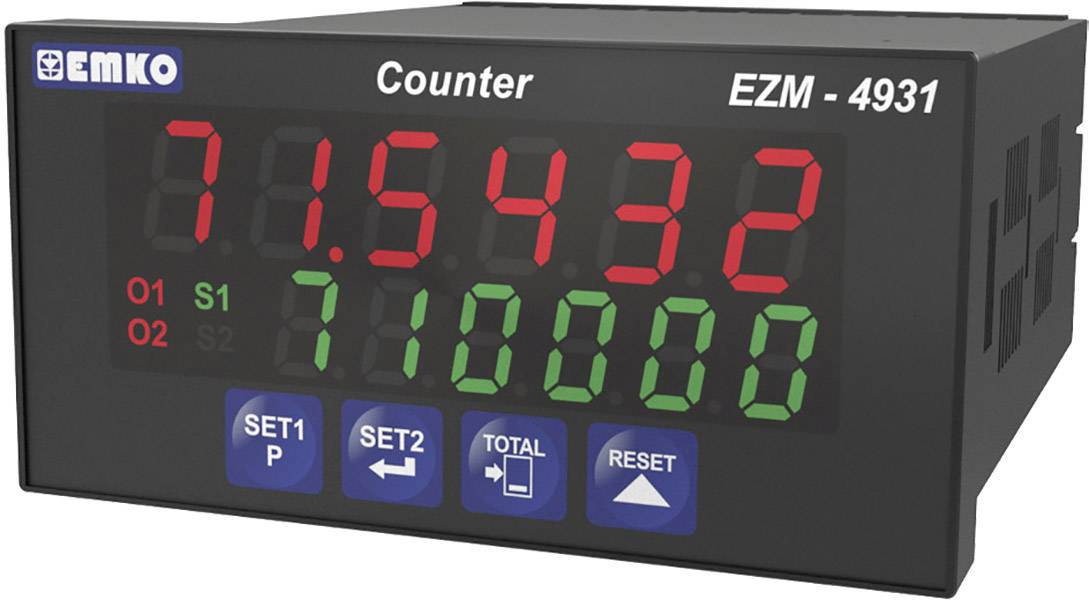

Emko EZM-4931.5.00.1.1/01.00/0.0.0.0 Preset counter
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
EZM-4931.5.00.1.1/01.00/0.0.0.0 200kHz NPN/PNP rotary encoder count input
- 6-digit process value display (PV) and 6-digit display setpoint (SV)
- Operation with 2 pre-selection values
- Reset, stop and channel A/B count inputs
- Operation with automatic and manual reset
- Sensor inputs NPN or PNP
- 1-fold, 2-fold and 4-fold phase shift possible
- Multiplication coefficient, division coefficient and commutation
- Interface RS232 Modbus RTU protocol
- Input frequency maximum 200 kHz
- Selection of max. input frequency
Technical specifications
- Product type
Preset counter
- Reading type
Pulse
- Reading range (min.)
0 Hz
- Type
EZM-4931.5.00.1.1/01.00/0.0.0.0
- Reading range (max.)
20000 Hz
- Display technology
LED
IP65 (on front)/IP20 (on back)
- Recess width
92 mm
- Display (counts)
999999
- Recess height
46 mm
- Operating voltage
230 V AC
- Dim
(L x W x H) 87 x 96 x 48 mm
- Weight
210 g
- Max. operating voltage
230 V AC
- Min. operating voltage
230 V AC
- Display lighting
red
green
- Factory colour
Black
- Width
96 mm
- Height
48 mm
- Length
87 mm
- Frame width
96 mm
- Frame height
0.48 cm
- Interfaces
RS232
- Interfaces
Modbus RTU
Documents & Downloads
Datasheet
Datasheet 1402009 Emko EZM-4931.5.00.1.1/01.00/0.0.0.0 Preset counter
User & Safety Instructions
User & Safety Instructions 1402009 Emko EZM-4931.5.00.1.1/01.00/0.0.0.0 Preset counter
Description
The preset counter Emko EZM-4931 is ideal for use with rotary encoders. The preset counter counts up and down depending on the setting. With the integrated 12 V or 5 V DC output, sensors or rotary encoders can be supplied.
