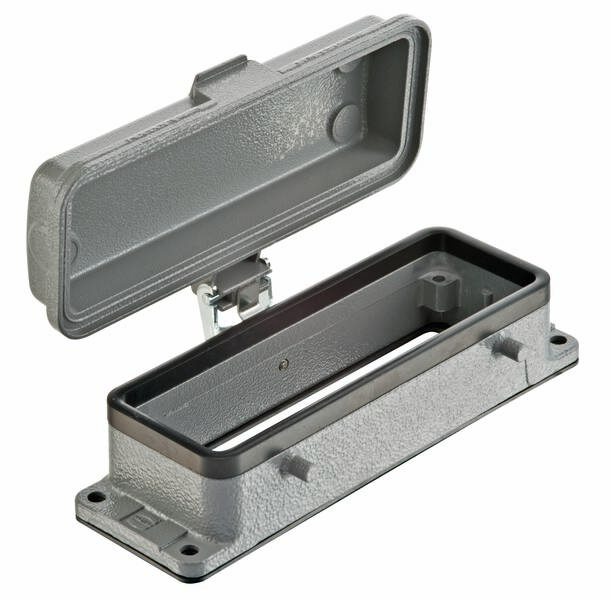

Enclosure extension 09 30 024 0317 09300240317 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure extension
Series
Han® B
Case material
Aluminium, die cast
Type
09 30 024 0317
Manufacturer part #
09300240317
Datasheet (PDF)
Technical specifications
- Locking type: Transverse brace (bush-side)
- Temperature limit: -40 ... +125 °C
- Net weight: 171 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Harting standard housing for industrial plug connectors
- Protection class according to IEC 60529: IP65
- Housing description: With metal cap
- Design size 24 B
- Approvals DNV GL
- Casing type: Attachment casing
- Housing series: HAN® B
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 7037 (dust gray)
- Material sealing: NBR
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: Low built
- Protection class according to UL 50 / UL 50E:4;4X;12
- Type
09 30 024 0317
- Product type
Enclosure extension
- Series
Han® B
- Manufacturer part #
09300240317
- Features
Transverse brace
- Case material
Aluminium, die cast
- Series
Han® B
- Content
1 pc(s)
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
TRUE
Grey
Double locking levers
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
TRUE
Housing extension
IP65
Other
Cover
None
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3001608 Enclosure extension 09 30 024 0317 09300240317 HARTING 1 pc(s)
Datasheet 3001608 Enclosure extension 09 30 024 0317 09300240317 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001608 Enclosure extension 09 30 024 0317 09300240317 HARTING 1 pc(s)
Description
Attachment casing, with metal cap, size: 24 B, low design, cross-brackets (sleeve-side), Material housing: die-cast aluminum, powder-coated
