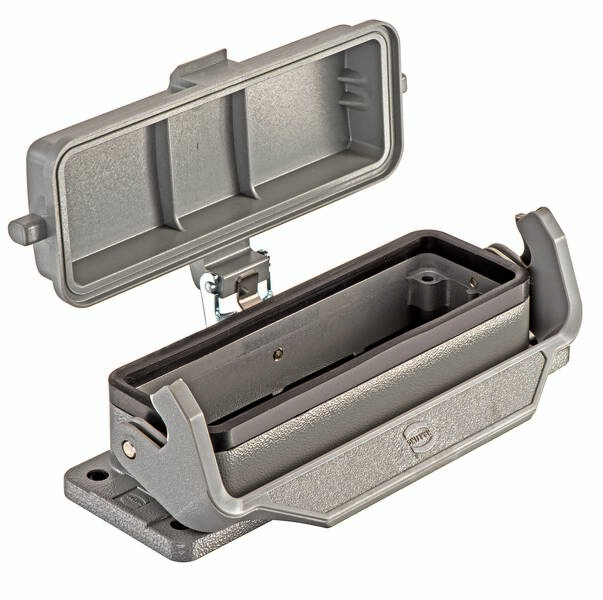

Enclosure extension 09 30 024 1308 09300241308 HARTING 1 pc(s) Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Enclosure extension
Series
Han® B
Case material
Aluminium, die cast
Type
09 30 024 1308
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 170 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Harting standard housing for industrial plug connectors
- Material locking: Polycarbonate (PC);stainless steel
- Protection class according to IEC 60529:IP65;IP67
- Housing description: With plastic cap
- Design size 24 B
- Approvals DNV GL
- Casing type: Attachment casing
- Housing series: HAN® B
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 7037 (dust gray)
- Material sealing: NBR
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: Low built
- Protection class according to UL 50 / UL 50E:4;4X;12
- Colour locking: RAL 7037 (dust gray)
- Material flammability class to UL 94 (locking bar): V-0
- Han-Easy Lock®: Yes
- Packaging type
Single
- Type
09 30 024 1308
- Product type
Enclosure extension
- Series
Han® B
- Manufacturer part #
09300241308
- Features
Longitudinal brace
- Case material
Aluminium, die cast
- Content
1 pc(s)
IP65
IP67
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
TRUE
Grey
Single locking lever
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
TRUE
Housing extension
IP65
Other
Base unit
None
Documents & Downloads
Datasheet
Datasheet 3001585 Enclosure extension 09 30 024 1308 09300241308 HARTING 1 pc(s) Single
Datasheet 3001585 Enclosure extension 09 30 024 1308 09300241308 HARTING 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 3001585 Enclosure extension 09 30 024 1308 09300241308 HARTING 1 pc(s) Single
Description
Extension housing, with plastic cap, size: 24 B, low design, longitudinal rail, Polycarbonate (PC), stainless steel, material housing: Aluminium die cast
