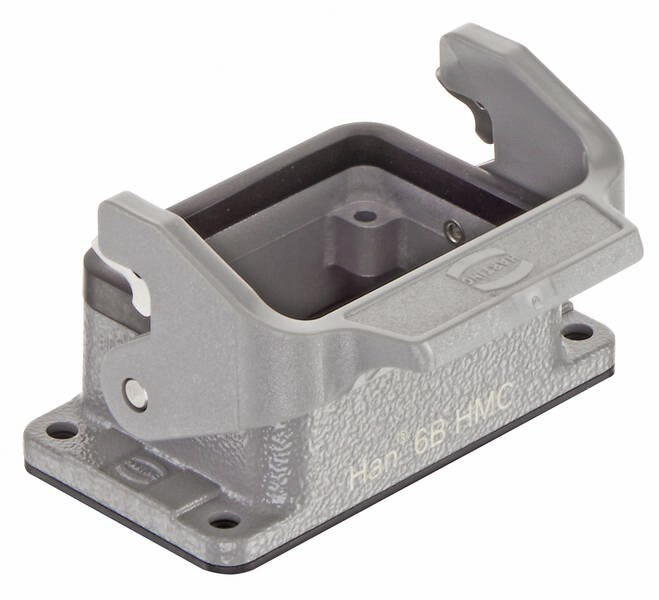

Enclosure extension 09 30 206 0301 09302060301 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure extension
Case material
Aluminium, die cast
Type
09 30 206 0301
Manufacturer part #
09302060301
Features
Longitudinal brace
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 84 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Special casing for high insertion cycles
- Material locking: Polycarbonate (PC);stainless steel
- Protection class according to IEC 60529: IP65
- Design size 6 B
- Approvals DNV GL
- Casing type: Attachment casing
- Housing series: HAN® HMC
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 7037 (dust gray)
- Material sealing: NBR
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: Low built
- Mating cycles with other HMC components: ≥ 10,000
- Protection class according to UL 50 / UL 50E:4;4X;12
- Colour locking: RAL 7037 (dust gray)
- Material flammability class to UL 94 (locking bar): V-0
- Han-Easy Lock®: Yes
- Type
09 30 206 0301
- Product type
Enclosure extension
- Manufacturer part #
09302060301
- Features
Longitudinal brace
- Case material
Aluminium, die cast
- Mating cycles
≥ 10.000
- Series
Han® HMC
- Content
1 pc(s)
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
FALSE
Grey
Single locking lever
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
TRUE
Housing extension
IP65
Other
Base unit
None
Documents & Downloads
Datasheet
Datasheet 3001491 Enclosure extension 09 30 206 0301 09302060301 HARTING 1 pc(s)
Datasheet 3001491 Enclosure extension 09 30 206 0301 09302060301 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001491 Enclosure extension 09 30 206 0301 09302060301 HARTING 1 pc(s)
Description
Extension housing, size: 6 B, low design, longitudinal rail, polycarbonate (PC), Stainless steel, material housing: die-cast aluminum, powder-coated
This text is machine translated.
