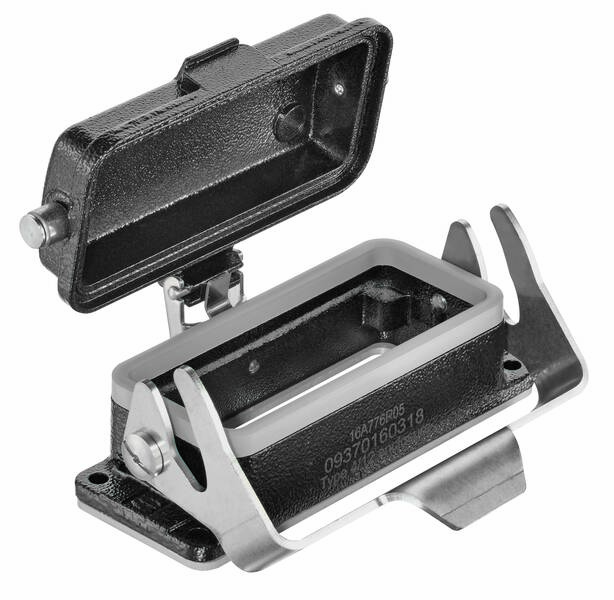

Enclosure extension 09 37 016 0318 09370160318 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure extension
Case material
Aluminium, die cast
Type
09 37 016 0318
Manufacturer part #
09370160318
Features
Longitudinal brace
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 231.1 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Housing for increased environmental influences
- Material locking: Stainless steel
- Protection class according to IEC 60529: IP65
- Housing description: With metal cap
- Design size 16 B
- Approvals DNV GL
- Casing type: Attachment casing
- Housing series: HAN® M
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 9005 (jet black)
- Material seal: FPM
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: Low built
- Protection class according to UL 50 / UL 50E:4;4X;12
- Type
09 37 016 0318
- Product type
Enclosure extension
- Manufacturer part #
09370160318
- Features
Longitudinal brace
- Case material
Aluminium, die cast
- Series
Han® M
- Content
1 pc(s)
IP65
- Max. temperature
125 °C
- Min. temperature
-40 °C
TRUE
TRUE
Black
Single locking lever
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
TRUE
Housing extension
IP65
Other
Base unit
None
Documents & Downloads
Datasheet
Datasheet 3001605 Enclosure extension 09 37 016 0318 09370160318 HARTING 1 pc(s)
Datasheet 3001605 Enclosure extension 09 37 016 0318 09370160318 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001605 Enclosure extension 09 37 016 0318 09370160318 HARTING 1 pc(s)
Description
Extension casing, with metal cap, size: 16 B, low design, longitudinal rail, Stainless steel, material housing: die-cast aluminum, powder-coated
