Enclosure extension 09 37 016 0398 09370160398 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure extension
Case material
Aluminium, die cast
Type
09 37 016 0398
Manufacturer part #
09370160398
Features
low type
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 0.01 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Housing for increased environmental influences
- Material locking: Stainless steel
- Protection class according to IEC 60529 IP66
- Housing description: Rear mounting
- Design size 16 B
- Approvals DNV GL
- Casing type: Attachment casing
- Housing series: HAN® M
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 9005 (jet black)
- Material seal: FPM
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: Low built
- Protection class according to UL 50 / UL 50E:4;4X;12
- Type
09 37 016 0398
- Product type
Enclosure extension
- Manufacturer part #
09370160398
- Features
low type
- Case material
Aluminium, die cast
- Series
Anbaugehäuse
- Content
1 pc(s)
IP66
- Max. temperature
+125 °C
- Min. temperature
-40 °C
TRUE
FALSE
Black
Single locking lever
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
TRUE
Housing extension
IP66
Other
Base unit
None
Documents & Downloads
Datasheet
Datasheet 3001667 Enclosure extension 09 37 016 0398 09370160398 HARTING 1 pc(s)
Datasheet 3001667 Enclosure extension 09 37 016 0398 09370160398 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001667 Enclosure extension 09 37 016 0398 09370160398 HARTING 1 pc(s)
Description

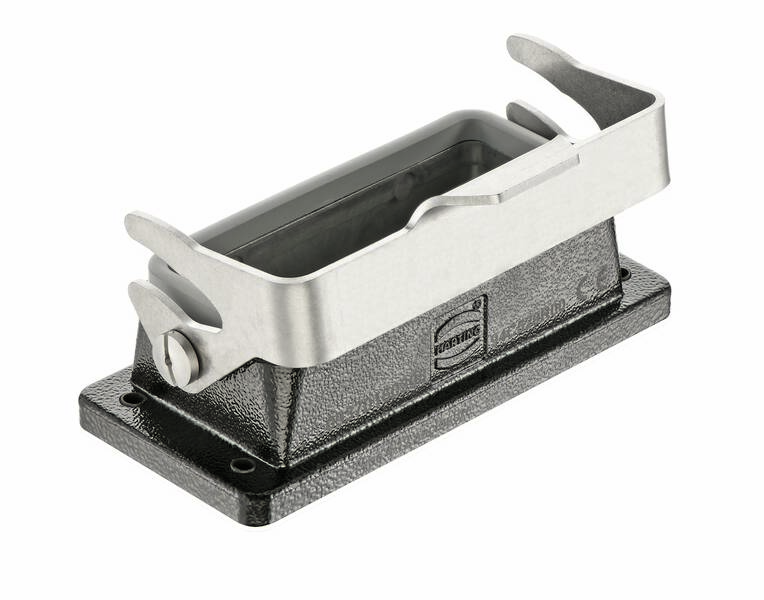

Mounting housing, rear mounting, size: 16 B, low profile, longitudinal, Stainless steel, material housing: die-cast aluminum, powder-coated
