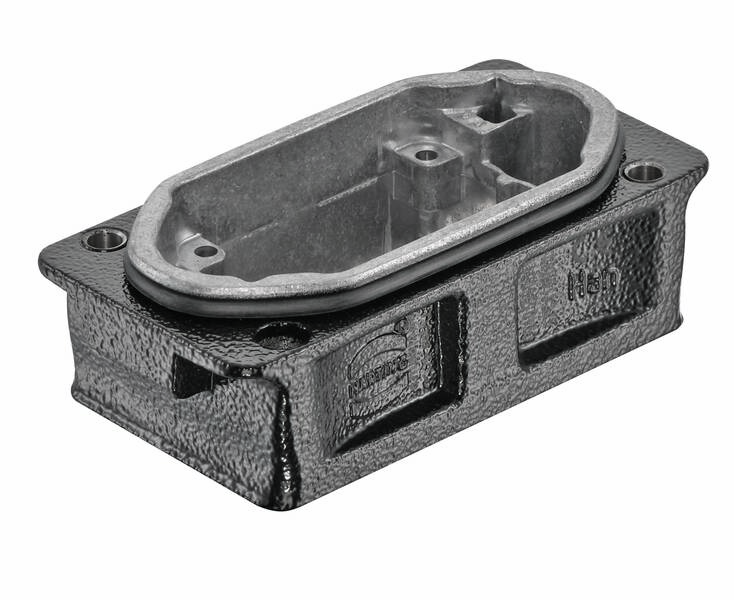

Enclosure extension 09 40 506 0311 09405060311 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure extension
Case material
Aluminium, die cast
Type
09 40 506 0311
Manufacturer part #
09405060311
Features
+ screw lock
Datasheet (PDF)
Technical specifications
- Type of locking: Screw lock
- Temperature limit: -40 ... +125 °C
- Net weight: 124 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Range of uses: Housing for harsh outdoor use
- Protection class according to IEC 60529: IP65;IP68;IP6K9K according to ISO 20653
- Design size 6 B
- Approvals DNV GL
- Casing type: Attachment casing
- Housing series: HAN® HPR Compact
- Material housing: Aluminium die-cast; corrosion-resistant
- Surface of housing: Powder-coated
- Colour of housing: RAL 9005 (jet black)
- Material sealing: NBR
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: Low built
- Protection class according to UL 50 / UL 50E:4;4X;12
- Tightening torque screw locking: 4 Nm
- Type
09 40 506 0311
- Product type
Enclosure extension
- Manufacturer part #
09405060311
- Features
+ screw lock
- Case material
Aluminium, die cast
- Series
Han® HPR Compact
- Content
1 pc(s)
IP65
IP68
IP6K9K
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
FALSE
Black
Screw
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
TRUE
Housing extension
IP65
Other
None
None
Documents & Downloads
Datasheet
Datasheet 3001494 Enclosure extension 09 40 506 0311 09405060311 HARTING 1 pc(s)
Datasheet 3001494 Enclosure extension 09 40 506 0311 09405060311 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001494 Enclosure extension 09 40 506 0311 09405060311 HARTING 1 pc(s)
Description
Mounting housing, size: 6 HPR, low design, screw locking, material housing: Die-cast aluminum, corrosion-resistant, powder-coated
