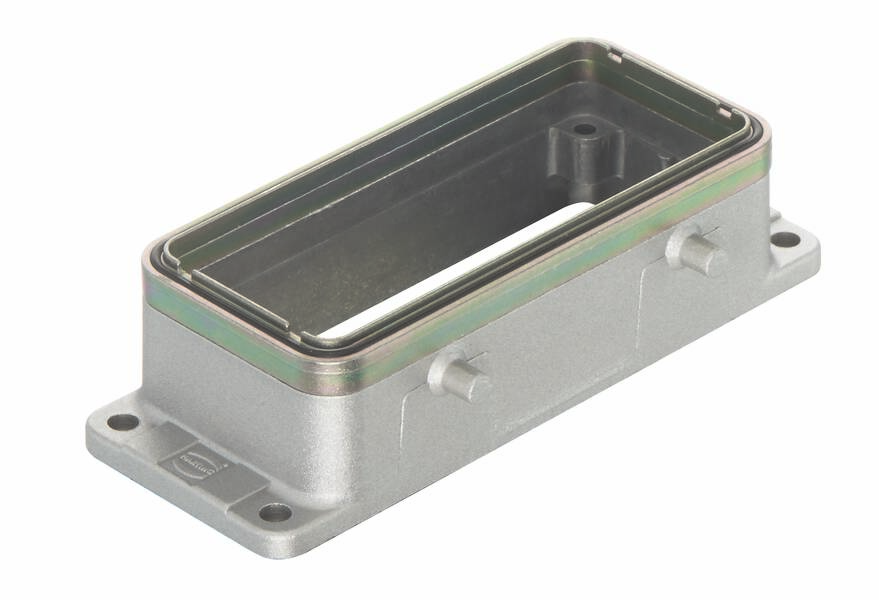

Enclosure extension 09 62 816 0303 09628160303 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure extension
Series
Han® B
Case material
Aluminium, die cast
Type
09 62 816 0303
Manufacturer part #
09628160303
Datasheet (PDF)
Technical specifications
- Locking type: Transverse brace (bush-side)
- Temperature limit: -40 ... +125 °C
- Net weight: 101 g
- Application area: Housing for increased EMC requirements
- Protection class according to IEC 60529: IP65
- Housing description: Inner seal
- Design size 16 B
- Approvals DNV GL
- Casing type: Attachment casing
- Housing series: HAN® EMC/B.
- Material housing: Aluminium die-cast
- Surface housing: Uncoated
- Colour of housing: Unpainted
- Material sealing: NBR
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: Low built
- Protection class according to UL 50 / UL 50E:4;12
- Type
09 62 816 0303
- Product type
Enclosure extension
- Series
Han® B
- Manufacturer part #
09628160303
- Features
+ seal
- Case material
Aluminium, die cast
- Series
Han® EMV/B
- Content
1 pc(s)
IP65
- Max. temperature
125 °C
- Min. temperature
-40 °C
TRUE
FALSE
Other
Double locking levers
FALSE
FALSE
Aluminium
Uncoated
-40-125 °C
Other
FALSE
TRUE
Housing extension
IP65
Other
Cover
None
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3001560 Enclosure extension 09 62 816 0303 09628160303 HARTING 1 pc(s)
Datasheet 3001560 Enclosure extension 09 62 816 0303 09628160303 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001560 Enclosure extension 09 62 816 0303 09628160303 HARTING 1 pc(s)
Description
Attachment casing, inner seal, size: 16 B, low profile, double lever (grommet side), Material housing: aluminum die-cast
