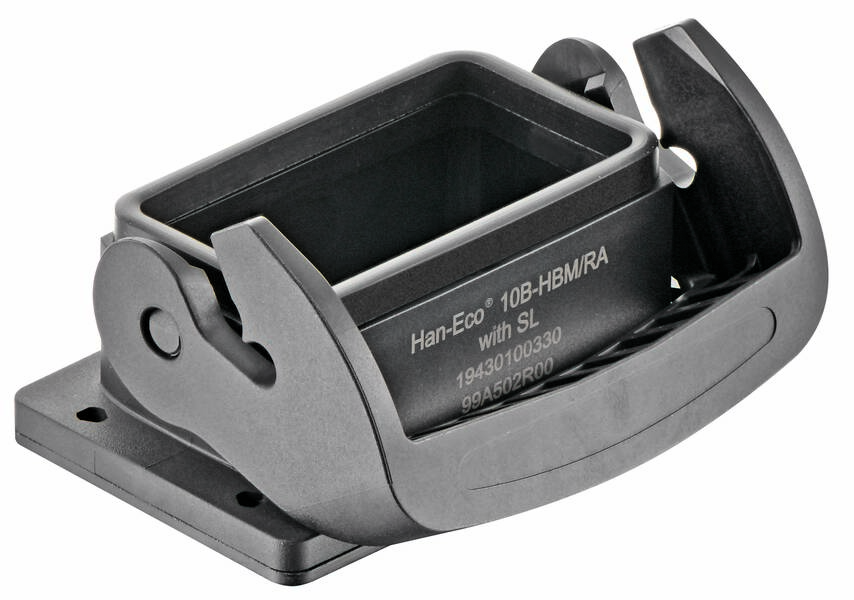

Enclosure extension 19 43 010 0330 19430100330 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure extension
Series
Han® B
Case material
Polyamide
Type
19 43 010 0330
Manufacturer part #
19430100330
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Material flammability class acc. To UL 94: V-0
- Standards: IEC 61984; EN 45545-2 Fire protection in rail vehicles
- Net weight: 87 g
- Note: Holder frame 19 43 010 0001 please order separately.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Material locking: Polyamide (PA);glass fiber reinforced
- Protection class according to IEC 60529 IP66
- Housing description: Without retaining frame
- Design size 10 B
- Casing type: Attachment casing
- Housing series: Han-Eco® B.
- Material housing: Polyamide (PA);glass fiber reinforced
- Colour of housing: RAL 9005 (jet black)
- Material sealing: NBR
- Colour of seal RAL 9005 (jet black)
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Lock color: RAL 9005 (jet black)
- Material flammability class to UL 94 (locking bar): V-0
- Number of relocks: ≥ 500
- Type
19 43 010 0330
- Product type
Enclosure extension
- Series
Han® B
- Manufacturer part #
19430100330
- Features
Longitudinal brace
- Case material
Polyamide
- Mating cycles
≥ 500
- Series
Han-Eco® B
- Content
1 pc(s)
IP66
- Max. temperature
+125 °C
- Min. temperature
-40 °C
TRUE
FALSE
Black
Single locking lever
FALSE
FALSE
Plastic
Other
-40-125 °C
V0
FALSE
TRUE
Housing extension
IP66
Other
Base unit
None
Documents & Downloads
Datasheet
Datasheet 3001621 Enclosure extension 19 43 010 0330 19430100330 HARTING 1 pc(s)
Datasheet 3001621 Enclosure extension 19 43 010 0330 19430100330 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001621 Enclosure extension 19 43 010 0330 19430100330 HARTING 1 pc(s)
Description
Mounting casing, without holding frame, size: 10 B, longitudinal rail, polyamide (PA), Glass-fiber reinforced, housing material: polyamide (PA), glass-fiber reinforced
