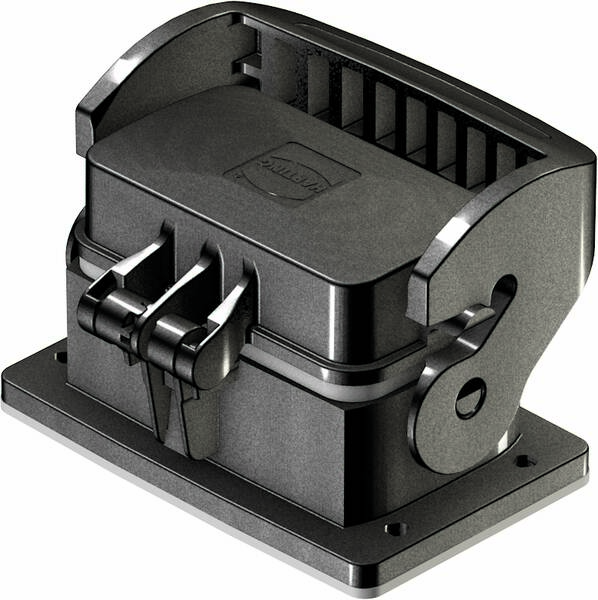

Enclosure extension 19 43 210 0341 19432100341 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure extension
Series
Han® 10B
Case material
Polyamide
Type
19 43 210 0341
Manufacturer part #
19432100341
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Material flammability class acc. To UL 94: V-0
- Standards: IEC 61984; EN 45545-2 Fire protection in rail vehicles
- Net weight: 144 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Material locking: Polyamide (PA);glass fiber reinforced
- Protection class according to IEC 60529 IP66
- Housing description: With plastic cap
- Design size 10 B
- Casing type: Attachment casing
- Housing series: Han-Eco® B.
- Material housing: Polyamide (PA);glass fiber reinforced
- Colour of housing: RAL 9005 (jet black)
- Material seal: FPM
- Colour of seal RAL 7001 (silver gray)
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Lock color: RAL 9005 (jet black)
- Material flammability class to UL 94 (locking bar): V-0
- Number of relocks: ≥ 500
- Type
19 43 210 0341
- Product type
Enclosure extension
- Series
Han® 10B
- Manufacturer part #
19432100341
- Features
Longitudinal brace
- Case material
Polyamide
- Series
Han-Eco® B
- Content
1 pc(s)
IP66
- Max. temperature
+125 °C
- Min. temperature
-40 °C
TRUE
TRUE
Black
Single locking lever
FALSE
FALSE
Plastic
Other
-40-125 °C
V0
FALSE
TRUE
Housing extension
IP66
Other
Base unit
None
Documents & Downloads
Datasheet
Datasheet 3001574 Enclosure extension 19 43 210 0341 19432100341 HARTING 1 pc(s)
Datasheet 3001574 Enclosure extension 19 43 210 0341 19432100341 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001574 Enclosure extension 19 43 210 0341 19432100341 HARTING 1 pc(s)
Description
Extension housing, with plastic cap, size: 10 B, longitudinal rail, polyamide (PA), Glass-fiber reinforced, housing material: polyamide (PA), glass-fiber reinforced
This text is machine translated.
This text is machine translated.
