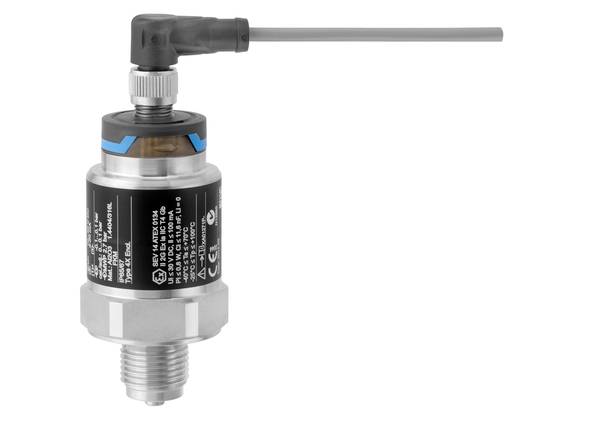

Endress+Hauser PMC21 Pressure transducer -1.0 - 25.0 bar
EAN:
Part number:
Item no:
Number
Total (€ 284.87 / piece)
€ 284.87
plus VAT.
Highlights & Details
Pressure transmitter Cerabar PMC11/21,O/PMP11/21/23 PMC21-AA1U1RBBJA 4-20mA solenoid connector ISO4400 M16, IP65 NEMA type 4X Encl. 25bar/2.5MPa/375psi relative
- Approval: Ex-free range
- Output 4 to 20 mA
- Electrical connection: ISO4400 M16 solenoid connector, IP65 NEMA type 4X Encl.
- Sensor range: 25bar/2.5MPa/375psi relative, overload:60bar/6MPa/900psi
- Calibration; unit: Sensor range; mbar/bar
- Process connection: Thread ISO228 G1/2 EN837, 316L
- Seal: FKM
Technical specifications
- Output
4-20 mA
- Media temperature (range)
-20.0 up to 100.0 °C
- Type
PMC21
- Manufacturer part #
PMC21-AA1U1RBWBJA
- Air pressure reading range (max.)
25.0 bar
- Air pressure reading range (min.)
-1.0 bar
- Max. media temperature
100.0 °C
- Media temperature (min.)
-20.0 °C
- Product type
Pressure transducer
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988869 Endress+Hauser PMC21 Pressure transducer -1.0 - 25.0 bar
User & Safety Instructions 2988869 Endress+Hauser PMC21 Pressure transducer -1.0 - 25.0 bar
Description
The Cerabar PMC21 is a very compact pressure transmitter with capacitive, oil-free ceramic sensor that can measure absolute or overpressure from 100mbar to 40bar (depending on configuration) in gases, vapors, liquids and dust. It is designed for the harsh conditions in the process industry and has a degree of protection up to IP68, a highly abrasion-resistant ceraphire membrane as well as a high-quality 316L housing. It can be used in most areas as it has different certifications, e.g. for hazardous areas or for shipping.
This text is machine translated.
This text is machine translated.
Features
- Easy to operate
- High performance
- Long-term stability
- High material quality
