Name: Endress+Hauser PMC21 Pressure transducer -1.0 - 25.0 bar
Brand: Endress+Hauser
SKU: 2988878
Availability: BackOrder

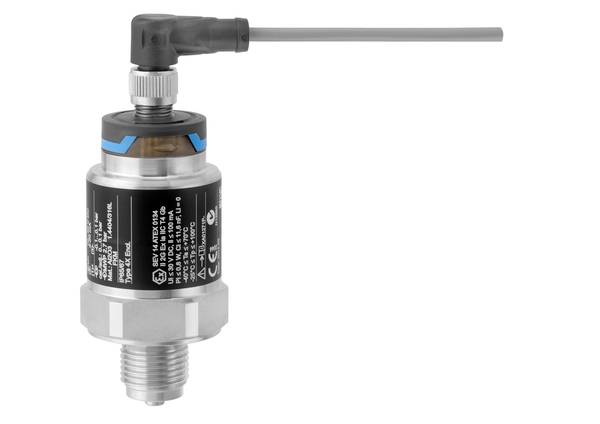

A pressure sensor with screw connection and electrical interface, primarily used for measuring pressure in industrial applications.

Product type

Pressure transducer

Output

4-20 mA

Media temperature (range)

-20.0 up to 100.0 °C

Type

PMC21

Manufacturer part #

PMC21-BC1M1RBWBJA

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 359.00 / piece)

€ 359.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pressure transmitter Cerabar PMC11/21,O/PMP11/21/23 PMC21-BC1M1RBBJA 4-20mA plug M12, IP65/67 NEMA type 4X ENCL. 25bar/2.5MPa/375psi relative, overload

Approval: ATEX II 3G Ex ec IIC T4 GC
Output 4 to 20 mA
Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
Sensor range: 25bar/2.5MPa/375psi relative, overload:60bar/6MPa/900psi
Calibration; unit: Sensor range; mbar/bar
Process connection: Thread ISO228 G1/2 EN837, 316L
Seal: FKM

Technical specifications

Product type: Pressure transducer

Output: 4-20 mA

Media temperature (range): -20.0 up to 100.0 °C

Type: PMC21

Manufacturer part #: PMC21-BC1M1RBWBJA

Max. media temperature: 100.0 °C

Media temperature (min.): -20.0 °C

Air pressure reading range (max.): 25.0 bar

Air pressure reading range (min.): -1.0 bar

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2988878 Endress+Hauser PMC21 Pressure transducer -1.0 - 25.0 bar

Description

The Cerabar PMC21 is a very compact pressure transmitter with capacitive, oil-free ceramic sensor that can measure absolute or overpressure from 100mbar to 40bar (depending on configuration) in gases, vapors, liquids and dust. It is designed for the harsh conditions in the process industry and has a degree of protection up to IP68, a highly abrasion-resistant ceraphire membrane as well as a high-quality 316L housing. It can be used in most areas as it has different certifications, e.g. for hazardous areas or for shipping.
