Name: Endress+Hauser PTP31B Pushbutton 0.0 - 400.0 bar 10 - 30 V DC
Brand: Endress+Hauser
SKU: 2989085
Availability: BackOrder

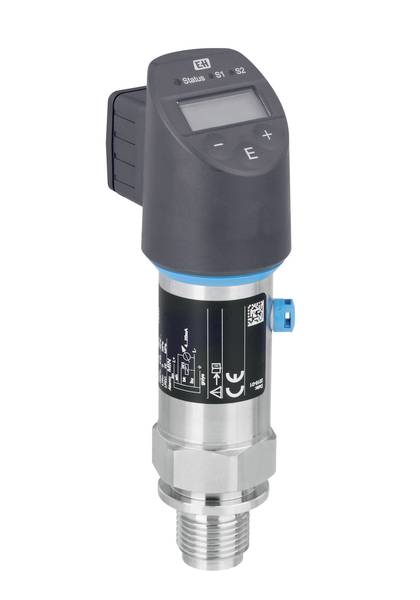

A digital pressure sensor with display, buttons and connection thread, suitable for monitoring and controlling pressure in industrial applications.

Product type

Pushbutton

Output

4-20 mA

Media temperature (range)

-40.0 up to 100.0 °C

Type

PTP31B

Manufacturer part #

PTP31B-AA7M2WGBWJJ

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 469.00 / piece)

€ 469.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pressure switch Ceraphant PTC31B, PTP31B/33B PTP31B-AA7M2WGBWJJ 400bar/40MPa/6000psi ABS, Overload: 600bar/60MPa/9000psi PNP + 4-20mA, IO-Link, 4-wire

Approval: Ex-free range
Output: PNP + 4-20mA, IO-Link, 4-wire
Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
Sensor range: 400bar/40MPa/6000psi ABS, overload:600bar/60MPa/9000psi
Reference accuracy: Standard 0.5%
Calibration; unit: Sensor range; mbar/bar
Process connection: Thread ISO228 G1/2 DIN3852, form E,316L, flush-mounted

Technical specifications

Product type: Pushbutton

Output: 4-20 mA

Media temperature (range): -40.0 up to 100.0 °C

Type: PTP31B

Manufacturer part #: PTP31B-AA7M2WGBWJJ

Operating voltage: 10 - 30 V DC

Max. operating voltage: 30 V DC

Min. operating voltage: 10 V DC

Max. media temperature: 100.0 °C

Media temperature (min.): -40.0 °C

Air pressure reading range (max.): 400.0 bar

Air pressure reading range (min.): 0.0 bar

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2989085 Endress+Hauser PTP31B Pushbutton 0.0 - 400.0 bar 10 - 30 V DC

Description

The Ceraphant PTP31B is a pressure switch with piezo-resistive sensor for the safe measurement and monitoring of absolute and over pressure. The pressure switch in a compact design is extremely stable and overload protected up to +400 bar. The IO-Link capability enables simple integration and parameterization of the device.

This text is machine translated.

Features

no problem
And information on site thanks to LEDs and digital display
IO-Link reduces costs and complexity through simple configuration and flexible integration into all fieldbus systems.

Description

Features

no problem
And information on site thanks to LEDs and digital display
IO-Link reduces costs and complexity through simple configuration and flexible integration into all fieldbus systems.
