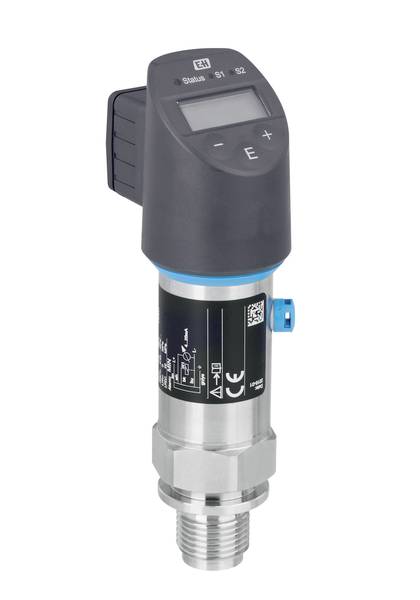

Endress+Hauser PTP31B Pushbutton -1.0 - 10.0 bar 10 - 30 V DC
Product type
Pushbutton
Output
4-20 mA
Media temperature (range)
-40.0 up to 100.0 °C
Type
PTP31B
Manufacturer part #
PTP31B-AA7M1PGAWTJ
EAN:
Part number:
Item no:
Number
Total (€ 469.00 / piece)
€ 469.00
incl. VAT
14-day return policy included
Highlights & Details
Pressure switch Ceraphant PTC31B, PTP31B/33B PTP31B-AA7M1PGAWTJ 10bar/1MPa/150psi relative, overload: 40bar/4MPa/600psi PNP + 4-20mA, IO-Link, 4-wire S
- Approval: Ex-free range
- Output: PNP + 4-20mA, IO-Link, 4-wire
- Electrical connection: Connector M12, IP65/67 NEMA type 4X Encl.
- Sensor range: 10bar/1MPa/150psi relative, overload:40bar/4MPa/600psi
- Reference accuracy: Standard 0.5%
- Calibration; unit: Sensor range; %
- Process connection: Thread ISO228 G1/4 EN837, 316L
Technical specifications
- Product type
Pushbutton
- Output
4-20 mA
- Media temperature (range)
-40.0 up to 100.0 °C
- Type
PTP31B
- Manufacturer part #
PTP31B-AA7M1PGAWTJ
- Operating voltage
10 - 30 V DC
- Max. operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. media temperature
100.0 °C
- Media temperature (min.)
-40.0 °C
- Air pressure reading range (max.)
10.0 bar
- Air pressure reading range (min.)
-1.0 bar
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2989091 Endress+Hauser PTP31B Pushbutton -1.0 - 10.0 bar 10 - 30 V DC
User & Safety Instructions 2989091 Endress+Hauser PTP31B Pushbutton -1.0 - 10.0 bar 10 - 30 V DC
Description
The Ceraphant PTP31B is a pressure switch with piezo-resistive sensor for the safe measurement and monitoring of absolute and over pressure. The pressure switch in a compact design is extremely stable and overload protected up to +400 bar. The IO-Link capability enables simple integration and parameterization of the device.
This text is machine translated.
This text is machine translated.
Features
- no problem
- And information on site thanks to LEDs and digital display
- IO-Link reduces costs and complexity through simple configuration and flexible integration into all fieldbus systems.
