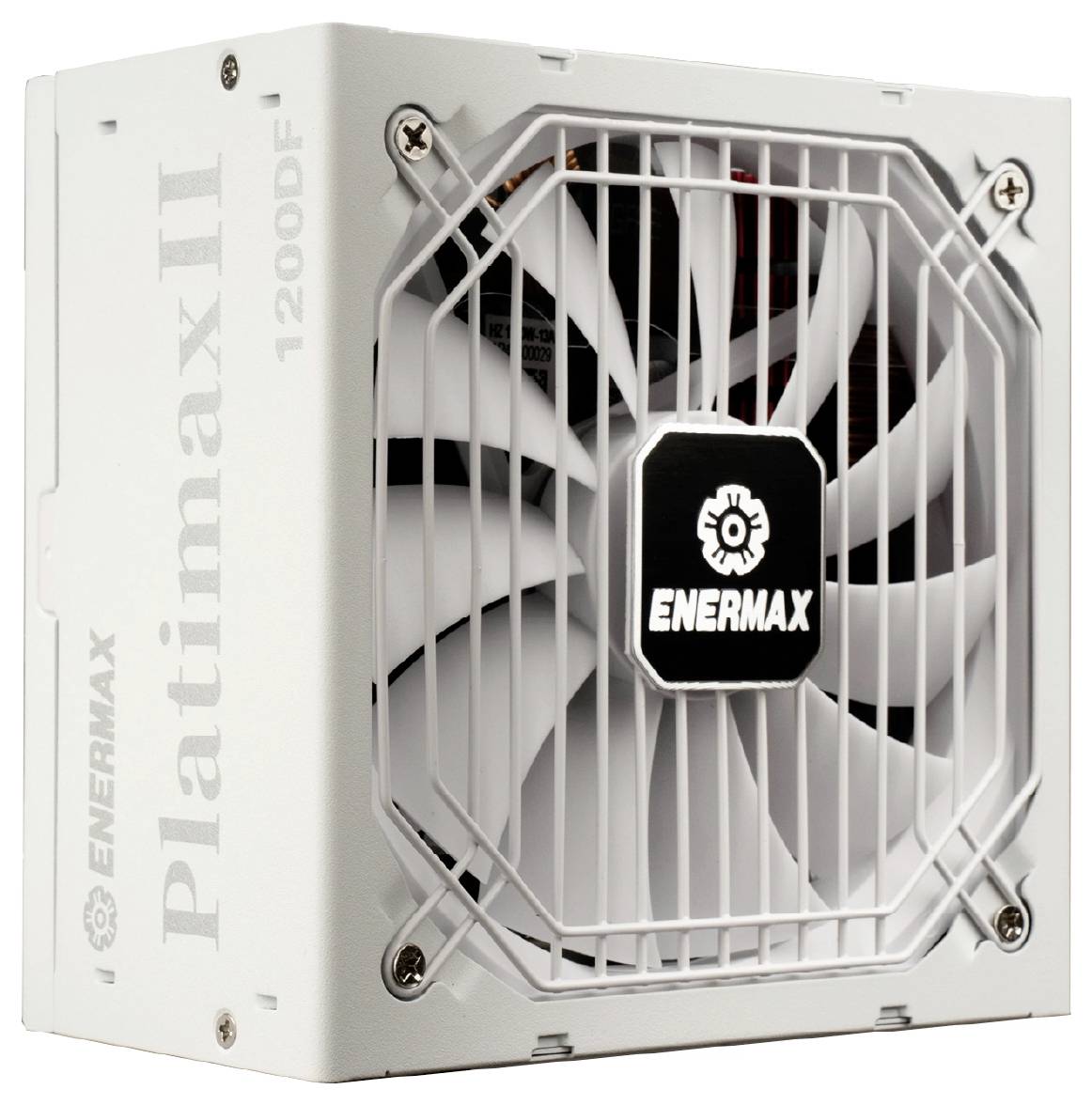

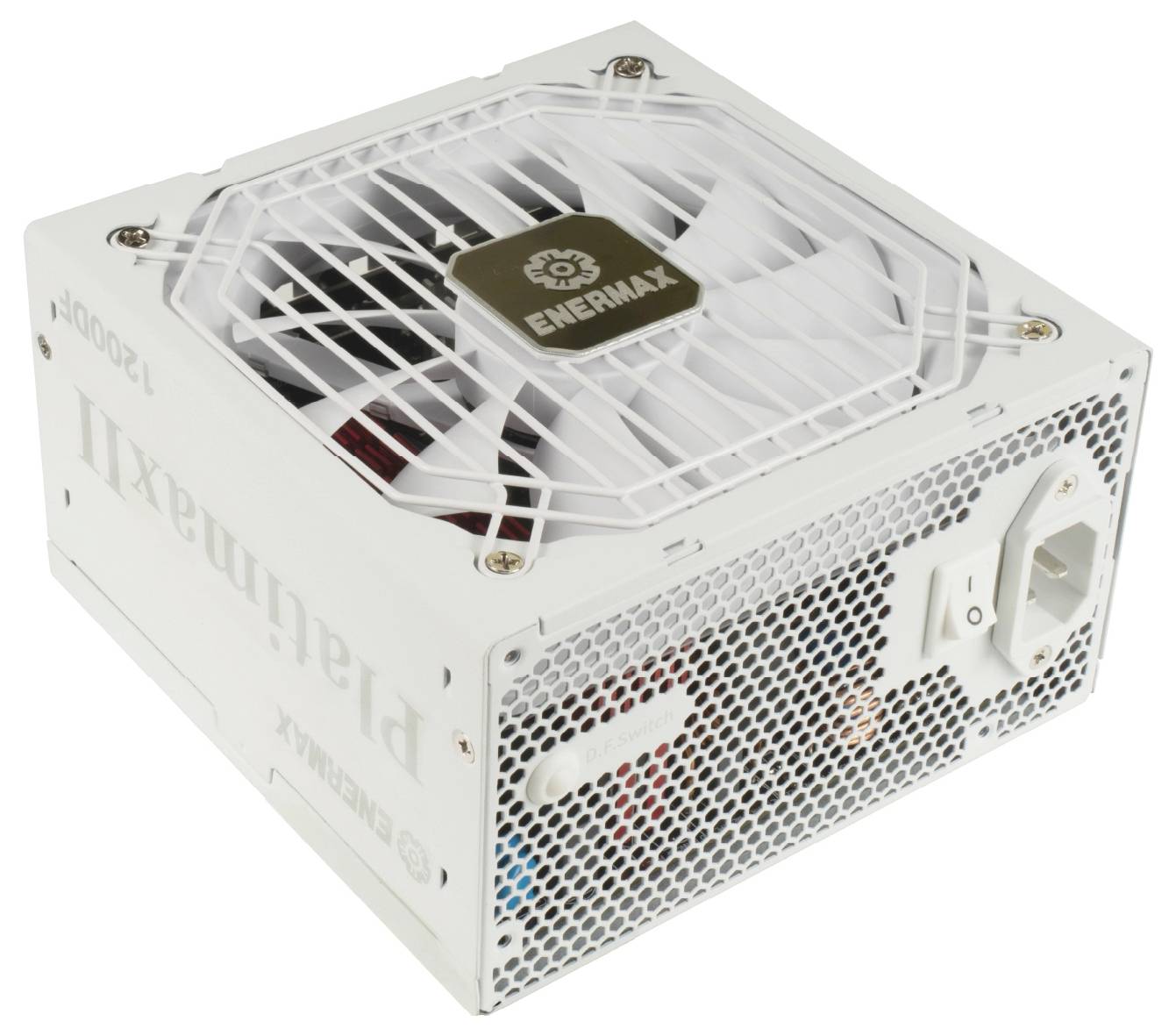

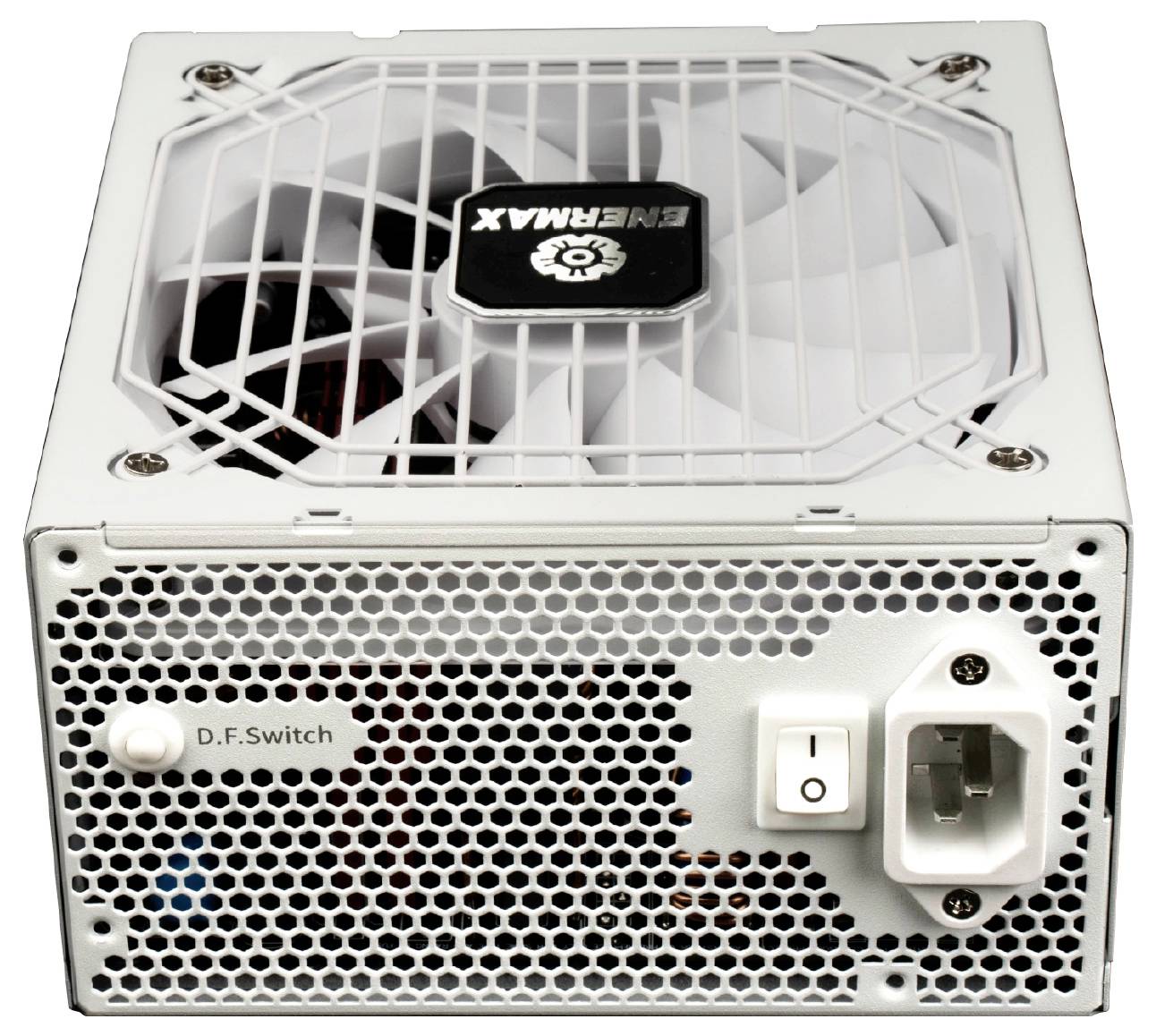

Enermax Enermax Power Supply 1200W Platimax2 80+ Power supply unit 1200 W ATX
Product type
Power supply unit
PSU output power
1200 W
Form factor
ATX
Factory colour
White
Dim
(W x H x D) 150 x 150 x 86 mm
EAN:
Part number:
Item no:
Highlights & Details
Enermax Enermax Power Supply 1200W Platimax2 80+ Power supply unit
- Power supply unit output 1200 W
- PCI-Express (6+2-Pin) 3x

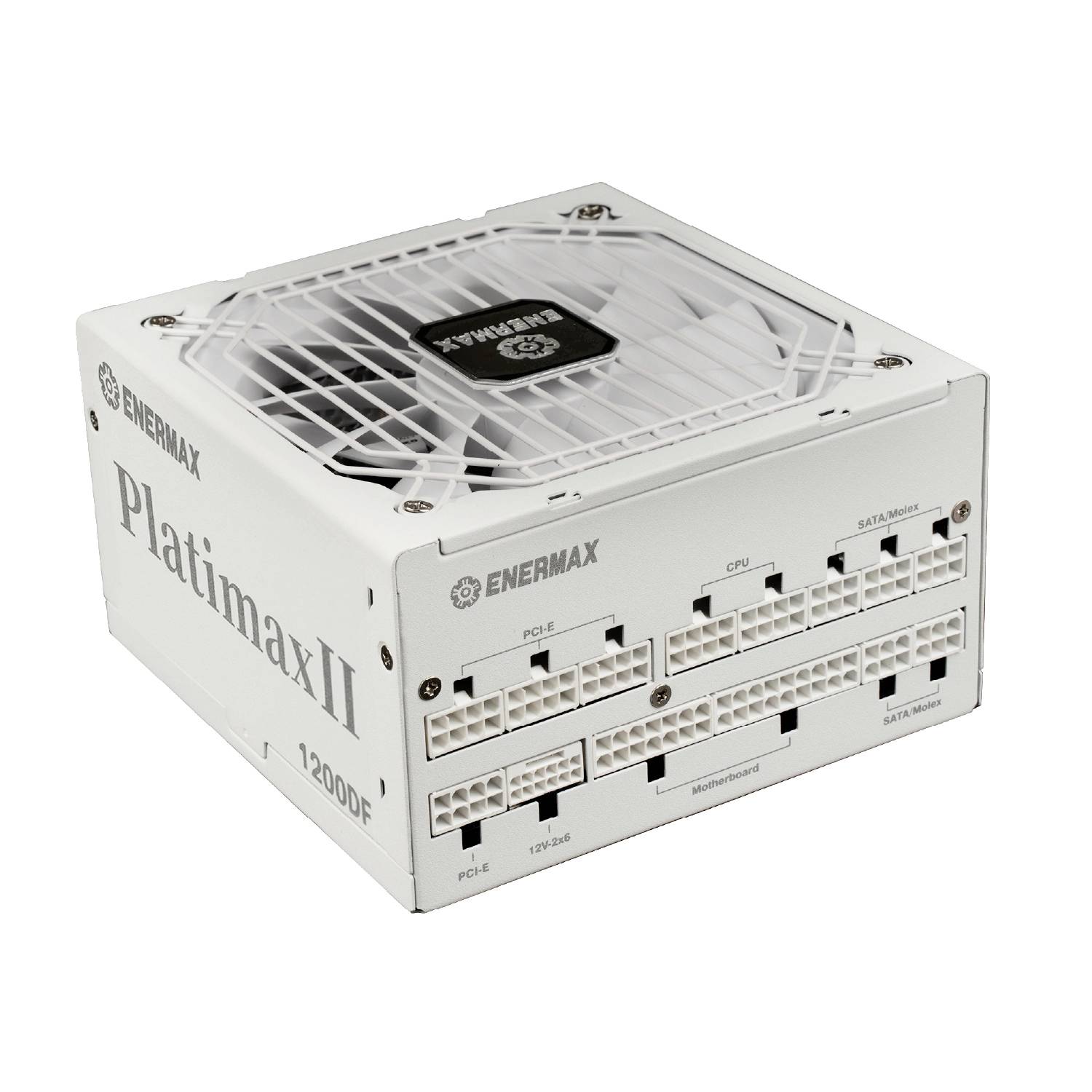

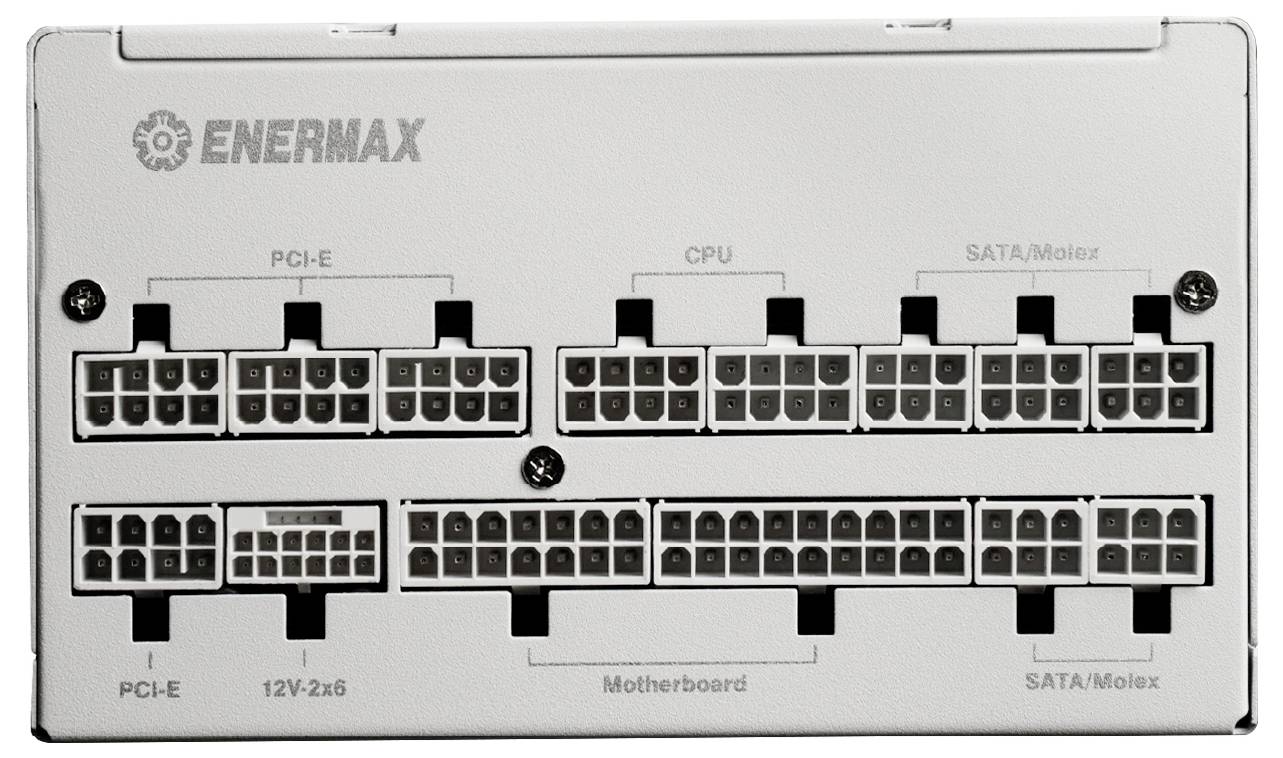

- Cable management
Technical specifications
- 80 Plus Certification 80 PLUS Gold

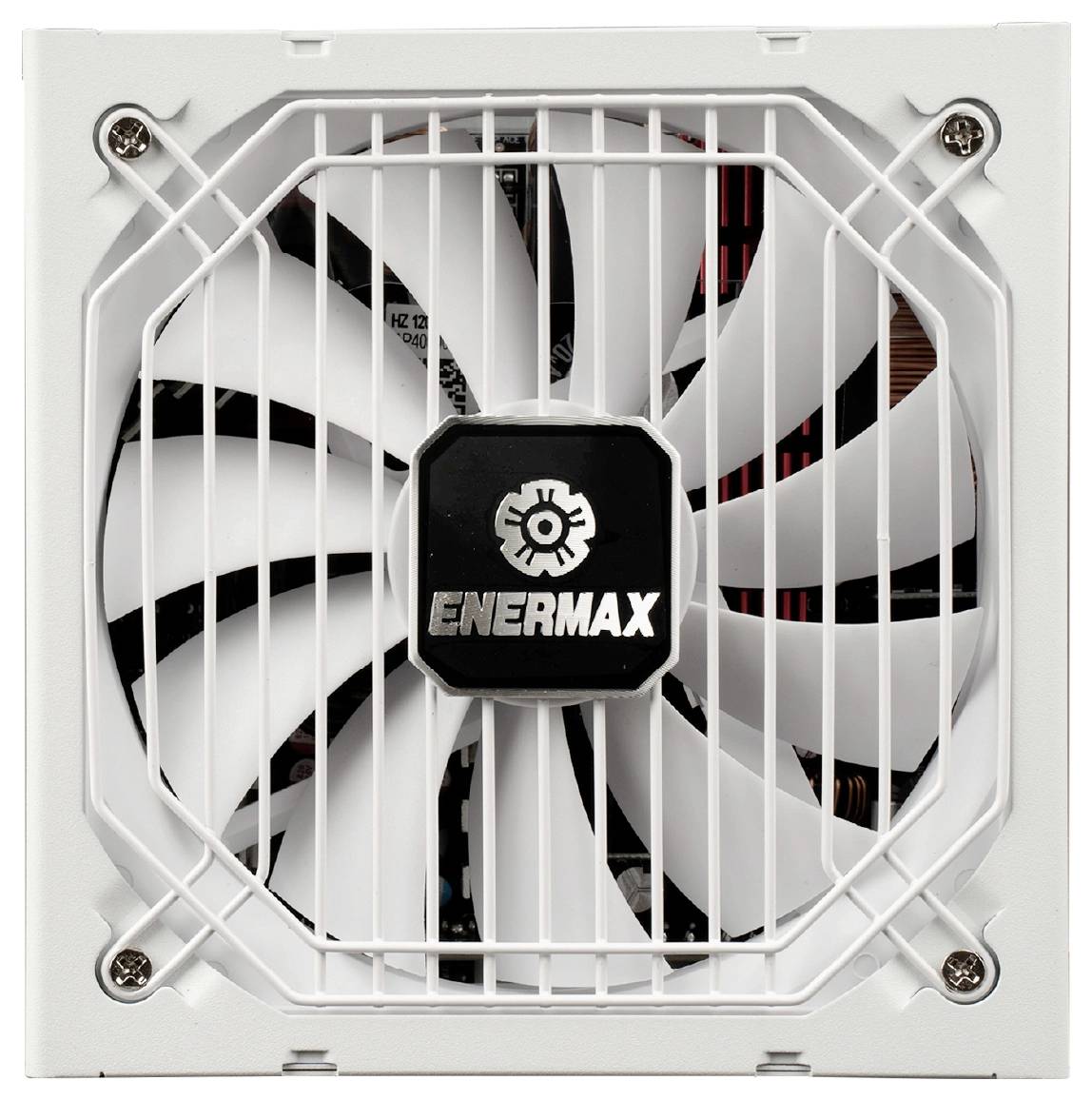

- Fan diameter 13.5 cm
- Product type
Power supply unit
- PSU output power
1200 W
- Form factor
ATX
- Factory colour
White
- Dim
(W x H x D) 150 x 150 x 86 mm
- Depth
86 mm
- Height
150 mm
- Width
150 mm
- -12V / DC
0.4 A
- +12 V/DC (1)
100 A
- 5 V DC
10 A
- +5V / DC SB
3 A
- 4-pin Molex
4
- 6-pin PCIe
3
- 5-pin SATA
8
- Power rating
751 W -
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- UKCA
yes
- Master (outer) case length
345 mm
- Master (outer) case net weight
20.7 kg
- Motherboard power cable length
60 cm
- CPU power cable length
70 cm
- PCI Express power cable length
60 cm
- Master (outer) case height
290 mm
- Master (outer) case width
605 mm
- ATX power connector (12+4 pin)
yes
- PCI Express power connectors (12+4 pin)
1
2
- Mean time between failures (MTBF)
100000 h
- Efficiency
92 %

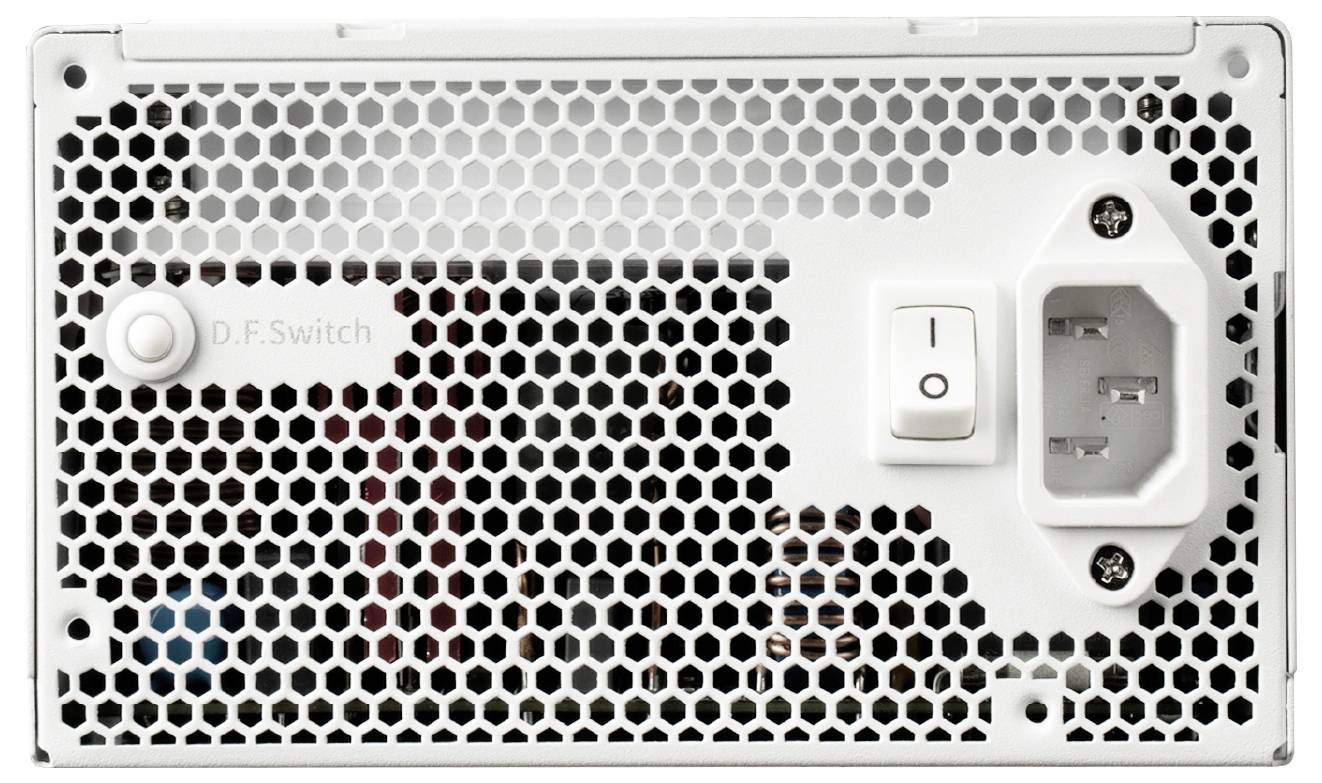

- On/off switch
yes
- CPU power connector (4+4 pin)
yes
- Package weight
3.19 kg
- Combined power (+3.3V)
100 W
- Combined power (+12V)
1200 W
- Combined power (+5V)
100 W
- Combined power (-12V)
4.8 W
- Combined power (+5Vsb)
15 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730203 Enermax Enermax Power Supply 1200W Platimax2 80+ Power supply unit 1200 W ATX
Description
Features
- Complies with Intel ATX 3.1 standard
- 80 PLUS and CYBENETICS Platinum certified
- Native 12V-2x6 cable provides the GPU with 600W power
- 100% Japanese capacitors in industrial quality
- Long life with the patented Dust-Free Rotation technology
- Semi-fanless control of up to 60% in zero-RPM mode
