Name: Ergotron 45-304-026 TV wall mount 76,2 cm (30") - 152,4 cm (60") Tiltable, Swivelling, Swivelling, Height-adjustable, Re
Brand: Ergotron
SKU: 1012478

A flat-screen television is mounted on an adjustable wall bracket that allows movement and tilting.

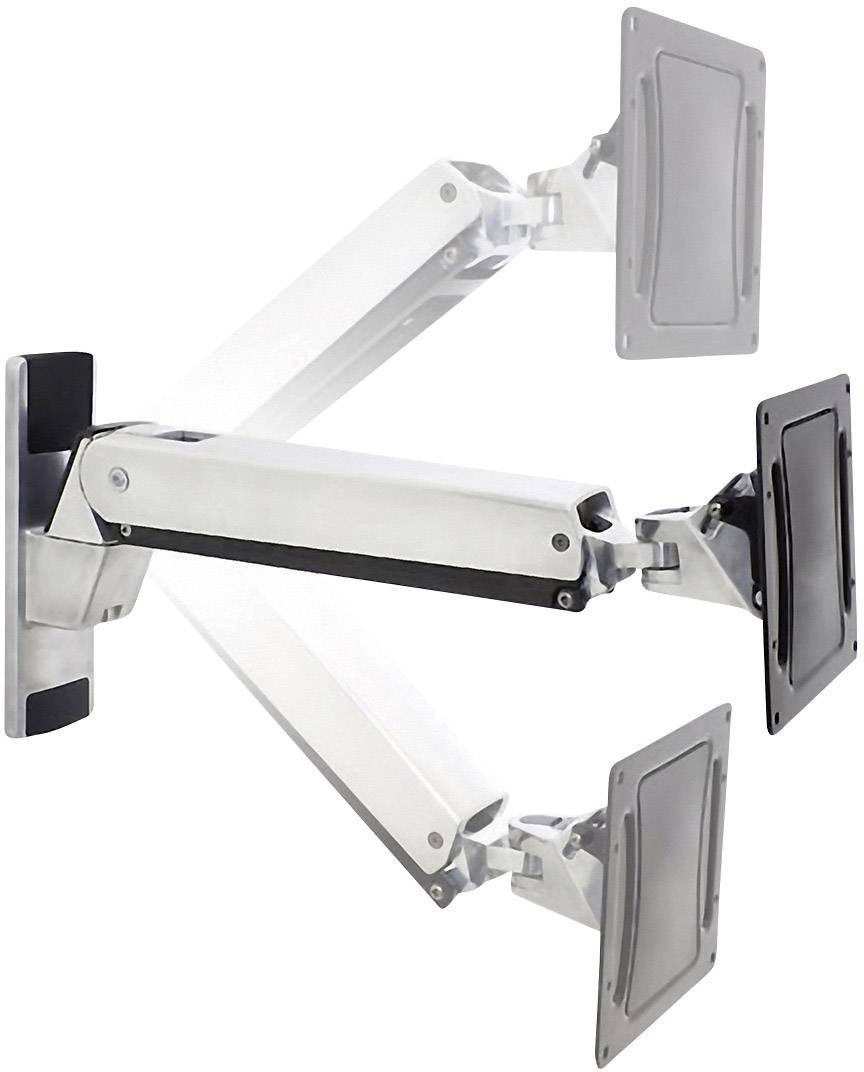

Monitor mount with triple-articulating arm. Shown in three positions: wall-mounted, half-extended, fully extended.

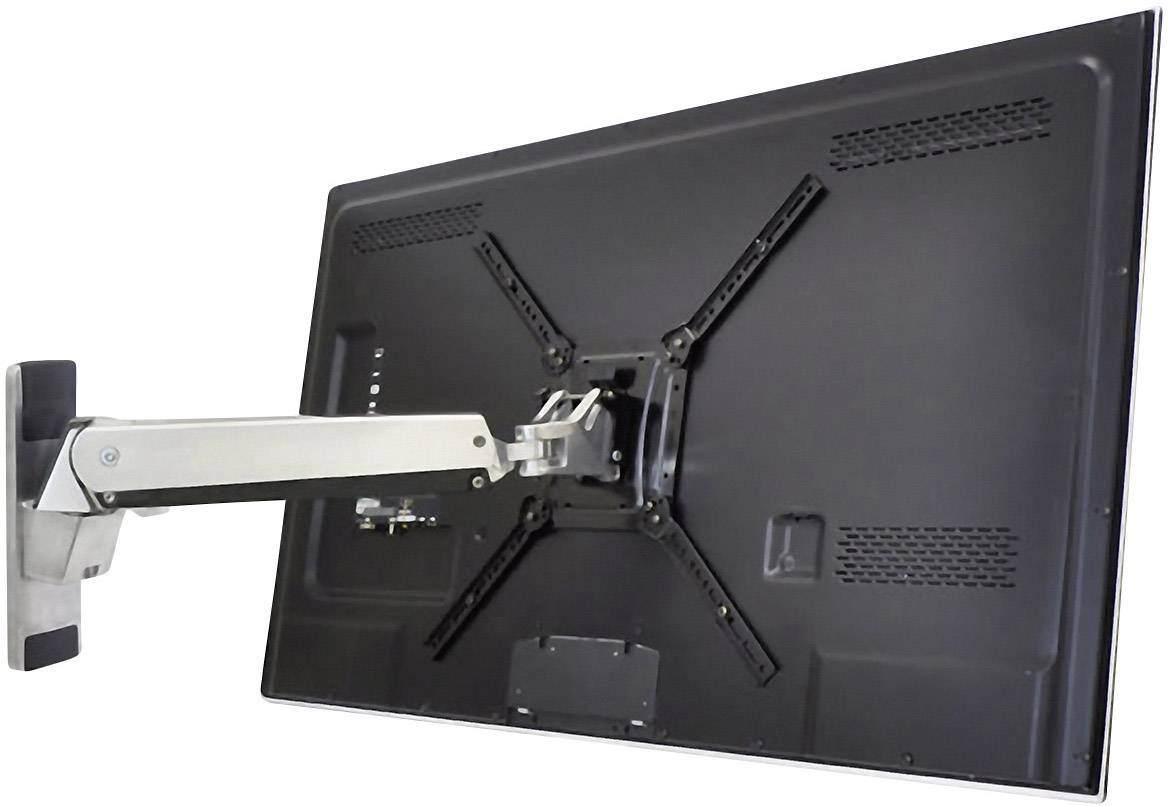

Flat screen viewed from behind on an adjustable wall mount.

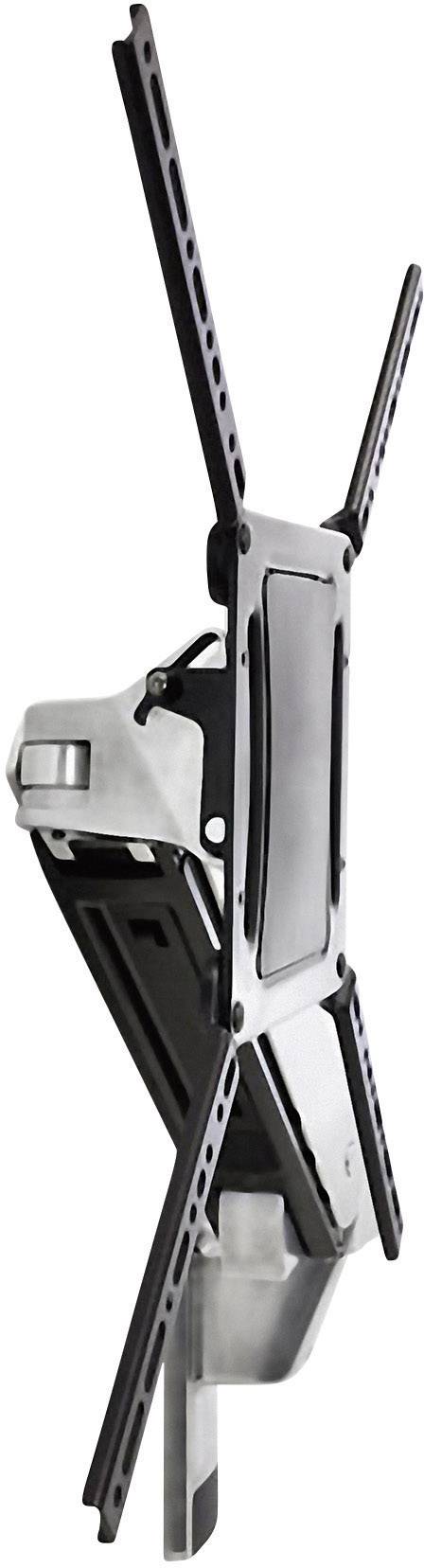

A black TV wall mount with a tilting arm in side view, suitable for large flat-screen televisions, demonstrates flexibility and stability.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Interactive Arm, VHD

Holder type: Tiltable, Swivelling, Swivelling, Height-adjustable, Retractable
Supports VESA standards up to
Suitable for displays sized (range): 76,2 cm (30") - 152,4 cm (60")
Load capacity (max.) 31.8 kg

Technical specifications

Tilt angle: 0 - 20
Pan range: 0 - 180
Maximum weight (capacity): 31.8
Maximum screen size compatibility: 60
Minimum screen size compatibility: 30
VESA mounting interfaces compatibility: 200 x 100, 400 x 200, 600 x 200
Rotation: 10
Material: Aluminium
Source data-sheet: Icecat.biz
Weight: 14300
Depth: 330
Width: 775
Height: 200

Product type: TV wall mount

Suitable for: 76,2 cm (30")
78,7 cm (31")
81,3 cm (32")
83,8 cm (33")
86,4 cm (34")
88,9 cm (35")
91,4 cm (36")
94,0 cm (37")
99,1 cm (39")
96,5 cm (38")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
139,7 cm (55")
142,2 cm (56")
144,8 cm (57")
147,3 cm (58")
149,9 cm (59")
152,4 cm (60")
Show more

Suitable for: 76,2 cm (30") - 152,4 cm (60")

Holder type: Tiltable
Swivelling
Swivelling
Height-adjustable
Retractable

Features: Constant force technology

Max. load capacity: 31.8 kg

: No

: 200 x 100 mm
400 x 200 mm
600 x 200 mm
300 x 300 mm

Rotation: 10°

Tilt range (bottom): -10°

Tilt range (top): +10°

Swivel range (left): 90°

Swivel range (right): 90°

Distance to wall (min.): 14 cm

Distance to wall (max.): 61 cm

Factory colour: Aluminium (polished)

Weight: 0

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1012478 Ergotron 45-304-026 TV wall mount 76,2 cm (30") - 152,4 cm (60") Tiltable, Swivelling, Swivelling, Height-adjustable, Re

Description

- Patented Constant Force technology enables light-touch adjustments - Extends 28" (71 cm) from wall when in use and can be fully retracted to 6.5" (17 cm) when not in use - The revolutionary design allows interaction with your TV by moving the screen to where you want it when watching movies, gaming, exercising and more - Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions - Gravity pivot enables tilting capabilities without the need of knobs or levers - Improves ergonomic viewing for TVs/displays mounted high on the wall - Constructed from polished aluminum and black trim for maximum strength and bold aesthetics - Tilt and pan for maximum viewing flexibility - Level the screen at any position with +/- 5º of post-installation rotation - Cable management clips on the underside of the arm route and hide wires - Easy to use: simple installation and effortless operation
