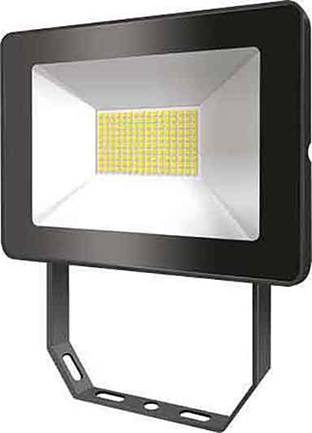

ESYLUX BASICOFLTR1000840BK EL10810916 LED outdoor floodlight 10 W Colours (LEDs): White
EAN:
Part number:
Item no:
Highlights & Details
ESYLUX LED spotlight 4000K black BASICOFLTR1000840BK
- Power= 10 W Total luminous flux= 1000 lm Colour temperature= 4000 K White
Technical specifications
- Connectable conductor cross-section: 1..2 mm²
- Connection type: Other
- Rated life L70/B10 at 25 °C: 55000 h
- Rated life L70/B50 at 25 °C: 55000 h
- Rated life L80/B10 at 25 °C: 40000 h.
- Rated life L80/B50 at 25 °C: 40000 h.
- Rated life L90/B10 at 25 °C: 25000 h
- Rated life L90/B50 at 25 °C: 25000 h
- Rated luminous flux according to IEC 62722-2-1: 1000 lm
- Rated ambient temperature according to IEC62722-2-1: -25..40 °C.
- Operating device: LED operating device current-controlled
- Screen workstation suitable according to EN 12464-1: no.
- With bulb: Yes
- Colour temperature: 4000 K
- Color rendering index CRI: 80-89
- Suitable for installation: Yes
- Suitable for ceiling mounting: no.
- Suitable for panel mounting: no.
- Suitable for wall mounting: Yes
- Luminous efficacy 100 lm/W.
- LED nominal current at constant current 43..47 mA
- Power factor: 1
- Conductor cross-section: 1 mm²
- Light output 100 lm/W
- Lamp: LED not replaceable
- Light emission: Direct
- Light splitter: Reflector
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Surface: Powder-coated
- Reflector: White
- Voltage type: AC
- Cover material: Transparent glass
- Product type
LED outdoor floodlight
- Operating voltage
240 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Bulb cannot be changed
- Rating per bulb
10 W
10 W
4000 K
- Colour
White
1000 lm
- Total luminous flux
1000 lm
- Light features
Swivelling
- Radiation angle
80°
- Protection class
I
IP65
- Factory colour
Black
- Material
Aluminium
- Dim
(L x W x H) 160 x 142 x 28 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Width
142 mm
- Height
28 mm
- Length
160 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295466 ESYLUX BASICOFLTR1000840BK EL10810916 LED outdoor floodlight 10 W Colours (LEDs): White
Description
The compact OFL BASIC spotlight is suitable for space-saving illumination of traffic routes, garages and squares or the lighting of facades and signs. LED spotlight with compact aluminum casing for inconspicuous mounting, white. 10 W light output with 4000 K light color (neutral white). Very good efficiency with 100 lm/W.
