ESYLUX EC10431265 Data interface EC10431265
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: no.
- KNX radio bus system: no.
- Bus system Radio bus: no.
- Bus system LON: no.
- Bus system Powernet: no.
- Other bus systems: None
- Bidirectional radio: no.
- Mounting type: Flush-mounted
- With theft/dismantling protection: no.
- With bus connection: Yes
- Number of actuation points: 8
- Number of keys: 8
- With LED display: Yes
- With label field: no.
- With display: no.
- Surface: Untreated
- Surface type: Matt
- RAL number (similar): 9003
- Transparent: no.
- With room thermostat: no.
- With infrared sensor: no.
- Min Depth of device socket: 8 mm
- Product type
Data interface
IP20
- Mounting type
Flush mount
- Factory colour
White
- Width
71 mm
- Height
21.5 mm
- Depth
71 mm
- Dim
(W x H x D) 71 x 21.5 x 71 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
64 g
- Similar RAL
9003
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963045 ESYLUX EC10431265 Data interface EC10431265
Description

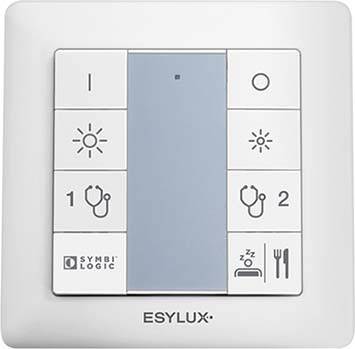

DALI 8-way button. Used to control light scenes and manually override< lights in patient rooms. Standard functions: On, off, dim. Four light scenes can be retrieved.
