ESYLUX EL10821240 EL10821240 LED bollard light LED (monochrome) w/o 7 W Anthracite
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ESYLUX ESYLUX LED-bollard light 840 DALI BWM ANTHR. ALVA BL #EL10821240
- Power= 7 W Total luminous flux= 460 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- With light sensor: Yes
- Type of light: Bollard light
- With motion detector: Yes
- With base plate: Yes
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Socket: Without
- Material of housing: Aluminium
- Material quality of the housing: Other
- Surface protection: Powder-coated
- Cover material: Plastic opal
- Voltage type AC
- Nominal voltage 200..240 V
- Rated LED current at constant current 200 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Light distributor: Diffuser lens/-optic/-panel
- Rated life L70/B50 at 25 °C: 110000 h
- Constant luminous flux regulation: No.
- Protection class (IP) IP65
- Impact strength: IK09
- Protection class: I
- Max. System power 7 W
- Light distribution: Symmetric
- Light emission: Direct
- Rated light current according to IEC 62722-2-1: 460 lm
- Light output 65 lm/W
- Radiation angle: Extremely wide radiation >80°
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set continuously
- Adjustable radiation angle: No.

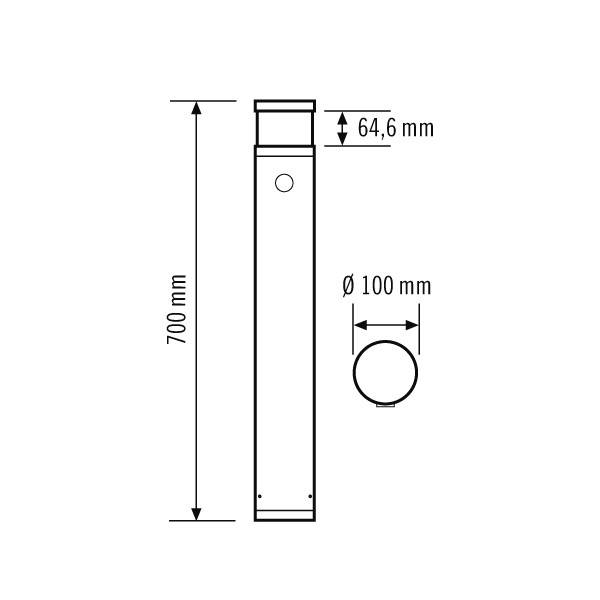

- Height/depth 700 mm
- Diameter 100 mm
- Type of wiring: Suitable for through-wiring
- Number of pins: 5
- Conductor cross-section: 2.5 mm²
- Connection type: Plug-in terminal
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED bollard light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
7 W
4000 K
- Colour
White
460 lm
- Total luminous flux
460 lm
- Light features
Incl. dimmer
- Protection class
I
IP65
- Factory colour
Anthracite
- Material
Aluminium
- Dim
(Ø x H) 100 mm x 700.00 mm
n.rel.
- Light bulb included
Yes
- Height
700.00 mm
- Depth
700 mm
- (Ø)
100 mm
- Rated luminous flux
460 lm
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3133506 ESYLUX EL10821240 EL10821240 LED bollard light LED (monochrome) w/o 7 W Anthracite
User & Safety Instructions
User & Safety Instructions 3133506 ESYLUX EL10821240 EL10821240 LED bollard light LED (monochrome) w/o 7 W Anthracite
Description
LED DALI polling light made of high quality aluminum. Dirt-repellent through powder coating with solder effect. Light head: Opalsatined. Light emission 360° Integrated EVG (DALI), installation without additional accessories. DALI interface for 2-pin DALI control line. High-quality casing, die-cast aluminum, powder-coated anthracite, similar to RAL 7024. DALI motion detector orientation light twilight switch setting options via infrared remote control (accessories) - parallel connection (Master / Master). Installation type: Mounting plate for screwing onto a foundation, optionally via floor anchor (accessories). Colour temperature 4000 K.
