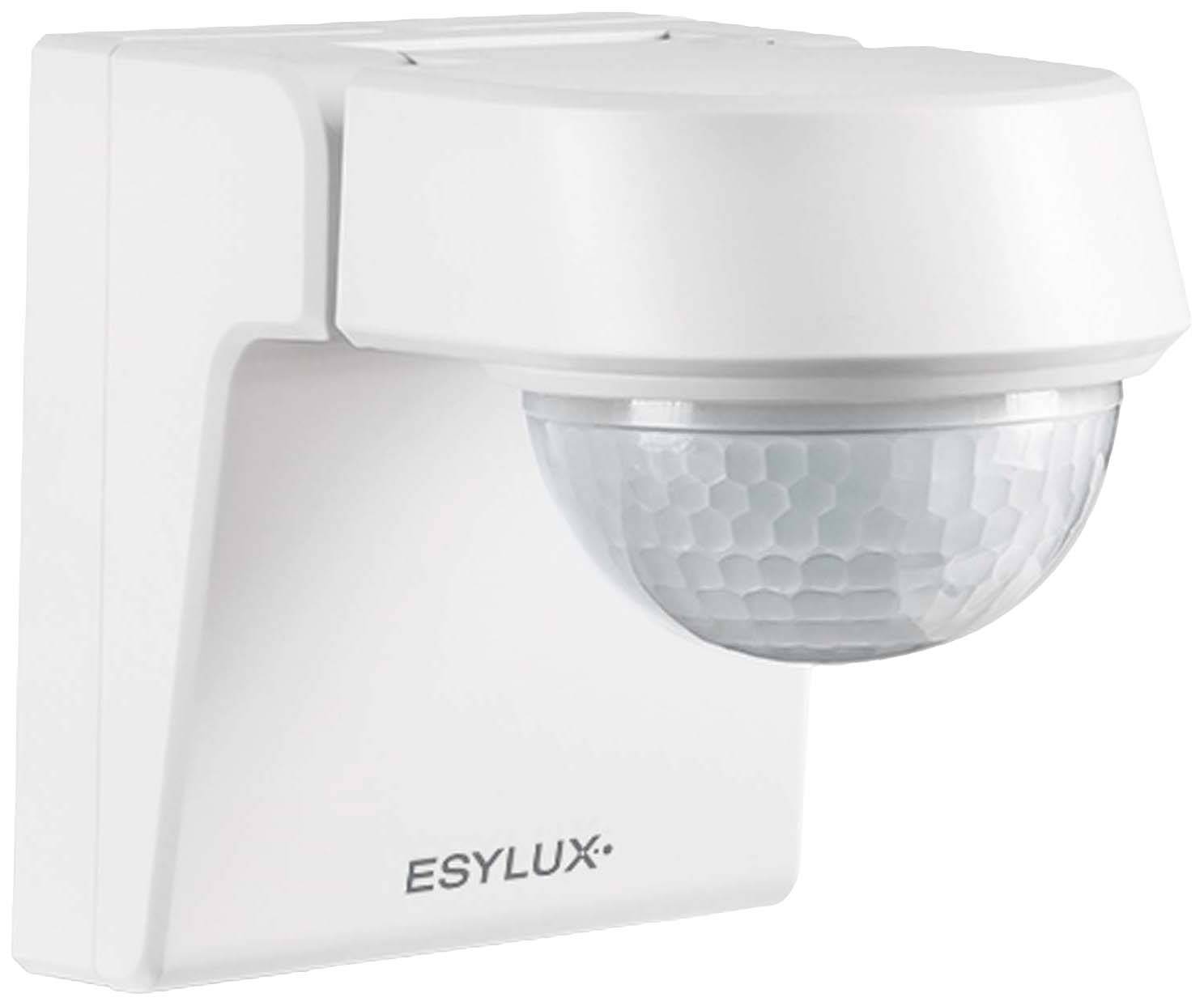

ESYLUX EM10025396 Ceiling, Wall, Surface-mount Motion detector 280 ° White IP55, IK07
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: Passive infraredLow-creep/back-field monitoring: YesOptimum mounting height: 3 m.Staircase monitoring: YesMax. Range frontal: 5 m.Detection area Diameter on floor: 40 m.Adjustable response sensitivity: YesAdjustable response brightness: YesTeach function for response brightness: YesConnection type: Screw terminalMaterial: PlasticMains frequency: 50/60 Hz.Switch-off delay: 180 s.Switch-on delay 60 s.Suitable for C load: YesMax. Inrush current 800 A.Extension: Yes
- Product type
Motion detector
- Detection angle
280°
20 m
- Mounting type
Ceiling
Wall
Surface-mount
- Operating voltage
240 V AC
- Switching capacity
2300 W
- Twilight settings
2 - 2000 lx
- Time settings
60 s - 240 min
- Factory colour
White
IP55
IK07
- Operating temperature
-25 °C - +50 °C
- Type
Mat

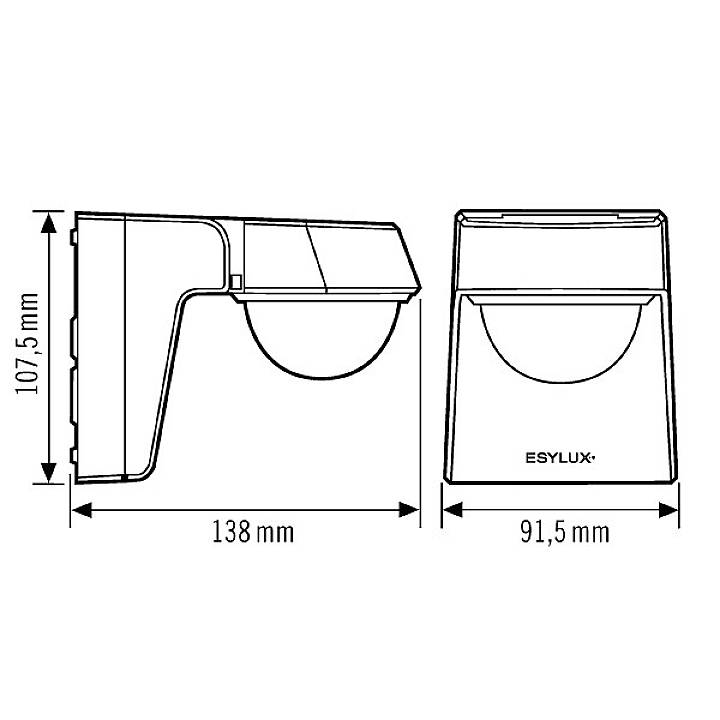

- Length
108 mm
- Width
92 mm
- Height
138 mm
- Dim
(L x W x H) 108 x 92 x 138 mm
- Weight
0
- UKCA
not relevant
