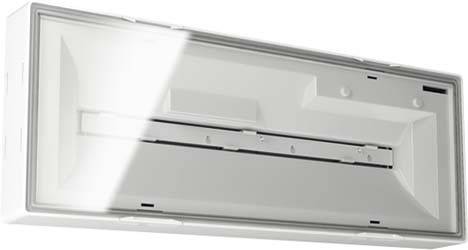

ESYLUX EN10077227 Escape route lighting EEC A (A - G)
EAN:
Part number:
Item no:
Technical specifications
- Dim
(L x W x H) 388 x 148 x 46 mm
- Product type
Escape route lighting
- Main battery supply
No
- Max. battery life
3 h
- Operating voltage
230 V AC
- Recess width
155 mm
- Recess length
430 mm
- Recess depth
66 mm
3.3 W
- Bulb type
LED (monochrome)
- Material
Plastic
- Number of pins
2
- Width
148 mm
- Height
46 mm
- Depth
388 mm
IP54
- Protection class
II
- Length
388 mm
148
2.5 mm²
2
388 m
46 mm
230-230 V
TRUE
4000-4000
3 W
186 lm
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965853 ESYLUX EN10077227 Escape route lighting EEC A (A - G)
Description
Single battery emergency light to escape route lighting with 3 hours emergency lighting duration. Self-monitoring with colored status display. Tamper-proof function control by remote control or magnetic remotely triggered. Operating either in continuous or ready for switching is possible. Plug-in terminal with Durchverdrahtungsfunktion. Permanent monitoring the charging process, automatic, weekly function test and semi-annual operating time test, display of the test results on color status display. Versatile mounting types through extensive accessories (not included). Nicd Rechargeable Battery with reverse polarity protection plug connection (inclusive). Housing made of UV-stabilised polycarbonate.
