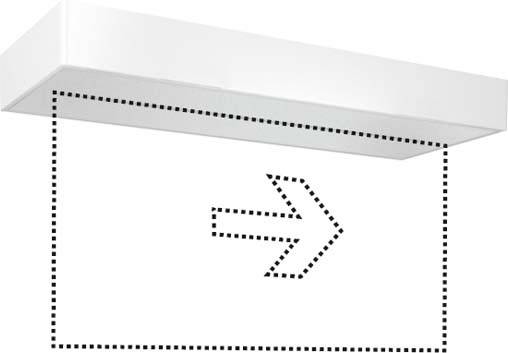

ESYLUX EN10077319 Escape route lighting Ceiling surface-mount Right, Left
EAN:
Part number:
Item no:
Technical specifications
- Dim
(L x W x H) 388 x 148 x 223 mm
- Product type
Escape route lighting
- Main battery supply
No
- Max. battery life
8 h
- Type
Right
Left
- Operating voltage
230 V AC
- Recess width
155 mm
- Recess length
430 mm
- Recess depth
66 mm
- Detection range
32 m
3.3 W
- Bulb type
LED (monochrome)
- Material
Plastic
- Mounting type
Ceiling surface-mount
- Number of pins
2
- Width
148 mm
- Height
223 mm
- Depth
388 mm
IP20
- Protection class
II
- Length
388 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964508 ESYLUX EN10077319 Escape route lighting Ceiling surface-mount Right, Left
Description
Single battery emergency light to escape route marking with 8 hours emergency lighting duration for detection range 32 m according to DIN EN 1838. Self-monitoring with colored status display. Tamper-proof function control by remote control or magnetic remotely triggered. Operating either in continuous or ready for switching is possible. Plug-in terminal with Durchverdrahtungsfunktion. Permanent monitoring the charging process, automatic, weekly function test and semi-annual operating time test, display of the test results on color status display. Versatile mounting types through extensive accessories (not included). Nicd Rechargeable Battery with reverse polarity protection plug connection (inclusive). Housing made of UV-stabilised polycarbonate.
This text is machine translated.
This text is machine translated.
Features
- Suitable for marking type=acrylic glass plate
- Type of identification=one-/two-sided
- With pictogram=yes
- Monitoring device=automatic self-test
- Switching mode=continuous switching/standby switching
- With remote switch connection=no.
- Infeed=decentralized (single battery)
- Battery condition=NiCd
- Illuminant=LED not replaceable
- With bulb=yes
- Suitable for number of bulbs=1
- Socket=other
- Number of lamp heads=1
- Material of the housing=plastic
- Housing color=white
- Cover material = transparent plastic
- light distributor=other
- Lamp with limited surface temperature "D-mark"=no.
- Rated ambient temperature according to IEC62722-2-1=5..35 °C.
- Color temperature=4000..4000 K
- Type of wiring=suitable for through-wiring
- Number of pins=2
- Conductor cross-section=1.5 mm²
- Connection type=plug connection.
