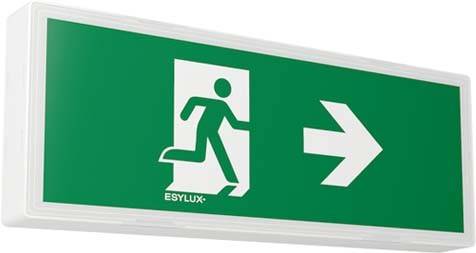

ESYLUX EN10077616 LED escape route lighting EEC A (A - G) Wall mount Right
EAN:
Part number:
Item no:
Technical specifications
- Dim
(L x W x H) 328 x 108 x 46 mm
- Product type
LED escape route lighting
- Main battery supply
No
- Max. battery life
8 h
- Type
Right
- Operating voltage
230 V AC
- Recess width
115 mm
- Recess length
370 mm
- Recess depth
66 mm
- Detection range
14 m
- Bulb type
LED (monochrome)
- Material
Plastic
- Mounting type
Wall mount
- Number of pins
2
- Width
108 mm
- Height
46 mm
- Depth
328 mm
IP54
- Protection class
II
- Length
328 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963149 ESYLUX EN10077616 LED escape route lighting EEC A (A - G) Wall mount Right
Description
Single battery emergency light to escape route marking with 8 hours emergency lighting duration for detection range 14 m according to DIN EN 1838. Self-monitoring with colored status display. Tamper-proof function control by remote control or magnetic remotely triggered. Operating either in continuous or ready for switching is possible. Plug-in terminal with Durchverdrahtungsfunktion. Permanent monitoring the charging process, automatic, weekly function test and semi-annual operating time test, display of the test results on color status display. Versatile mounting types through extensive accessories (not included). Nicd Rechargeable Battery with reverse polarity protection plug connection (inclusive). Housing made of UV-stabilised polycarbonate.
This text is machine translated.
This text is machine translated.
Features
- Suitable for identification type=sticker
- Type of identification=one-sided only
- With pictogram=yes
- Monitoring device=automatic self-test
- Switching mode=continuous switching/standby switching
- With remote switch connection=no.
- Infeed=decentralized (single battery)
- Battery condition=NiCd
- Illuminant=LED not replaceable
- With bulb=yes
- Suitable for number of bulbs=1
- Socket=other
- Number of lamp heads=1
- Material of the housing=plastic
- Housing color=white
- Material of the cover=plastic opal
- Light distributor=other
- Lamp with limited surface temperature "D-mark"=no.
- Rated ambient temperature according to IEC62722-2-1=5..35 °C.
- Max. System Performance=3.3 W.
- Color temperature=4000..4000 K
- Type of wiring=suitable for through-wiring
- Number of pins=2
- Conductor cross-section=1.5 mm²
- Connection type=plug connection.
