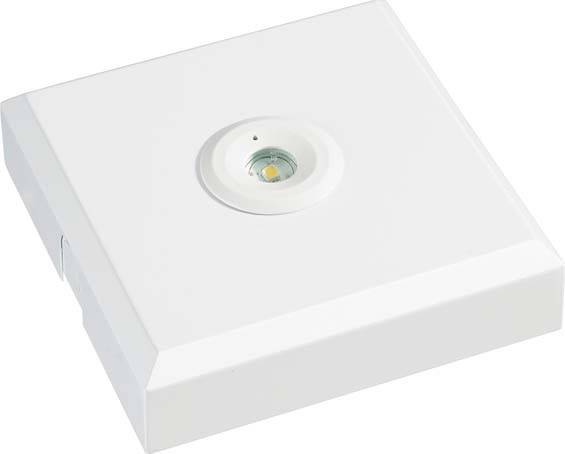

ESYLUX EN10080005 LED escape route lighting EEC A (A - G) Ceiling mount
EAN:
Part number:
Item no:
Technical specifications
- Dim
(L x W x H) 190 x 190 x 44 mm
- Product type
LED escape route lighting
- Main battery supply
No
- Max. battery life
3 h
- Operating voltage
230 V AC
4.3 W
- Bulb type
LED (monochrome)
- Material
Steel
- Mounting type
Ceiling mount
- Number of pins
6
- Width
190 mm
- Height
44 mm
- Depth
190 mm
IP20
- Protection class
I
- Length
190 mm
- Outside Ø
55 mm
190
2.5 mm²
6
190 m
44 mm
230-230 V
TRUE
4000-4500
4 W
155 lm
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960429 ESYLUX EN10080005 LED escape route lighting EEC A (A - G) Ceiling mount
Description
Single battery emergency lamp with 3 hours emergency lighting duration for wall mounting. Function control and self monitoring, permanent monitoring the charging process, automatic, weekly function test and annual operating time test, display of the test results through colored LEDs (green/red). Operating either in continuous or ready for switching is possible. Bottom light emission and optimized for lighting of corridors. Including NICD rechargeable battery with reverse polarity protection plug connection. Connection by means of a plug-in terminals (durchverdrahtbar). Housing made of UV-stabilised polycarbonate. Optional DALI can be networked.
This text is machine translated.
This text is machine translated.
Features
- Type of tag=not applicable
- With pictogram=no.
- Monitoring device=automatic self-test
- Switching mode=continuous switching/standby switching
- With remote switch connection=yes
- Infeed=decentralized (single battery)
- Battery condition=NiCd
- Illuminant=LED not replaceable
- With bulb=yes
- Suitable for number of bulbs=1
- Socket=other
- Number of lamp heads=1
- Housing material=steel
- Housing color=white
- Cover material = transparent plastic
- Light distributor=other
- Lamp with limited surface temperature "D-mark"=no.
- Rated ambient temperature according to IEC62722-2-1=5..35°C.
- Rated luminous flux according to IEC 62722-2-1=155 lm
- Color temperature=4000..4000 K
- Type of wiring=suitable for through-wiring
- Conductor cross-section=1.5 mm²
- Connection type=plug connection.
