ESYLUX EN10080029 LED escape route lighting EEC A (A - G) Ceiling recess-mount
EAN:
Part number:
Item no:
Technical specifications
- Product type
LED escape route lighting
- Main battery supply
No
- Max. battery life
3 h
- Operating voltage
230 V AC
- Recess depth
45 mm
4.3 W
- Bulb type
LED (monochrome)
- Material
Plastic
- Mounting type
Ceiling recess-mount
- Number of pins
6
- Height
45 mm
IP20
- Protection class
II
- Outside Ø
55 mm
- Recess diameter
43 mm
55 mm
2.5 mm²
43 mm
6
45 mm
230-230 V
TRUE
4000-4500
4 W
155 lm
FALSE
45 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961794 ESYLUX EN10080029 LED escape route lighting EEC A (A - G) Ceiling recess-mount
Description

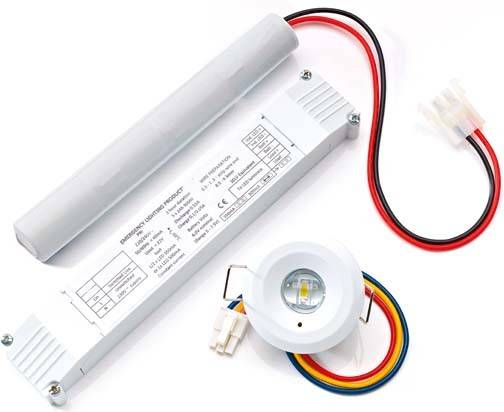

Single battery emergency lamp with 3 hours emergency lighting duration for ceiling mounting. Function control and self monitoring, permanent monitoring the charging process, automatic, weekly function test and annual operating time test, display of the test results through colored LEDs (green/red). Operating either in continuous or ready for switching is possible. Bottom light emission and optimized for illuminating rooms. Including NICD rechargeable battery with reverse polarity protection plug connection. Connection by means of a plug-in terminals (durchverdrahtbar). Housing made of UV-stabilised polycarbonate.
This text is machine translated.
This text is machine translated.
Features
- Type of tag=not applicable
- With pictogram=no.
- Monitoring device=automatic self-test
- Switching mode=continuous switching/standby switching
- With remote switch connection=yes
- Infeed=decentralized (single battery)
- Battery condition=NiCd
- Illuminant=LED not replaceable
- With bulb=yes
- Suitable for number of bulbs=1
- Socket=other
- Number of lamp heads=1
- Material of the housing=plastic
- Housing color=white
- Cover material = transparent plastic
- Light distributor=other
- Lamp with limited surface temperature "D-mark"=no.
- Rated ambient temperature according to IEC62722-2-1=5..35 °C.
- Rated luminous flux according to IEC 62722-2-1=155 lm
- Color temperature=4000..4000 K
- Type of wiring=suitable for through-wiring
- Conductor cross-section=1.5 mm²
- Connection type=plug connection."
