ESYLUX EP10424656 Flush mount Ceiling-mount occupancy sensor 152 °, 360 ° White IP20

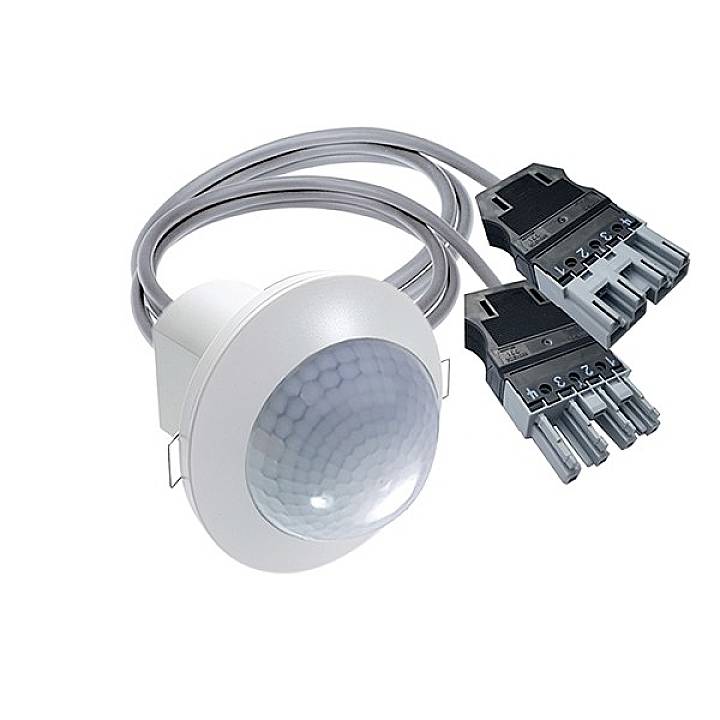

A motion sensor with cables and connectors, used for detecting movement in rooms for lighting control or security.
Technical drawing of a round recessed downlight with dimensions: 108 mm diameter, 46 mm installation depth. Connection: 2 m cable.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Optimum mounting height: 3 m.Max. Front range 5.5 m.Detection area Diameter on floor: 24 m.Adjustable response brightness: YesTeach function for response brightness: YesMaterial: PlasticWith bus connection: YesExtension: YesMode selector: YesNumber of channels: 2Min Depth of device socket: 300 mm
Product type

Ceiling-mount occupancy sensor

Detection angle

152°

360°

12 m

Used at

Indoors

Mounting type

Flush mount

Operating voltage

230 V

Twilight settings

5 - 1000 lx

Time settings

60 s - 240 min

Factory colour

White

IP20

Type

Mat

UKCA

yes
