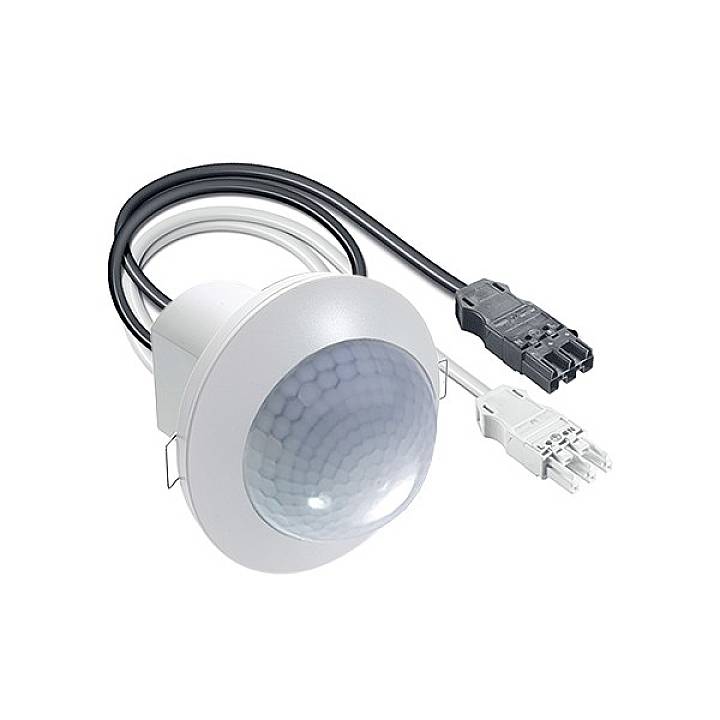

ESYLUX EP10424830 Ceiling, Flush mount Ceiling-mount occupancy sensor 360 ° Relay White IP20
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: Passive infraredForced switching: YesForced shutdown: YesLow-creep/back-field monitoring: YesOptimum mounting height: 3 m.Staircase monitoring: YesOverride switch: YesMax. Front range 5.5 m.Detection area Diameter on floor: 24 m.Adjustable response sensitivity: YesAdjustable response brightness: YesWith signal unit: YesTeach function for response brightness: YesConnection type: Spade plugMaterial: PlasticFrequency: 50 HzSwitch-off delay: 300 s.Switch-on delay: 30 s.Suitable for C load: YesMax. Inrush current 800 A.Extension: YesMin Depth of device socket: 300 mmMax. Attendance: 50.33 m²Installation depth: 300 mmInstallation diameter 68 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Ceiling
Flush mount
- Operating voltage
230 V AC
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
600 W
- Twilight settings
5 - 2000 lx
- Time settings
60 s - 30 min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-25 °C - +50 °C
- Type
Mat

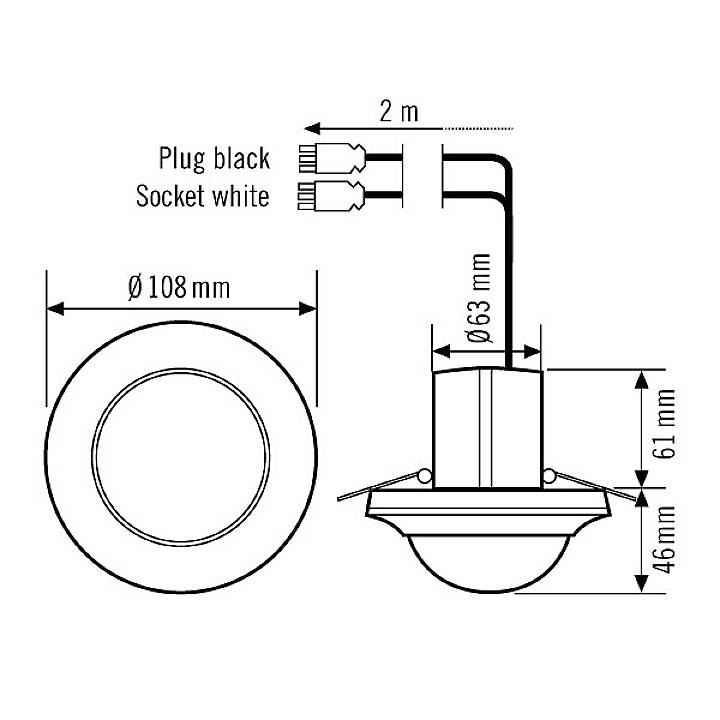

- Length
107 mm
- Height
107 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 107 mm
- UKCA
not relevant
