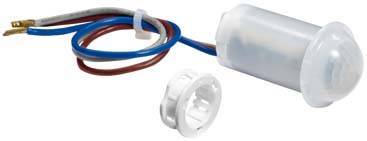

ESYLUX EP10425776 Flush mount Ceiling-mount motion detector 360 ° IP65
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: no
- The HVAC control: no
- Forced activation: yes
- Forced shut-off: yes
- Animal - i.e up: no
- Sneak/field monitoring: no
- Can be interlinked: no
- Scan angle: 360°
- Optimum mounting height: 3m
- Staircase monitoring: yes
- Bypass switch: yes
- Max. The Front Range: 1 m
- Detection field diameter on floors: 6 m
- Suitable for wireless transmission: no
- Remote control: yes
- With remote control: no
- The sensitivity can be set: yes
- Adjustable threshold: yes
- With Signal Unit: yes
- Teach function for the light-intensity threshold: yes
- Suitable for ceiling mounting: yes
- Suitable for wall mounting: no
- Abdimmfunktion with dimming use: no
- Installation type: flush-mounted
- Connection type: Other
- Material: plastic
- Material: thermoplastic
- Halogen-free: yes
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- Color: Other
- Transparent: yes
- Type of voltage: DC
- Mains frequency: 50/60 Hz.
- Switch-off delay: 30 s
- Switch-on delay: 0 s
- Detection angle horizontal 180°. .360
- Swivel range sensor
- Horizontal: 0., 2.0°
- Swivel range sensor
- Vertical: 0., 2.0°
- Max. circuit breaking capacity 36 W
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Switch-on current: 3 A
- Control current 0 mA
- Extension input: no
- Alarm function: no
- Installation depth: 36 mm
- Installation diameter: 20 mm
- Min. The depth of the device box: 36 mm
- Product type
Ceiling-mount motion detector
- Detection angle
360°
3 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
13.2 V
- Switching capacity
36 W
- Voltage (max.)
13.2 V
- Twilight settings
10 - 2000 Lux
- Time settings
60 s - 15 min
IP65
- Operating temperature
-25 °C to +50 °C
- Type
Motion detector
- Width
25 mm
- Height
11 mm
- (Ø)
25 mm
- Dim
(Ø x H) 25 mm x 11 mm
- Weight
0.16
- Voltage (min.)
12 V
- Recess depth
36 mm
- Recess diameter
20 mm
- Max. temperature
50 °C
- Min. temperature
-25 °C
Movement sensor
TRUE
47 mm
36 mm
25 mm
FALSE
20 mm
12-13 V
TRUE
FALSE
36
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955613 ESYLUX EP10425776 Flush mount Ceiling-mount motion detector 360 ° IP65
Description
Mini-motion detector 12 V DC with 360° detection zone for the ceiling mounting and wall mounting for demand-driven switch the lighting, thus significant reduction of energy costs. Range of up to 6m in diameter for use in small damp rooms, toilets, small offices, corridors or special applications, caravan, automotive. Hard background program for an immediate readiness for operation. Easy programming via the remote control. Small, compact size for a mounting hole diameter of only 20 mm diameter. IP65 version for the installation especially in damp rooms. Fixed connection cable of 1.5 m length. New Universal ESYLUX clamping technology for fast installation in ceilings, brand switch frame, lights, flush-mounted junction boxes, cabinets etc... Ceiling installation mounting in suspended ceilings with enclosed spring clamps or clamping ring. Brand switch compatible as wall mounting with enclosed clamping ring. Selective suppression of areas by means of enclosed lens mask.
