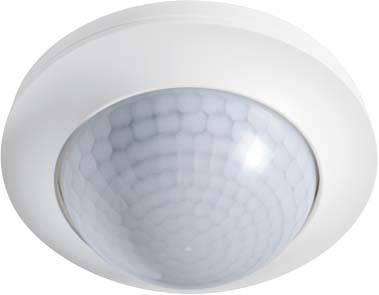

ESYLUX EP10425790 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- Installation type: flush-mounted
- Sensor type: passive infrared
- Constant light control: no
- With DALI interface: no
- The HVAC control: no
- Constant light control: no
- Can be interlinked: no
- The HVAC control: no
- Suitable for wireless transmission: no
- Forced activation: no
- Sneak/field monitoring: no
- Forced cut-off: no
- Animal - i.e up: no
- Sneak/field monitoring: no
- Max. The Front Range: 2 m
- Can be interlinked: no
- Detection field diameter on floor: 32 m
- Scan angle: 360°
- The sensitivity can be set: no
- Optimum mounting height: 10 m
- Adjustable threshold: no
- Staircase monitoring: yes
- Teach function for the light-intensity threshold: no
- Bypass switch: no
- Abdimmfunktion with dimming use: no
- Animal - i.e up: no
- Staircase monitoring: no
- Max. The Front Range: 5 m
- Material: plastic
- Detection field diameter on floor: 32 m
- Material: thermoplastic
- Suitable for wireless transmission: no
- Halogen-free: yes
- Remote control: no
- With remote control: no
- The sensitivity can be set: no
- Min. Switch-on duration: 0 s
- Adjustable threshold: no
- Max. duty cycle 0 min
- With Signal Unit: yes
- Teach function for the light-intensity threshold: no
- Suitable for ceiling mounting: yes
- Suitable for wall mounting: no
- RAL-number (similar): 9010
- Abdimmfunktion with dimming use: no
- Installation type: flush-mounted
- Type of connection: Plug-in terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: yes
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- RAL-number (similar): 9010
- Transparent: yes
- Type of voltage: AC
- Min. Switch-on duration: 0 s
- Max. duty cycle 0 min
- Switch-off delay: 30 s
- Switch-on delay: 0 s
- Detection angle horizontal 180°. .360
- Swivel range sensor
- Horizontal: 0., 2.0°
- Swivel range sensor
- Vertical: 0., 2.0°
- Suitable for C-load: no
- Number of switching zones: 0
- Extension input: no
- Alarm function: no
- Installation depth 24 mm
- Installation diameter: 60 mm
- Min. The depth of the device box: 24 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
16 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-25 °C to +50 °C
- Type
Presence detector
- Height
46 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 46 mm
- Weight
0.11
- Recess depth
24 mm
- Recess diameter
60 mm
- Max. temperature
50 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962402 ESYLUX EP10425790 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
Description
Slave presence detector for extending the detection range of a "master" presence detector with 360° detection range for ceiling mounting. Range of up to 32 m, elliptical detection range of 32 m in length and 4 m in width, at an installation height of 10 m (maximum mounting height approx. 15 m). For a cost-effective system extension, up to 10 "Slave" presence detectors can be connected to a "master". Optimally suitable for installation at high altitudes up to approx. 15 m, such as sports halls, warehouses etc. LED can be switched off via DIP switch. Suppression of interference sources by reducing the sensitivity via DIP switch. Standard design as flush-mounted device. Surface or ceiling mounting with accessories. Cover and design ring can be easily changed/painted (available in silver as an accessory). Targeted suppression of areas by means of lens mask provided. The "slave" detector can be connected to many PD-C series presence detectors.
