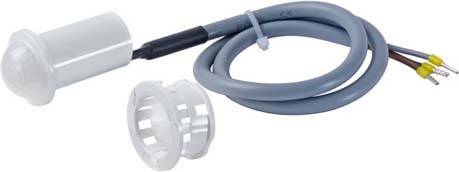

ESYLUX EP10426001 Flush mount Ceiling-mount motion detector 360 ° Relay Multicolour IP55
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: no
- The HVAC control: no
- Forced activation: yes
- Forced shut-off: yes
- Animal - i.e up: no
- Sneak/field monitoring: no
- Can be interlinked: no
- Scan angle: 360°
- Optimum mounting height: 3m
- Staircase monitoring: yes
- Bypass switch: yes
- Max. The Front Range: 2 m
- Detection field diameter on floor: 8 m
- Suitable for wireless transmission: no
- Remote control: yes
- With remote control: no
- The sensitivity can be set: yes
- Adjustable threshold: yes
- With Signal Unit: yes
- Teach function for the light-intensity threshold: yes
- Suitable for ceiling mounting: yes
- Suitable for wall mounting: no
- Abdimmfunktion with dimming use: no
- Installation type: flush-mounted
- Connection type: Other
- Material: plastic
- Material: thermoplastic
- Halogen-free: yes
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- Color: Other
- Transparent: yes
- Type of voltage: AC
- Mains frequency: 50/60 Hz.
- Switch-off delay: 30 s
- Switch-on delay: 0 s
- Detection angle horizontal 180°. .360
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Switch-on current: 800 A
- Control current 0 mA
- Extension input: yes
- Alarm function: no
- Mounting depth: 45 mm
- Installation diameter: 25 mm
- Min. The depth of the device box: 45 mm
- Product type
Ceiling-mount motion detector
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Twilight settings
5..2000 lx
- Time settings
60 s - 15 min
- Factory colour
Multicolour
IP55
- Operating temperature
-25 °C to +50 °C
- Type
Motion detector
- Width
33 mm
- Height
15 mm
- (Ø)
33 mm
- Dim
(Ø x H) 33 mm x 15 mm
- Weight
0.19
- Recess depth
45 mm
- Recess diameter
25 mm
- Max. temperature
50 °C
- Min. temperature
-25 °C
Movement sensor
TRUE
60 mm
45 mm
50-50 MHz
33 mm
FALSE
25 mm
800 A
230-230 V
TRUE
FALSE
45
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962397 ESYLUX EP10426001 Flush mount Ceiling-mount motion detector 360 ° Relay Multicolour IP55
Description
Mini-motion detector with 360° detection range for the ceiling mounting. Range of up to 8 m in diameter at a recommended mounting height of 3 m (maximum installation height 5 m) for use in small rooms and continuity areas with no or low daylight share. 16 A high power relay (tungsten-feed contact), particularly suitable for switching capacitive loads, such as Ebs, parallel compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps. Hard background program for an immediate readiness for operation. Automatic lighting control for applications with no or very little daylight share. Easy programming via the remote control. Detection range extension by parallel connection of up to 8 alarms. Small, compact size for a mounting hole size of only 25 mm diameter. Fixed connection cable of 60 cm long. New Universal ESYLUX clamping technology for fast installation in a suspended ceiling, lights, flush-mounted junction boxes, cabinets etc... Ceiling installation mounting in suspended, closed ceilings with enclosed spring clamps or clamping ring. Selective suppression of areas by means of enclosed lens mask.
