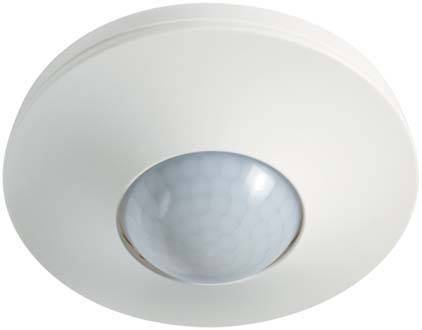

ESYLUX EP10426711 Flush mount Ceiling-mount occupancy sensor 360 ° Relay White IP20
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: Passive infraredWith DALI interface: No.Constant light control: YesHVAC activation: No.Forced activation: YesForced shutdown: YesAnimal slope: No.Low-level detection/back field monitoring: No.Network-compatible: No.Scan angle 360°Optimum mounting height 3 m.Staircase monitoring: YesBy-pass switch: YesMax. Presence area: 12.58 m²Max. Range: Front 3 mCapturing field Diameter on floor: 8 m.Suitable for wireless transmission: No.Remote control: YesWith remote control: No.Response sensitivity adjustable: YesResponse brightness adjustable: YesWith signal unit: YesTeach-Function for Response Brightness: YesSuitable for ceiling mounting: YesSuitable for wall mounting: No.Dimming function with dimming insert: YesMounting type: Flush-mountedConnection type: Plug-in terminalMaterial: PlasticMaterial quality: ThermoplasticHalogen-free: YesSurface: UntreatedDesign of surface: MattAntibacterial treatment: No.RAL number (similar): 9010Transparent: YesVoltage type ACMains frequency: 50/60 Hz.Switch-off delay 30 s.Switch-on delay 300 s.Horizontal coverage angle: 180..360°Pivoting range sensorhorizontal: 0..0°Pivoting range sensorvertical: 0..0 °Suitable for C-Load: No.Number of switching zones: 1Max. Power surge 800 AControl current 0 mAExtension input: YesAlarm function: No.Mounting depth: 24 mmInstallation diameter 60 mmMin Depth of the device socket 24 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Standby current consumption
0.3 W
- Twilight settings
5 - 2000 lux
- Time settings
60 s – 15 min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-25 °C to +50 °C
- Type
Presence detectors
- Length
108 mm
- Width
62 mm
- Height
38 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 38 mm
- Weight
144 g
- Voltage (min.)
230 V
- Recess depth
24 mm
- Recess diameter
60 mm
- Max. temperature
50 °C
- Min. temperature
-25 °C
Presence detector
TRUE
62 mm
24 mm
50-50 MHz
108 mm
FALSE
60 mm
800 A
9010
230-230 V
TRUE
FALSE
24
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958349 ESYLUX EP10426711 Flush mount Ceiling-mount occupancy sensor 360 ° Relay White IP20
Description
Occupancy sensor with 360° detection range for ceiling mounting Range of up to 8 m in diameter with a recommended mounting height of 3 m (maximum mounting height 5 m). Automatic light control (channel 1) at a constant brightness level depending upon presence and daylight (1 - 10 V = interface). 16 A high power relay (tungsten-feed contact), specially suitable for switching from capacitive loads B. EVGs, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps. Permanently stored factory program for immediate operation. Simple programming via remote control with "blue mode" technology or via settings elements. Integrated switch for setting via remote control or using adjustable controller - to avoid incorrect operation and as tamper protection. Suppression of interference sources by reduction of sensitivity by DIP switches. Additional button input with switching function "room = ON + OFF/corridor = ON". Detector can be used as a full or semi-automatic system. Reduction to 10 % of light output after the end of the follow-up time as guidance light for corridors and passageways. Integrated switch-off pre-warning. Standard design as flush-mounted device Wall-mounted or Ceiling mounting with accessories Cover plate and design ring can be easily changed/painted (available in the color "silver" as an accessory). Extension of the detection range by connection of slave devices. Targeted suppression of areas using enclosed lens mask.
