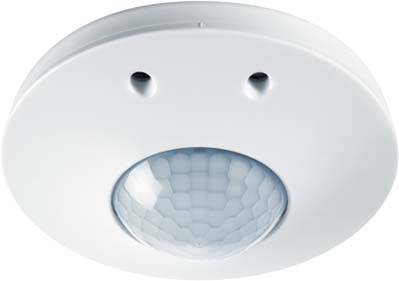

ESYLUX EP10427206 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: Yes
- KNX radio bus system: no.
- Bus system Radio bus: no.
- Bus system LON: no.
- Bus system Powernet: no.
- Other bus systems: None
- Bidirectional radio: no.
- Mounting type: Flush-mounted
- Material: Plastic
- Material quality: Thermoplastic
- Surface: Untreated
- Surface type: Matt
- RAL number (similar): 9010
- Transparent: no.
- With bus connection: Yes
- Extension input: no.
- Low-creep/back-field monitoring: no.
- Mode selector: no.
- Animal cut: no.
- Staircase monitoring: no.
- Adjustable response brightness: Yes
- Teach function for response brightness: Yes
- Switch-off delay self-learning: no.
- Optimum mounting height: 3 m.
- Max. Range frontal: 3 m.
- Detection area Diameter on floor: 8 m.
- Detection angle vertical: 0..180 °
- Detection angle horizontal: 180..360 °
- Number of channels: 4
- Number of binary inputs: 0
- Switching capacity 0 W
- Min Depth of the device socket: 24 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Voltage (max.)
31 V
- Twilight settings
5 - 2000 lx
- Time settings
30 s - 720 min
- Factory colour
White
- Similar RAL
9010
IP20
- Type
Presence detector
- Height
62 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 62 mm
- Voltage (min.)
29 V
Presence detector
38 mm
24 mm
108 mm
FALSE
60 mm
TRUE
FALSE
FALSE
TRUE
FALSE
9010
FALSE
FALSE
24
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965102 ESYLUX EP10427206 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
Description
KNX ceiling-mounted occupancy detector with 360° detection range. Range of up to 8 m in diameter with a recommended mounting height of 3 m. Integrated acoustic sensor for the optimum use in confusing and angled rooms. Additional recording of ambient temperature and relative air humidity. Can be used in the KNX bus system (EIB), TP (2-wire bus) in connection with other KNX components. Parameter and function setting via the ETS (engineering tool software). Manual, temporary switching/dimming via user remote control. Communication objects, constant light control or switching, heating, ventilation and air conditioning (HVAC), blocking object for heating, ventilation and air conditioning (HVAC), light output (2 bytes), status message, presence output (HVAC), usable as "Master" or "Slave", KNX button control for light channels, full or semi-automatic, orientation light 2 light values selectable 10% - 50%, test mode, correction factor. Standard design as flush-mounted device Wall-mounted or Ceiling mounting possible with accessories. Targeted suppression of areas using enclosed lens mask.
