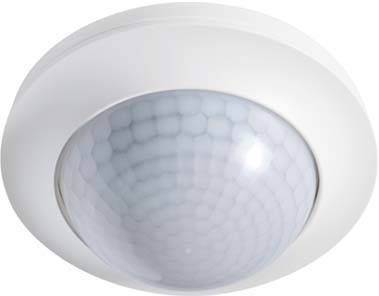

ESYLUX EP10427435 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: Yes
- KNX radio bus system: no.
- Bus system Radio bus: no.
- Bus system LON: no.
- Bus system Powernet: no.
- Other bus systems: None
- Bidirectional radio: no.
- Mounting type: Flush-mounted
- Material: Plastic
- Material quality: Thermoplastic
- Surface: Untreated
- Surface type: Matt
- RAL number (similar): 9010
- Transparent: no.
- With bus connection: Yes
- Extension input: no.
- Low-creep/back-field monitoring: no.
- Mode selector: no.
- Animal cut: no.
- Staircase monitoring: no.
- Adjustable response brightness: Yes
- Teach function for response brightness: Yes
- Switch-off delay self-learning: no.
- Optimum mounting height: 3 m.
- Max. Range frontal: 5 m.
- Detection area Diameter on floor: 24 m.
- Detection angle vertical: 0..180 °
- Detection angle horizontal: 180..360 °
- Number of channels: 4
- Number of binary inputs: 0
- Switching capacity 0 W
- Min Depth of the device socket: 24 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Flush mount
- Voltage (max.)
31 V
- Twilight settings
5 - 2000 lx
- Time settings
30 s - 720 min
- Factory colour
White
- Similar RAL
9010
IP20
- Type
Presence detector
- Weight
0
- Voltage (min.)
29 V
Presence detector
70 mm
24 mm
108 mm
FALSE
60 mm
TRUE
FALSE
FALSE
TRUE
FALSE
9010
FALSE
FALSE
24
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959670 ESYLUX EP10427435 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
Description
KNX ceiling-mounted occupancy detector with 360° detection range. Range of up to 24 m in diameter with a recommended mounting height of 3 m for comfort applications. Can be used in the KNX bus system (EIB), TP (2-wire bus) in connection with other KNX components. Parameter and function setting via the ETS (engineering tool software). Optimally suitable with the function "Switch" for installation at high altitudes of up to 10 m for example B. Sports and warehouses. Manual, temporary switching/dimming via user remote control. Communication objects. - Light value output (2 bytes). - Status message. - Can be used as "Master" or "Slave". - KNX button control for light channels. - Full or semi-automatic. - Test mode. - Correction factor for room light. - Sensitivity of sensor range 1 to 4. Standard design as flush-mounted device Wall-mounted or Ceiling mounting possible with accessories. Cover plate and design ring can be easily changed/painted (available in the color "silver" as an accessory). Targeted suppression of areas using enclosed lens mask.
