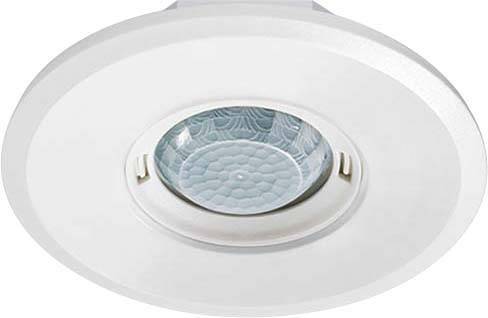

ESYLUX EP10428609 Flush mount Motion detector 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- Scan angle: 360°
- Optimum mounting height: 2.5 m
- Staircase monitoring: yes
- Max. The Front Range: 2 m
- Detection field diameter on floor: 8 m
- Type of connection: Plug-in terminal
- Min. Switch-on duration: 5 s
- Max. duty cycle 30 min
- Switch-off delay: 30 s
- Number of switching zones: 1
- Max. Inrush Current: 78A
- Extension input: yes
- Product type
Motion detector
- Detection angle
360°
4 m
- Used at
Internal
- Mounting type
Flush mount
- Operating voltage
230 V
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Twilight settings
2 - 2000 lux
- Time settings
5 s - 30 h min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
0 to 50 °C
- Type
Motion detector
- Height
6 mm
- (Ø)
104 mm
- Dim
(Ø x H) 104 mm x 6 mm
- Recess depth
24 mm
- Recess diameter
68 mm
- Max. temperature
50 °C
- Min. temperature
0 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955601 ESYLUX EP10428609 Flush mount Motion detector 360 ° White IP20
Description
Designer motion detector, range approx. 8 m in diameter. 1 channel, Switch, with zero-voltage switching optimized for LED-lights. Master/Slave (parallel circuit). Space optics with enlarged design covers made of plastic (Ø 104 mm): round, white - variable can be changed (alternatively: Glass, square, black). In-wall and ceiling mounted. Input.
