ESYLUX EP10428753 Flush mount Ceiling-mount occupancy sensor Black IP20
EAN:
Part number:
Item no:
Technical specifications
- Design: Presence detectors
- Sensor type: Passive infrared
- With DALI interface: No.
- Constant light control: No.
- HVAC activation: No.
- Forced activation: Yes
- Forced shutdown: Yes
- Animal slope: No.
- Low-level detection/back field monitoring: Yes
- Network-compatible: No.
- Scan angle 360°
- Optimum mounting height 2.5 m.
- Bridge switch: No.
- Max. Range to one side: 4 m.
- Max. Presence area: 12.58 m²
- Max. Range: Front 3 m
- Capturing field Diameter on floor: 8 m.
- Suitable for wireless transmission: No.
- Remote control: Yes
- With remote control: No.
- Response sensitivity adjustable: Yes
- Response brightness adjustable: Yes
- With signal unit: Yes
- Teach-Function for Response Brightness: No.
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: No.
- Dimming function with dimming element: No.
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: No.
- Surface protection: Untreated
- Design of surface: Matt
- Antibacterial treatment: No.
- Colour, black
- RAL number (similar): 9004
- Transparent: No.
- Protection class (IP) IP20
- Voltage type AC
- Frequency: 50 Hz
- Nominal voltage: 230 V
- Min Switch-on time 60 seconds
- Max. duty cycle 30 min
- Switch-off delay 300 s.
- Switch-on delay 30 s.
- Horizontal coverage angle: 180..360°
- Panning range of sensor, horizontal: 0°
- Swivel range of sensor, vertical: 0 °
- Response brightness 5 - .2000 Lux
- Max. switching capacity 2300 W
- Max. Switching capacity LED 600 W
- Suitable for C-Load: Yes
- Temperature 0..50°C
- Number of switching zones: 1
- Max. Power surge 78 A
- Alarm function: No.

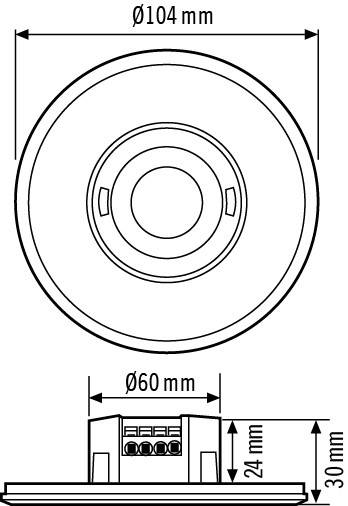

- Height: 30 mm
- Diameter 104 mm
- Mounting depth: 24 mm
- Installation diameter 60 mm
- Compatible with Apple HomeKit: No.
- Min Depth of the device socket 24 mm
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
Ceiling-mount occupancy sensor
8 m
- Mounting type
Flush mount
- Operating voltage
230 V
- Switching capacity
2300 W
- Voltage (max.)
230 V AC
- Switching capacity (LED)
600 W
- Factory colour
Black
- Similar RAL
9004
IP20
- Type
Occupancy Sensors
- Height
30.00 mm
- (Ø)
104 mm
- Dim
(Ø x H) 104 mm x 30.00 mm
- Material (details)
Plastic
- Nominal voltage
230 V
- Recess diameter
60 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159181 ESYLUX EP10428753 Flush mount Ceiling-mount occupancy sensor Black IP20
Description
Designer presence detector, range approx. 8 m Ø. 1 channel, switching, with zero-voltage switching optimized for LED-lamps. Master/Slave (parallel connection). Flat look with enlarged design-covers made of plastic (Ø 104mm: Round, white - variable interchangeable (alternatively: Glass, square, black) Flush-mounting and ceiling mounting Pushbutton input.
