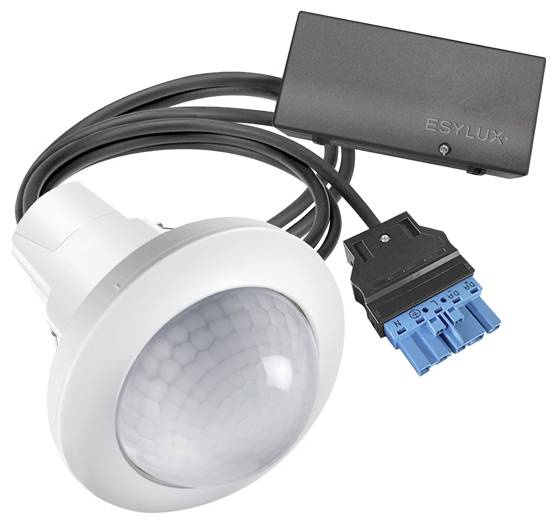

ESYLUX EP10428906 Flush mount Ceiling-mount occupancy sensor
EAN:
Part number:
Item no:
Technical specifications
- Height: 126 mm
- Mounting depth: 80 mm
- Design: Presence detectors
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- Diameter 108 mm
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: DALI
- Number of channels: 1
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Bidirectional radio: Yes
- With bus connection: Yes
- Min Depth of the device socket 80 mm
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: Yes
- Installation diameter 68 mm
- With connection cable: No.
- Material quality: Thermoplastic
- RAL number (similar): 9010
- Response brightness adjustable: Yes
- Optimum mounting height 3 m.
- Max. Range to one side: 12 m.
- Max. Range: Front 5.5 m
- Capturing field Diameter on floor: 24 m.
- Angle of coverage vertical 76..152°
- Horizontal coverage angle: 180..360°
- Operating mode switch: No.
- Staircase monitoring: Yes
- Low-level detection/back field monitoring: No.
- Teach-Function for Response Brightness: No.
- Animal slope: No.
- Switch-off delay, self-learning: No.
- Rear field monitoring: No.
- With acoustic sensor: No.
- Bus power supply: Yes
- DALI-2 certified: Yes
- Product type
Ceiling-mount occupancy sensor
- Mounting type
Flush mount
- Similar RAL
9010
- Height
126 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 126 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549469 ESYLUX EP10428906 Flush mount Ceiling-mount occupancy sensor
Description
DALI-2 certified ceiling presence detector with integrated DALI-2 control unit and power supply (250 mA). Cross-area lighting control of up to 16 groups. Easy to adapt to individual and complex room situations. Presence and daylight-dependent constant light control for maximum energy efficiency. 16A relay for switching HVAC and auxiliary lighting. 4 button inputs (potential-affected). Versatile manual override options and up to 16 scenes. Automatic switching of groups if space usage changes. Day of the week and time-dependent control options per group. Power-saving and time-controlled shutdown of DALI operating devices (Power cut-off). Warm function for more comfort at the workplace. Central functions for zone or building-wide override. Fast start with factory settings in broadcast mode. Individual groups ready to use immediately with factory settings. Easy configuration via ESY-APP via bidirectional Bluetooth interface. Easy documentation and management of configured projects via ESY APP (e.g. as PDF report). 2.0 m pre-assembled WAGO WINSTA® supply and lead.
