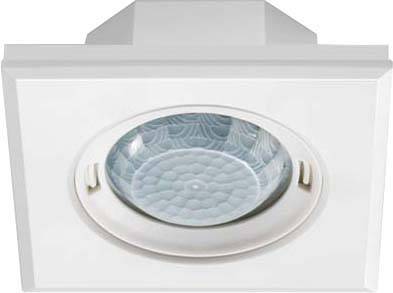

ESYLUX EP10451713 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: yes
- Bus-KNX radio: no
- Funkbus bus system: no
- LON bus system: no
- Powernet bus system: no
- Other bus systems: without
- Bi-directional radio: no
- Installation type: flush-mounted
- Material: plastic
- Material: thermoplastic
- Untreated surface:
- Design of the surface: mat
- RAL-number (similar): 9010
- Transparent: no
- With bus coupling: yes
- Extension input: no
- Sneak/field monitoring: no
- Mode switch: no
- Animal - i.e up: no
- Staircase monitoring: no
- Adjustable threshold: yes
- Teach function for the light-intensity threshold: yes
- Switch-off delay is self-learning: no
- Optimum mounting height: 3m
- Max. The Front Range: 3 m
- Detection field diameter on floor: 8 m
- Detection angle, vertical: 0..180°
- Detection angle horizontal 180°. .360
- Number of Channels: 4
- The number of binary inputs: 0
- Power rating: 0 W
- Min. The depth of the device box: 24 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Voltage (max.)
31 V
- Twilight settings
3 - 1000 lx
- Time settings
30 s - 720 min
- Factory colour
White
- Similar RAL
9010
IP20
- Type
Presence detector
- Voltage (min.)
29 V
77
Presence detector
30 mm
77 mm
24 mm
FALSE
60 mm
TRUE
FALSE
FALSE
TRUE
FALSE
9010
FALSE
FALSE
24
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957001 ESYLUX EP10451713 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
Description
KNX design ceiling-mounted occupancy detector with a 360° detection range. Range approx. 8 m Ø at a recommended mounting height of 3 m (maximum mounting height 5 m). Can be used in the KNX bus system (EIB), TP (2-wire bus) in connection with other KNX components. Parameter and function setting via the ETS (engineering tool software). Manual, temporary switching/dimming via user remote control. Communication objects, constant light control or switching, heating, ventilation and air conditioning (HVAC), blocking object for heating, ventilation and air conditioning (HVAC), light output (2 bytes), status message, presence output (HVAC), usable as "Master" or "Slave", KNX button control for light channels, full or semi-automatic, orientation light 2 light values selectable 10% - 50%, test mode, correction factor Sensitivity of sensor adjustable from 1 to 4. Standard design as flush-mounted device Ceiling mounting possible with accessories. Targeted suppression of areas using enclosed lens mask.
This text is machine translated.
