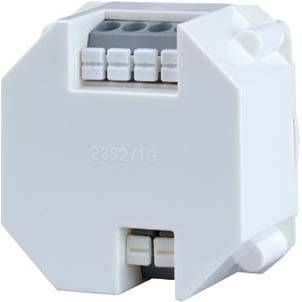

ESYLUX KNX EP10427480 Actuator SWDALISemiAutomation
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: no
- Bus-KNX radio: no
- Funkbus bus system: no
- LON bus system: no
- Powernet bus system: no
- Other bus systems: without
- Bi-directional radio: no
- Installation type: built-in installation
- Width in the division units: 0
- On-site/hand-held operating: no
- With LED indicator: no
- The number of binary inputs: 1
- Output power 0.2 W
- Suitable for C-load: yes
- Max. Number of switching outputs: 1
- Max. switching current 10 A
- Rated current 10 A
- Rated operating voltage: 13. 22.4 V
- Different phases can be connected: no
- With bus coupling: yes
- Bus module can be removed: no
- Min. The depth of the device box: 25 mm
- Modular Expansion Option: no
- Product type
Actuator
- Series
KNX
- Max. switching capacity
2300 W
- Used at
Internal
IP20
- Operating voltage
22.4 V
0.2 W
- Data transfer (Smart Home)
Wired
- Channels
1
- Mounting type
Recess-mount
- Hub
Not required, optional for remote access
n.rel.
- Features
Signal input
- Switching capacity
2300 W
FALSE
FALSE
FALSE
TRUE
FALSE
FALSE
FALSE
25
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961018 ESYLUX KNX EP10427480 Actuator SWDALISemiAutomation
Description
Factory setting fully automatic. Full or semi-automatic. Button input for manual switching. Simple programming via remote control with "blue mode" technology. 4 h ON/OFF can be set via universal remote control. Manually controllable (ON/OFF) via universal remote control. Delay time 1 min. to 120 min. Potential-free relay with 10 A switching capacity.
