ESYLUX OFL SUN LED30W 5K sw EL10810169 LED outdoor floodlight 28 W Colours (LEDs): White
EAN:
Part number:
Item no:
Highlights & Details
LED spotlight ADF 5000K m. MONT BRACKET BLK
- Power= 28 W
- Total luminous flux= 3650 lm
- Colour temperature= 5000 K
- White
Technical specifications
- Suitable for panel-mounted = Yes
- Suitable for panel mounting = No
- Suitable for wall mounting = Yes
- Suitable for suspended = No
- Suitable for ceiling mounting = No
- Suitable for truss mounting = No
- Suitable for platform/floor mounting = No
- Suitable for power rail mounting = No
- Suitable for clamp assembly = No
- Suitable for rope system = No
- Adjustment = rotates and swivels, and
- With motion detector = No
- With light sensor = No
- Light bulb = LED not interchangeable
- With bulb = Yes
- Suitable for light bulbs number = 1
- Version = without
- Material of the housing = Aluminum
- Surface = powder-coated
- Housing color = black
- Material cover = glass transparent
- Brushed surface = No
- Type of Voltage = AC
- Nominal Voltage = 230. .230 V
- LED-rated current at constant current = 125. .273 mA
- Operating device = not required
- With Operating Device = No
- Dimming depending on the operating device = No
- Dimming 0-10V = No
- Dimming 1-10 V = No
- Dimming DALI = No
- Dimming DMX = No
- Dimming DSI = No
- Dimming Potentiometer (integrated into the unit) = No
- Dimming GPRS = No
- Dimming line switch = No
- Dimming manufacturer-specific = No
- Dimming power supply modulation = No
- Dimming trailing edge = No
- Dimming phase angle = No
- Dimming can be programd = No
- Dimming RF = No
- Dimming Sine Wave Reduction = No
- Dimming Touch and dim = No
- Dimming Zigbee = No
- Dimming with push-button = No
- Without dimming function = Yes
- Reflector = without
- Light distribution = diffuser lens/optics/panel
- Light distribution = balanced
- Emission angle = extremely wide radiating> 80°
- Light-emitting = directly
- Rated Life L70/B10 at 25°C = 45000 h
- Rated Life L70/B50 at 25°C = 45000 h
- Rated Life L80/B10 at 25°C = 30000 h
- Rated Life L80/B50 at 25°C = 30000 h
- Rated Life L90/B10 at 25°C = 15000 h
- Rated Life L90/B50 at 25°C = 15000 h
- IP65 degree of protection (IP) =
- Protection class = I
- According to IEC 62722-2-1 = rated ambient temperature °C-25 .50
- Max. System performance = 28 W
- Light color = white
- .5000 K color temperature = 5000.
- Color rendering index CRI = 80-89
- Light current = .3650 LM3650.
- According to IEC 62722-2-1 = Rated luminous flux 3650 lm
- Width = 227 mm
- Height/depth = 86 mm
- Length = 252 mm
- Type of wiring = suitable for feed-through wiring
- Pins = 3
- Conductor cross-section = 2.5 mm²
- Connectable conductor cross-section = 1.5. 2.5 mm²
- Connection type = screw terminal
- Lamp with limited surface temperature "D-characters" = no
- Light light yield = 130 lm/W
- Workplace compatible according to EN 12464-1 = No
- Cover of the lamp with thermal insulation material is possible = No
- Product type
LED outdoor floodlight
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
28 W
28 W
5000 K
- Colour
White
3650 lm
- Total luminous flux
3650 lm
- Light features
Pivoted
- Protection class
I
IP65
- Factory colour
Black
- Material
Aluminium
- Dim
(L x W x H) 252 x 227 x 86 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Width
227 mm
- Height
86 mm
- Length
252 mm
- Depth
86 mm
- Number of pins
3
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963125 ESYLUX OFL SUN LED30W 5K sw EL10810169 LED outdoor floodlight 28 W Colours (LEDs): White
Description

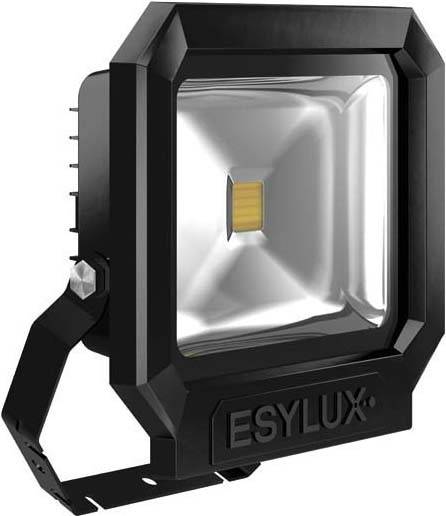

LED spotlight is made of high-quality die-cast aluminum housing. 30 W LED light output corresponds to 155 W bulb, light color approx. 5000 K white. High light yield with 90lm/W. Very good color reproduction index Ra 80. ADF special band made of stainless steel, also painted, for the wall, inside corner and outdoor corner mounting. Secure mounting through separate connection box with easily accessible connection terminals. All outer screws made of stainless steel. Life of LED L80/B50 = 50,000 h.
