ESYLUX OFLBASICLED30W 4K WH EL10810718 LED outdoor floodlight 30 W Colours (LEDs): White
EAN:
Part number:
Item no:
Highlights & Details
LED spotlight 4000 K white
- Power= 30 W Total luminous flux= 3000 lm Colour temperature= 4000 K White
Technical specifications
- Suitable for panel-mounted = Yes
- Suitable for panel mounting = No
- Suitable for wall mounting = Yes
- Suitable for suspended = No
- Suitable for ceiling mounting = Yes
- Suitable for truss mounting = No
- Suitable for platform/floor mounting = No
- Suitable for power rail mounting = No
- Suitable for clamp assembly = No
- Suitable for rope system = No
- Adjustment = swivelling
- With motion detector = No
- With light sensor = No
- Light bulb = LED not interchangeable
- With bulb = Yes
- Suitable for light bulbs number = 1
- Version = without
- Material of the housing = Aluminum
- Surface = powder-coated
- Housing Color = white
- Material cover = glass transparent
- Brushed surface = No
- Type of Voltage = AC
- .240 V nominal voltage = 220.
- LED-rated current at constant current = 118. .129 mA
- Operating device = not required
- With Operating Device = No
- Dimming depending on the operating device = No
- Dimming 0-10V = No
- Dimming 1-10 V = No
- Dimming DALI = No
- Dimming DMX = No
- Dimming DSI = No
- Dimming Potentiometer (integrated into the unit) = No
- Dimming GPRS = No
- Dimming line switch = No
- Dimming manufacturer-specific = No
- Dimming power supply modulation = No
- Dimming trailing edge = No
- Dimming phase angle = No
- Dimming can be programd = No
- Dimming RF = No
- Dimming Sine Wave Reduction = No
- Dimming Touch and dim = No
- Dimming Zigbee = No
- Dimming with push-button = No
- Without dimming function = Yes
- Reflector = white
- Light distribution = reflector
- Light distribution = balanced
- Emission angle = extremely wide radiating> 80°
- Light-emitting = directly
- Energy efficiency index (EEI) of the power supply = A2
- Rated Life L70/B10 at 25°C = 55000 h
- Rated Life L70/B50 at 25°C = 55000 h
- Rated Life L80/B10 at 25°C = 40000 h
- Rated Life L80/B50 at 25°C = 40000 h
- Rated Life L90/B10 at 25°C = 25000 h
- Rated Life L90/B50 at 25°C = 25000 h
- IP65 degree of protection (IP) =
- Impact strength = IK07
- Protection class = I
- According to IEC 62722-2-1 = rated ambient temperature °C-25 .40
- Suitable for lamp power=30...30 W
- Max. System performance = 30 W
- Light color = white
- Color temperature = 4000 .4000 K
- Color rendering index CRI = 80-89
- Light current = 3000. .3000 lm
- According to IEC 62722-2-1 = Rated luminous flux 3000 lm
- Luminous efficacy = 100 lm/W
- Power factor = 0.9
- Width = 205 mm
- Height/depth = 32 mm
- Length = 215 mm
- Type of wiring = Conclusion
- Pins = 3
- Conductor cross-section = 0.75 mm²
- Connectable conductor cross-section = 0.75. 2.5 mm²
- Connection type = other
- Lamp with limited surface temperature "D-characters" = no
- Light light yield = 100 lm/W
- Workplace compatible according to EN 12464-1 = No
- Cover of the lamp with thermal insulation material is possible = No
- Glow wire test according to IEC 60695-2-11=650°C - 30 s
- Photo Biological Safety according to EN 62471 = RG0
- Product type
LED outdoor floodlight
- Operating voltage
240 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
30 W
30 W
4000 K
- Colour
White
3000 lm
- Total luminous flux
3000 lm
- Light features
Swivelling
- Protection class
I
IP65
- Factory colour
White
- Material
Aluminium
- Dim
(L x W) 215 mm x 205 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Width
205 mm
- Length
215 mm
- Depth
32 mm
- Number of pins
3
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1967149 ESYLUX OFLBASICLED30W 4K WH EL10810718 LED outdoor floodlight 30 W Colours (LEDs): White
Description

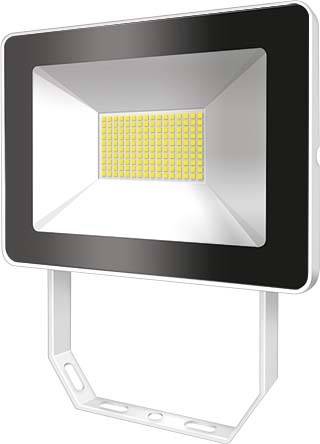

The compact spotlight OFL BASIC is suitable for space-saving illumination of roads, car parks and squares or the lighting of facades and signs.. LED spotlight with a compact aluminum housing for the inconspicuous mounting, white.. 30 W light output with 4000K color temperature (neutral white).. Very good efficiency with approx. 100 lm/W.
This text is machine translated.
This text is machine translated.
