Eurolite 40001830 PLL-704 DMX LED effect light No. of LEDs (details):704 1.99 W
EAN:
Part number:
Item no:
Highlights & Details

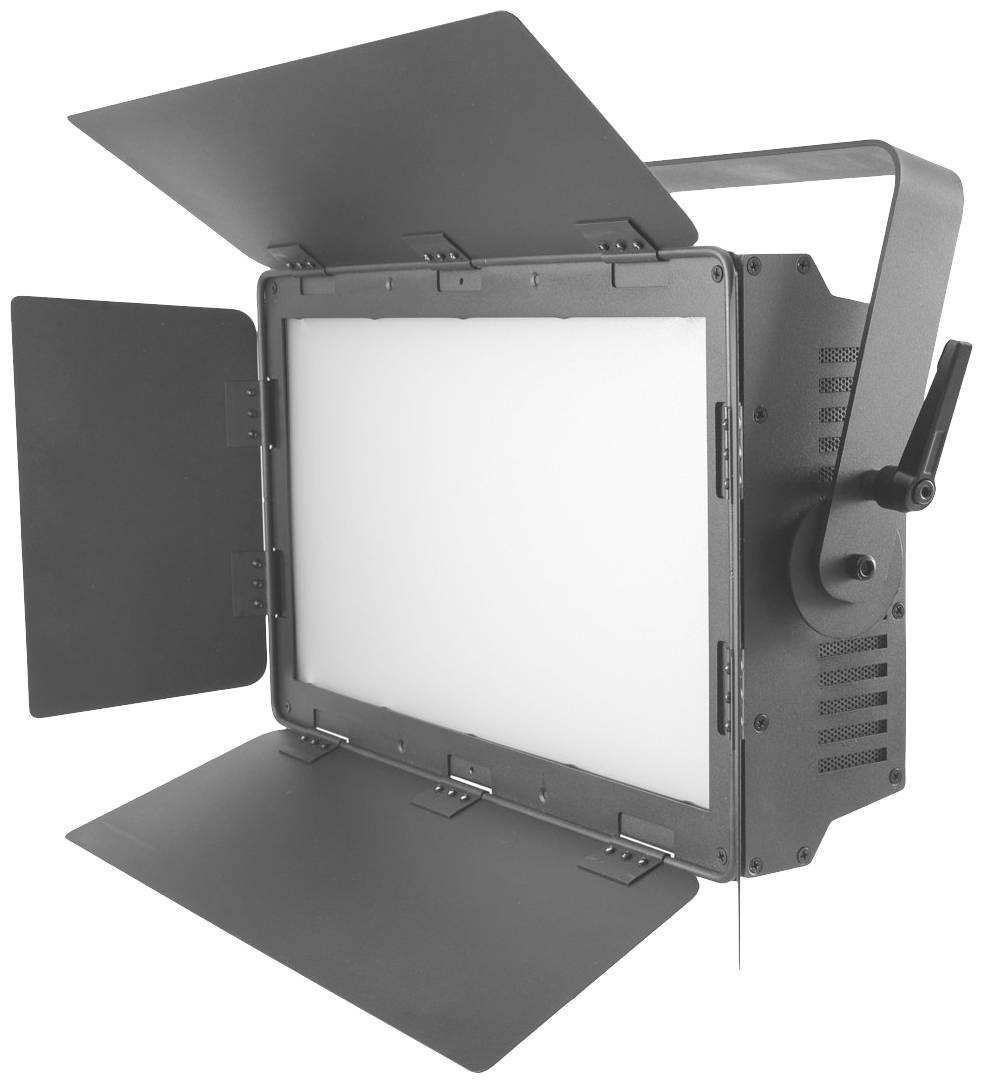

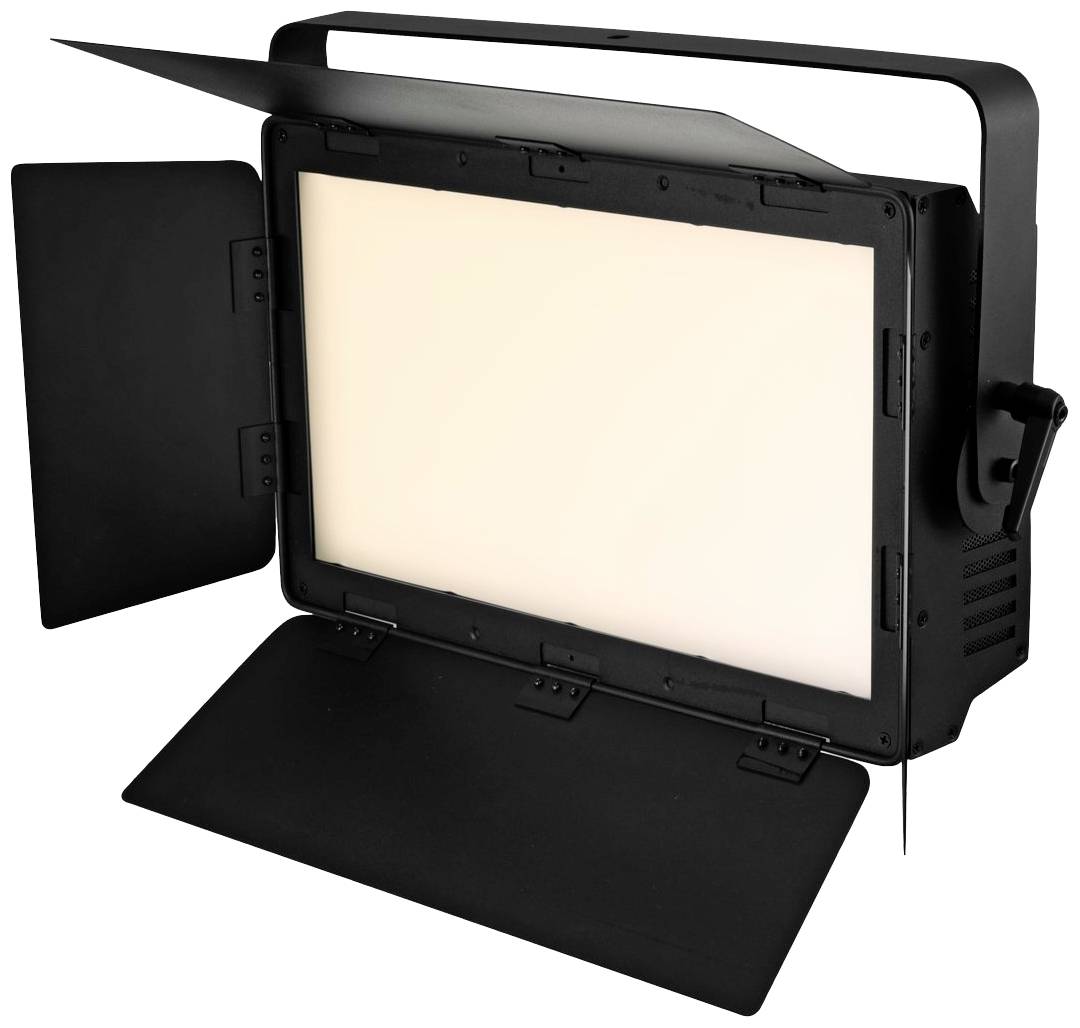

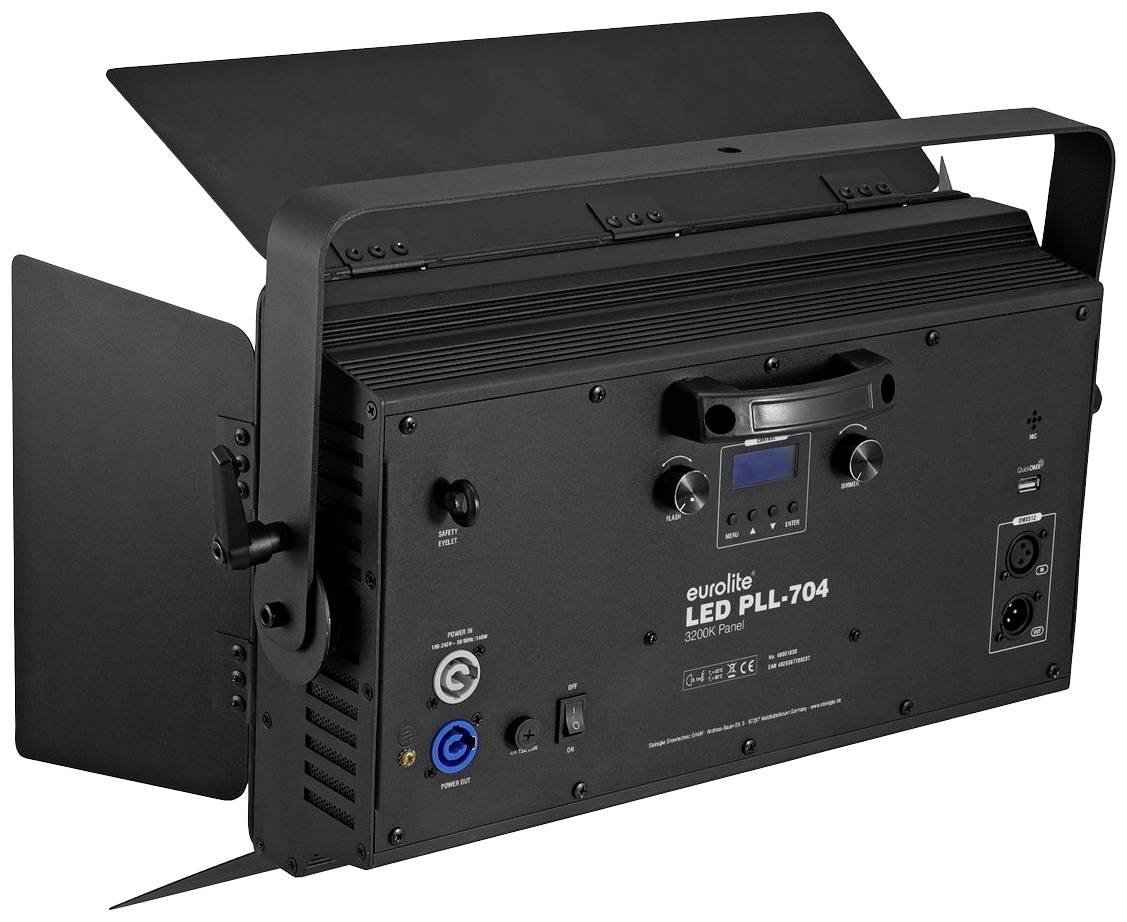

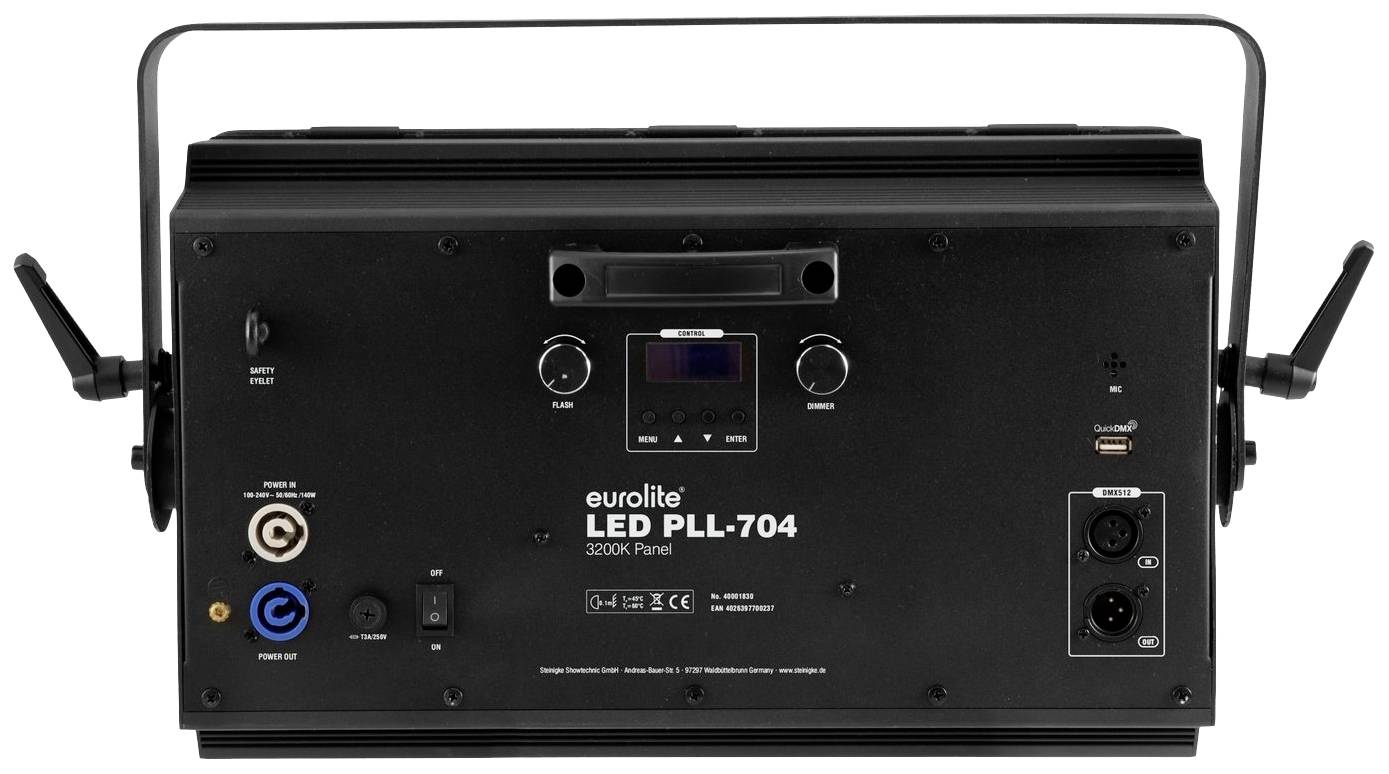

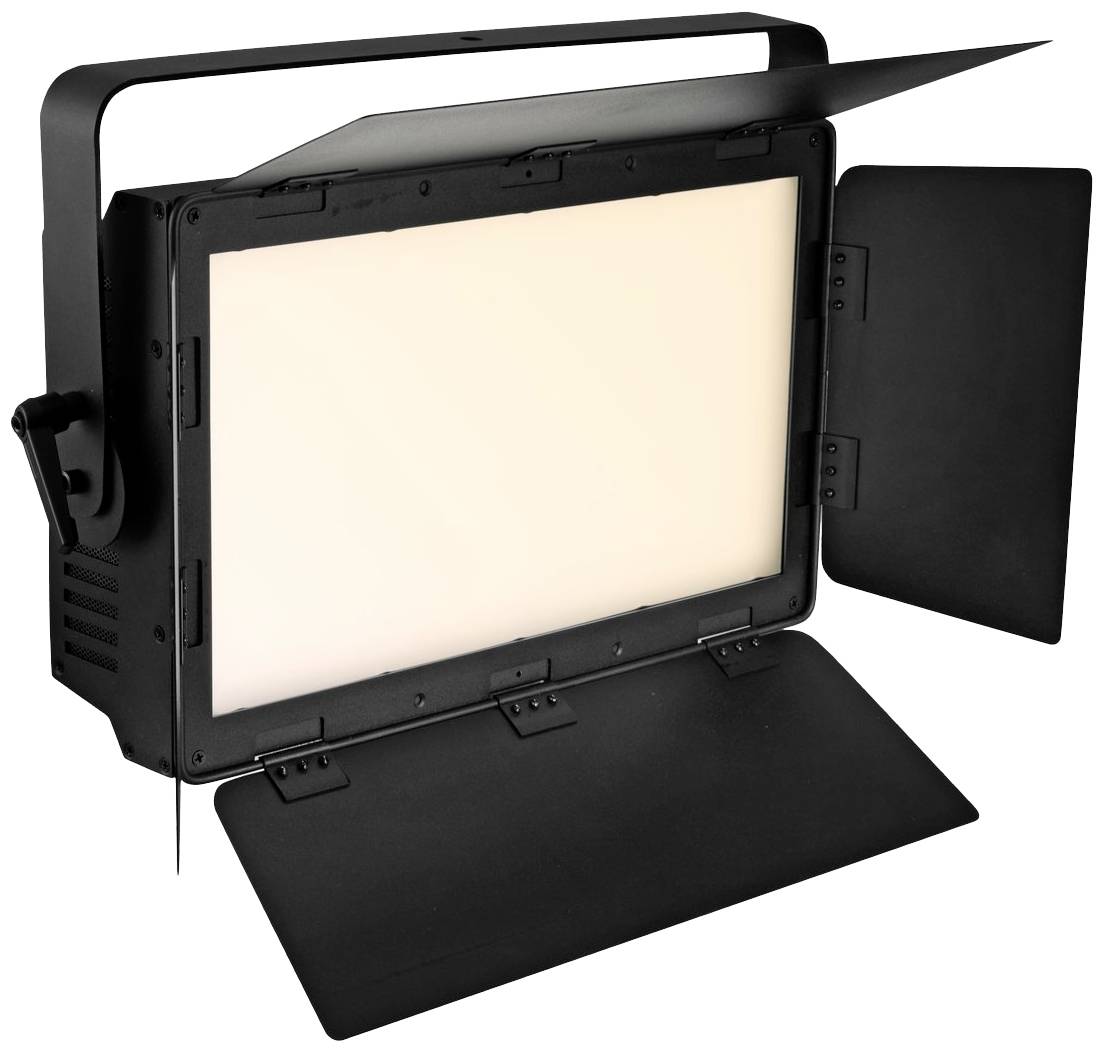

Eurolite LED PLL-704 3200K-panel
- DMX-socket and wing limiter
- 704 high-performance LEDs SMD 2835 warm-white (WW)
- Energy efficient, durable and environmentally friendly
- Perfect glare and transport protection through 4 door panels
Technical specifications
- Product type
DMX LED effect light
140 W
- LEDs
704
- Colour
Warm white
- Dim
(L x W x H) 565 x 255 x 422 mm
- Weight
770 g
n.rel.
- Features
Dimmable
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
255 mm
- Height
422 mm
- Length
565 mm
- Watt per LED
1.99 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131190 Eurolite 40001830 PLL-704 DMX LED effect light No. of LEDs (details):704 1.99 W
Description
DMX-controllable surface light with 704 warm-white LEDs, Quick
Pulse-width modulation variable
The device is cooled by passive convection cooling
Can be controlled via stand alone; DMX; Speed selector potentiometer for brightness and flash rate; Music control via microphone; Master/Slave function; CRMX by Lumen Radio via USB (optional); W-DMX by Wireless Solution via USB (optional); QuickDMX via USB (optional)
Flicker-free
With an angle of radiation of 120°
Very high color rendering index (CRI)
With mounting bracket
LCD display
Robust handle
Chrome-plated case folding handle
Flat, robust metal housing
Ideal for applications such as video and photography; stage; trade fair and shop fitting; mobile use
Pre-programmed by Light Captain
Power input and power output for simple connection of up to 8 devices
Noiseless operation
Possible application: On-the-fly; on a tripod
This text is machine translated.
Pulse-width modulation variable
The device is cooled by passive convection cooling
Can be controlled via stand alone; DMX; Speed selector potentiometer for brightness and flash rate; Music control via microphone; Master/Slave function; CRMX by Lumen Radio via USB (optional); W-DMX by Wireless Solution via USB (optional); QuickDMX via USB (optional)
Flicker-free
With an angle of radiation of 120°
Very high color rendering index (CRI)
With mounting bracket
LCD display
Robust handle
Chrome-plated case folding handle
Flat, robust metal housing
Ideal for applications such as video and photography; stage; trade fair and shop fitting; mobile use
Pre-programmed by Light Captain
Power input and power output for simple connection of up to 8 devices
Noiseless operation
Possible application: On-the-fly; on a tripod
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 140 W
- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- LCD display type
- Cooling: Passive convection cooling
- Housing colour black.
- Protection class: IP20
- Supporting system: Mounting bracket
- Carrying handle:1 pieces
- Control: Stand-alone
- Folding handle:1 pieces
- LED lamp type
- LED:704 x SMD 2835 warm white
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- DMX
- Pre-programmed with: Light Captain
- Beam angle: 120°
- Beam angle (1/2 peak) 120°
- Colour rendering index (CRI): 91 Ra
- Noise classification: Class 0 (no noise)
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- Fuse: T 3 A fuse can be replaced
- DMX output 3-pin XLR (W) built-in version
- Illuminance (lx): 131 lx
- P-Con (gray), installation version
- Flash rate 0 - 20 Hz
- Speed selection potentiometer for brightness and flash rate
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional)
Scope of delivery
- Headlamps
- Network cable/power cable
- User manual
