Eurolite 40001850 PLL-168 DMX LED effect light No. of LEDs (details):168 0.23 W
EAN:
Part number:
Item no:
Highlights & Details

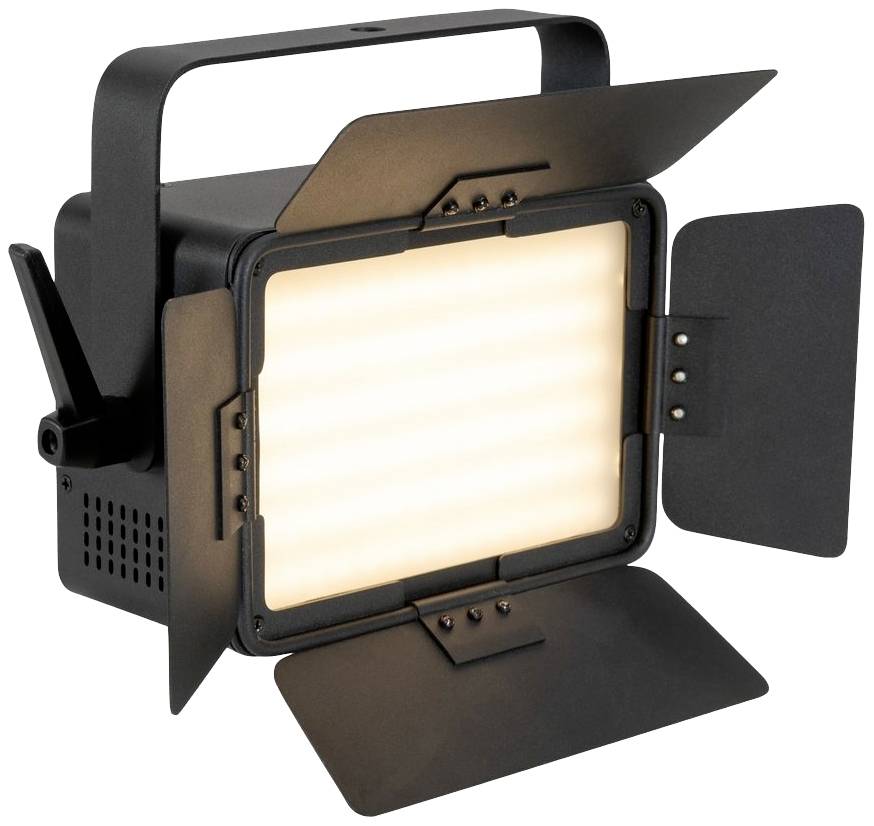

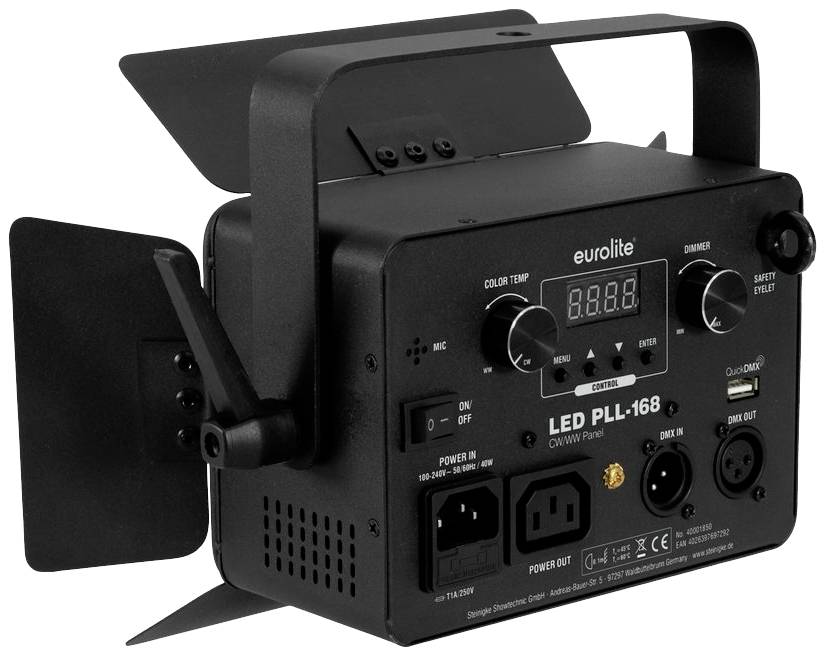

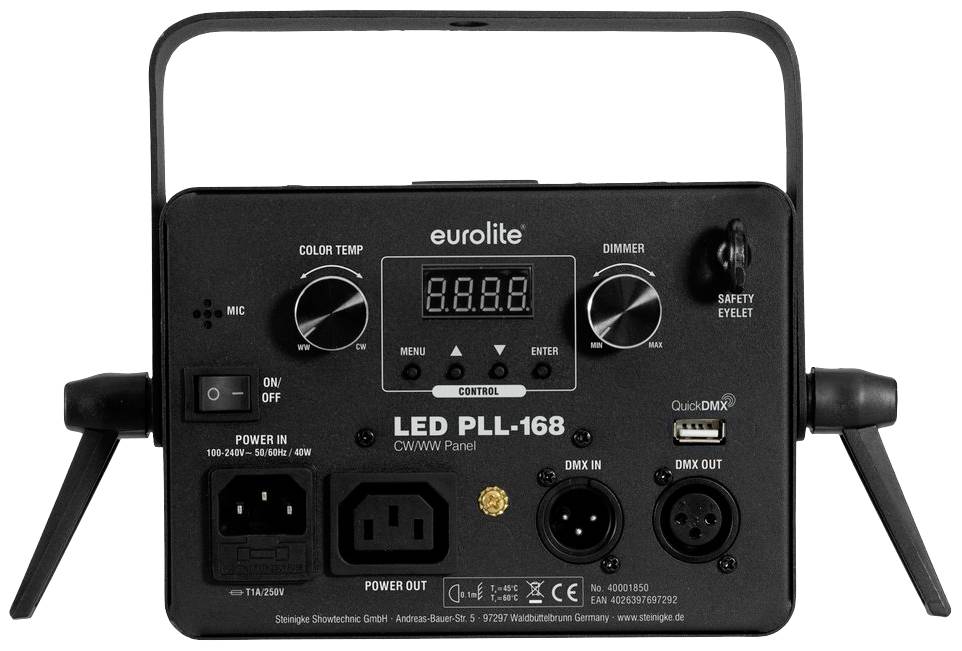

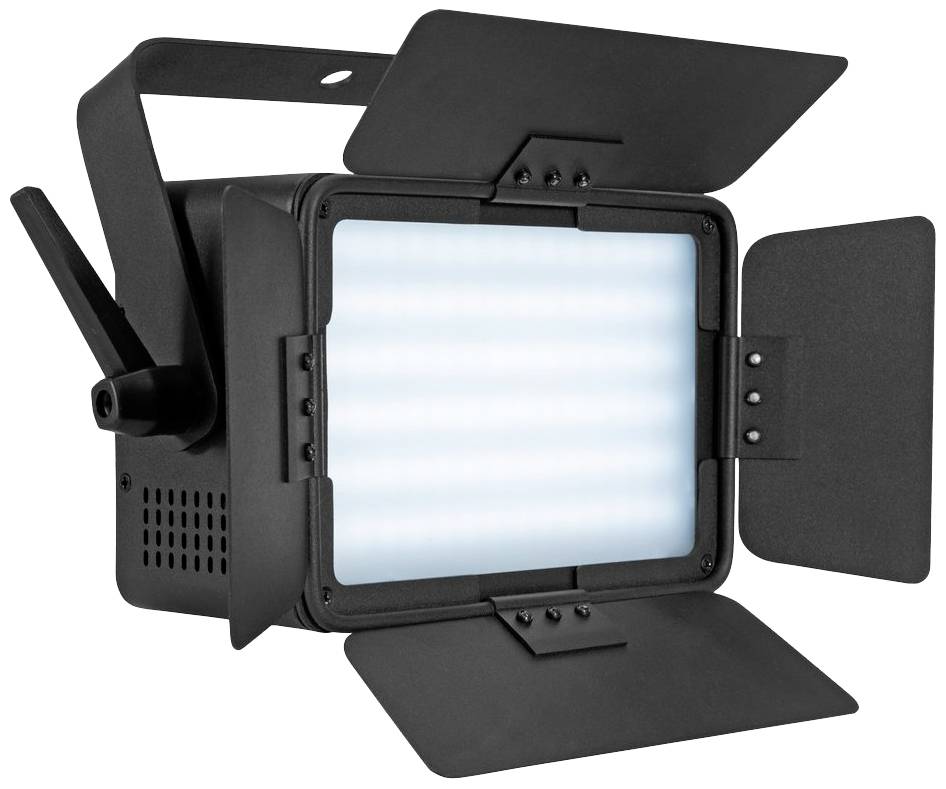

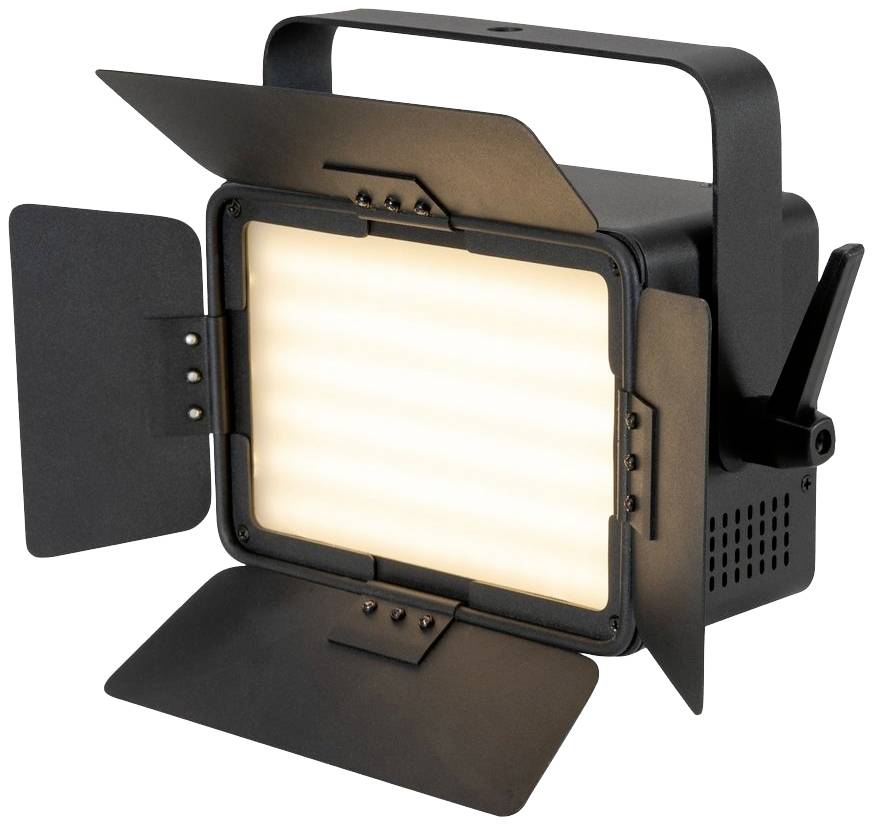

Eurolite LED PLL-168 CW/WW panel
- DMX-socket and wing limiter
- 84 high-performance LEDs 0.5 W SMD 2835 warm-white (WW)
- 84 powerful LEDs 0.5 W SMD 2835 cold-white (CW)
Technical specifications
- Product type
DMX LED effect light
40 W
- LEDs
168
- Colour
Warm white to cool white
- Dim
(L x W x H) 281 x 110 x 173 mm
- Weight
1.84 kg
n.rel.
- Features
Dimmable
Wall and ceiling mount option
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
110 mm
- Height
173 mm
- Length
281 mm
- Watt per LED
0.23 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131185 Eurolite 40001850 PLL-168 DMX LED effect light No. of LEDs (details):168 0.23 W
Description
DMX-controllable surface lamp with 168 dual-white LEDs, Quick
Variable color temperature 2800 K - 6500 K
Perfect glare and transport protection through 4 door panels
Energy efficient, durable and environmentally friendly
Pulse-width modulation variable
Integrated show programs
The device is cooled by passive convection cooling
Can be controlled via speed selection potentiometer for brightness and color temperature; stand-alone; DMX; master/slave function; music control via microphone QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by Wireless Solution via USB (optional)
Flicker-free
With an angle of radiation of 120°
Good color rendering index (CRI)
With mounting bracket
4 digit 7-segment LED display
Flat, robust metal housing
For application areas such as: Video and photography; stage; trade fair and shop fitting; installation
Pre-programmed by Light Captain
Available in different colors
Power input and power output for simple connection of up to 8 devices
Noiseless operation
Possible application: On-the-fly; on a tripod
This text is machine translated.
Variable color temperature 2800 K - 6500 K
Perfect glare and transport protection through 4 door panels
Energy efficient, durable and environmentally friendly
Pulse-width modulation variable
Integrated show programs
The device is cooled by passive convection cooling
Can be controlled via speed selection potentiometer for brightness and color temperature; stand-alone; DMX; master/slave function; music control via microphone QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by Wireless Solution via USB (optional)
Flicker-free
With an angle of radiation of 120°
Good color rendering index (CRI)
With mounting bracket
4 digit 7-segment LED display
Flat, robust metal housing
For application areas such as: Video and photography; stage; trade fair and shop fitting; installation
Pre-programmed by Light Captain
Available in different colors
Power input and power output for simple connection of up to 8 devices
Noiseless operation
Possible application: On-the-fly; on a tripod
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 40 W
- Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
- Display type: 4 digit 7-segment LED display
- Protection class SK I
- Cooling: Passive convection cooling
- Housing colour black.
- Protection class: IP20
- Supporting system: Mounting bracket
- Control: Speed selection potentiometer for brightness and color temperature
- LED lamp type
- LED:84 x 0.5 W SMD 2835 warm white
- Adjustable color temperature 2800K - 6500K
- DMX channels: 2
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- DMX
- Pre-programmed with: Light Captain
- Beam angle: 120°
- Beam angle (1/2 peak) 120°
- Colour rendering index (CRI): 80 Ra
- Noise classification: Class 0 (no noise)
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- Fuse: T 1 A fuse can be replaced
- DMX output 3-pin XLR (W) built-in version
- Illuminance (lx): 21 lx
- Power output 1 x cold devices (W) in built version
- Flash rate 0 - 20 Hz
- Music control via microphone
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional)
- 84 x 0.5 W SMD 2835 cold-white (CW)
- Stand-alone: Stand-alone
- Warm white (WW) - 21 lx
- Every 1 m: 43 lx
Scope of delivery
- Headlamps
- User manual
- Network cable/power cable
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
