Eurolite 40001893 PLL-384 DMX LED effect light No. of LEDs (details):384 0.417 W
EAN:
Part number:
Item no:
Highlights & Details
Eurolite LED PLL-384 RGB/WW panel
- DMX-socket, frost filter and wing limiter
- 240 powerful LEDs 1.5 W SMD 5054 R/G/B (homogeneous color mixing)
- 144 high-performance LEDs 1 W SMD 5054 warm-white (WW)
Technical specifications
- Product type
DMX LED effect light
160 W
- LEDs
384
- Colour
RGB
Warm white
- Dim
(L x W x H) 347 x 131 x 211 mm
- Weight
3.73 kg
n.rel.
- Features
Dimmable
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
131 mm
- Height
211 mm
- Length
347 mm
- Watt per LED
0.417 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131191 Eurolite 40001893 PLL-384 DMX LED effect light No. of LEDs (details):384 0.417 W
Description
DMX surface-controlled light with RGB/WW color mixing, Quick
Additional frost filter for a broad, homogeneous and soft light

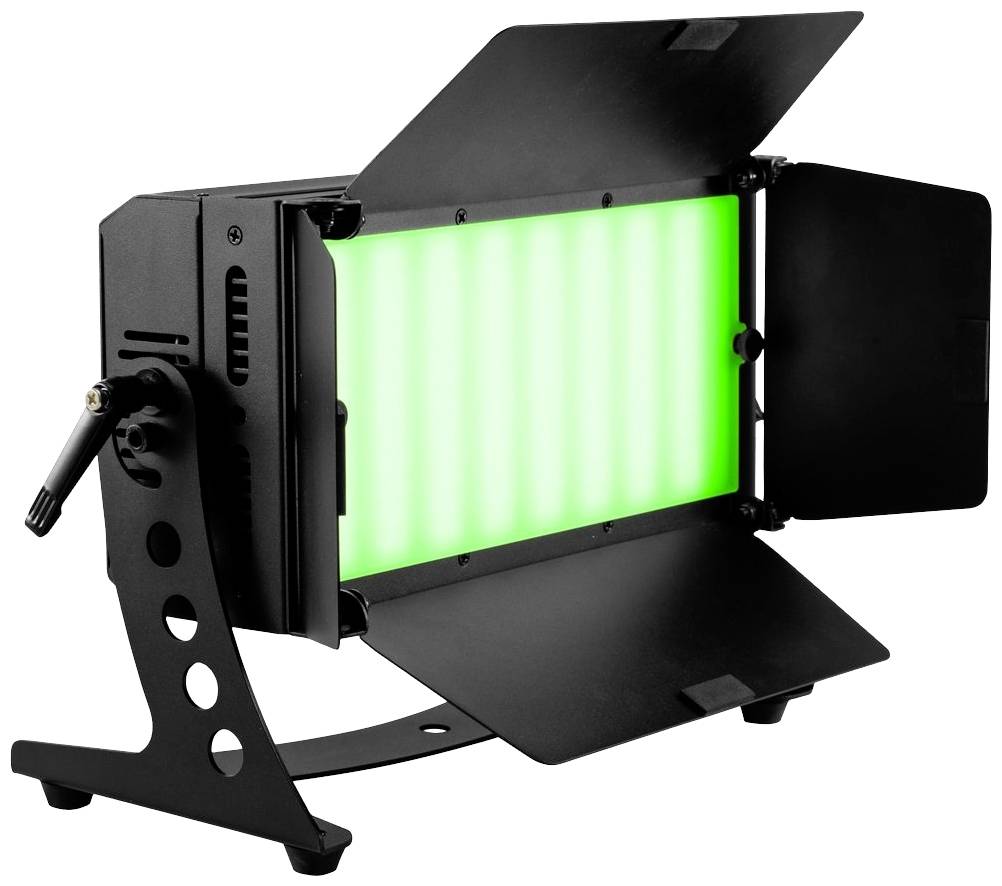

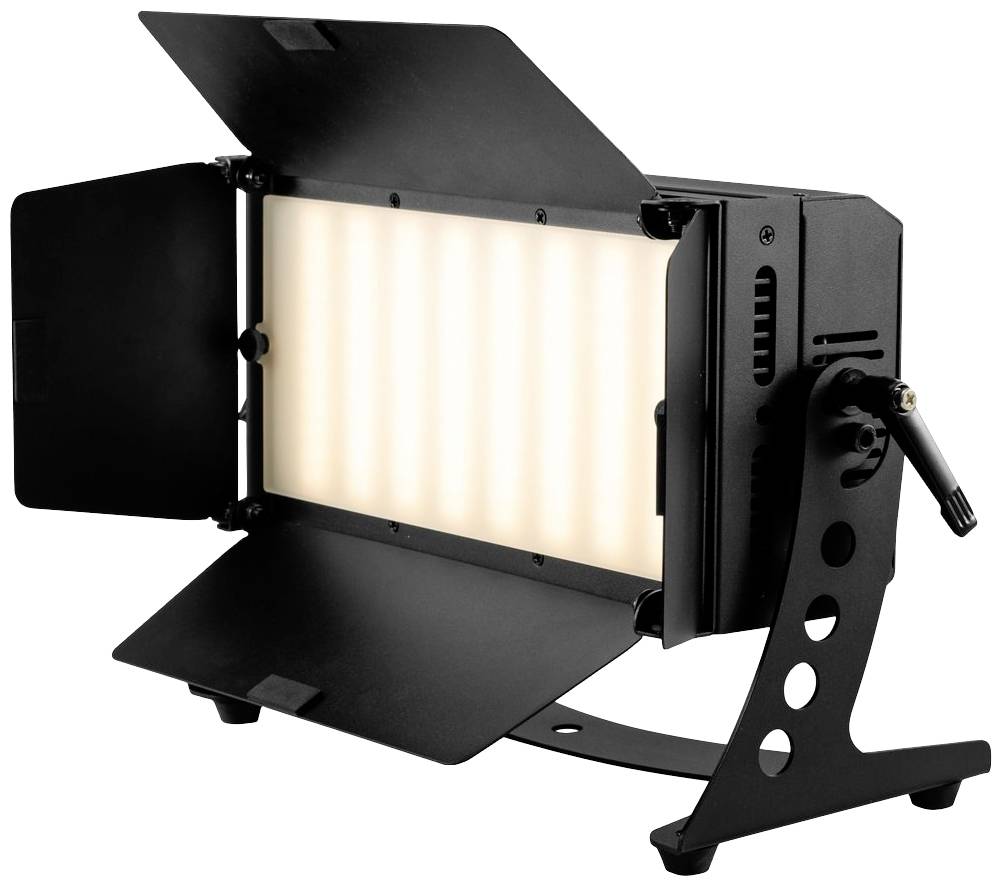

Perfect glare and transport protection through 4 door panels
Integrated show programs
Direct color selection for 15 colors
Adjustable white balance; electronic dimmer; dimmer speed (jump response) adjustable; color change adjustable; color cross-fading adjustable; Colour mixture continuously variable
Stroboscope-effect
The device is cooled by a temperature controlled fan
Can be controlled via stand alone; DMX; Master/Slave function; Speed selector potentiometer for brightness and color preset; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With an angle of radiation of 120°
Very high color rendering index (CRI)
With mounting bracket
LCD display
Already pre-programmed at Light´J; Light Captain
Power input and power output for simple connection of up to 8 devices
For application areas like: Theatre; distributors; weddings/gala/events; trade fair and shop building
Very quiet operation
Possible application: On-the-fly; on a tripod
This text is machine translated.
Additional frost filter for a broad, homogeneous and soft light
Perfect glare and transport protection through 4 door panels
Integrated show programs
Direct color selection for 15 colors
Adjustable white balance; electronic dimmer; dimmer speed (jump response) adjustable; color change adjustable; color cross-fading adjustable; Colour mixture continuously variable
Stroboscope-effect
The device is cooled by a temperature controlled fan
Can be controlled via stand alone; DMX; Master/Slave function; Speed selector potentiometer for brightness and color preset; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With an angle of radiation of 120°
Very high color rendering index (CRI)
With mounting bracket
LCD display
Already pre-programmed at Light´J; Light Captain
Power input and power output for simple connection of up to 8 devices
For application areas like: Theatre; distributors; weddings/gala/events; trade fair and shop building
Very quiet operation
Possible application: On-the-fly; on a tripod
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 160 W
- Power supply: Power feed via P-Con (blue), installation version power supply cable with safety plug
- LCD display type
- Protection class SK I
- Cooling: Fan temperature controlled
- Housing colour black.
- Protection class: IP20
- Supporting system: Mounting bracket
- Control: Stand-alone
- Width: 13.1 cm
- LED lamp type
- LED:240 x 1.5 W SMD 5054 R/G/B (homogeneous color mixing)
- Colour temperature: 3000K

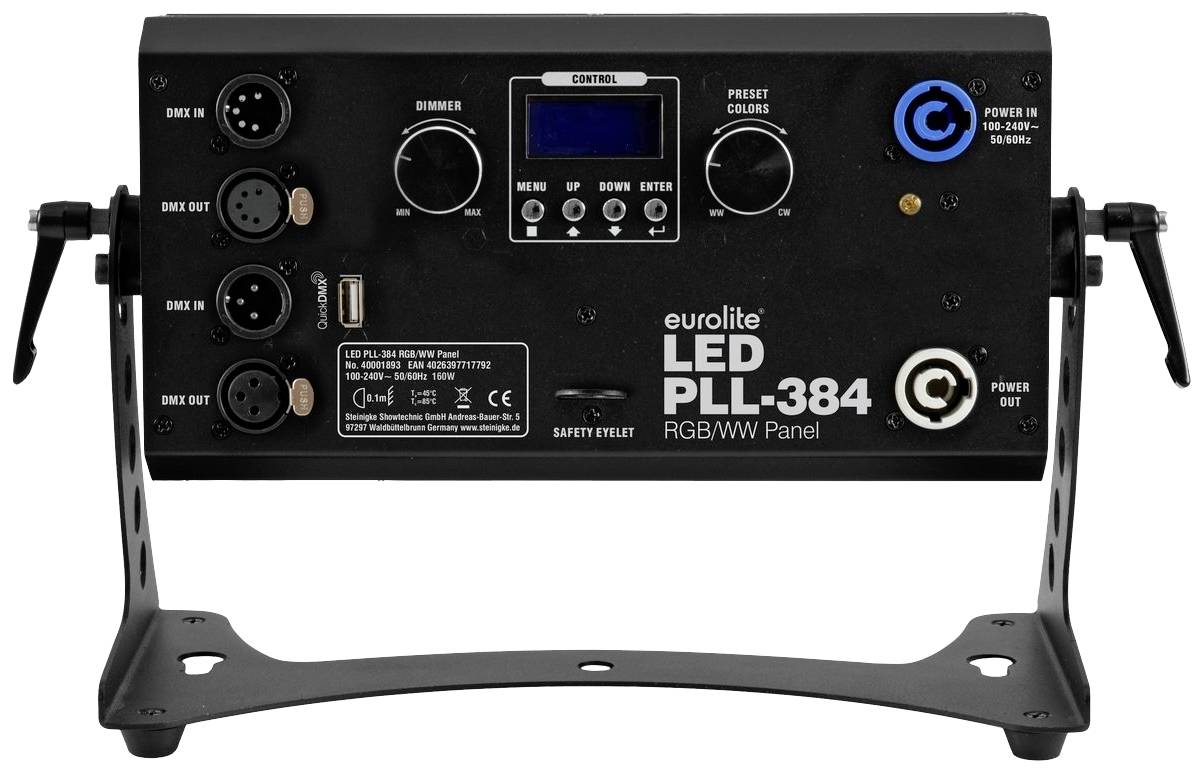

- DMX input 1 x 3-pin XLR (M) installation version
- Master/slave function: Master/slave function
- Pre-programmed at: Light´J
- Light captain: Light captain
- Beam angle: 120°
- Beam angle (1/2 peak) 120°
- Colour rendering index (CRI): 96 Ra
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- Fuse: T 6.3 A fuse to be replaced in service
- DMX output 1 x 3-pin XLR (W) built-in version
- Illuminance (lx): 21 lx
- Wide warm white (WW) 1m: 61 lx
- Power output 1 x P-Con (gray), installation version
- Flash rate 1 - 23 Hz.
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional)
- 144 x 1 W SMD 5054 warm white (WW)
- 1 x 5-pin XLR (M) installation version
- 1 x 5-pin XLR (W) installation version
- Quick-selection potentiometer for brightness and color pre-setting
- Eng green (G) 1m: 46 lx
- Narrow, blue (B) 1m: 9 lx
- Narrow, warm white (WW) 1m: 73 lx
- Narrow every 1m: 149 lx
- Wide red (R) 1m: 17 lx
- Wide green (G) 1 m: 41 lx
- Wide blue (B) 1m: 9 lx
- Wide every 1m: 127 lx
Scope of delivery
- Headlamps
- User manual
- Network cable/power cable
- Diffuser disk
- 2 x Knurled screw
