Eurolite 40001894 PLL-432 DMX LED effect light No. of LEDs (details):432 0.197 W
EAN:
Part number:
Item no:
Highlights & Details

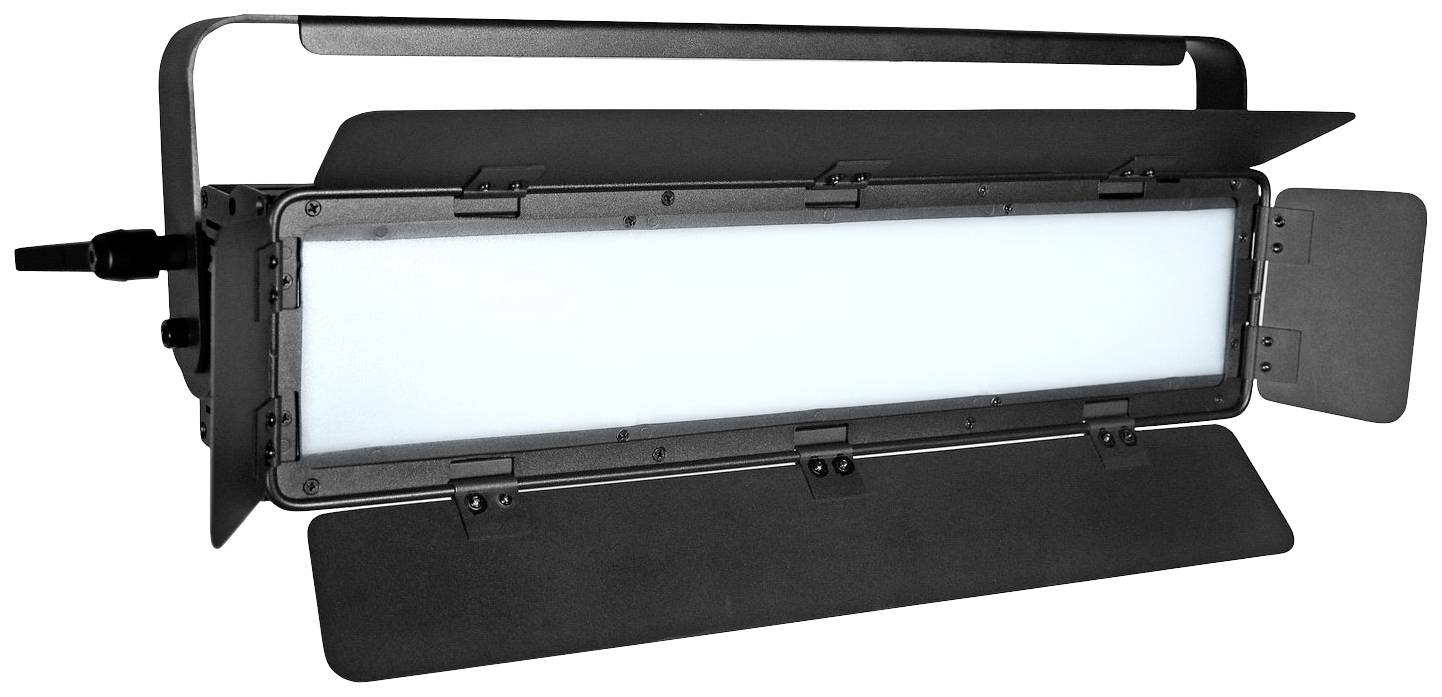

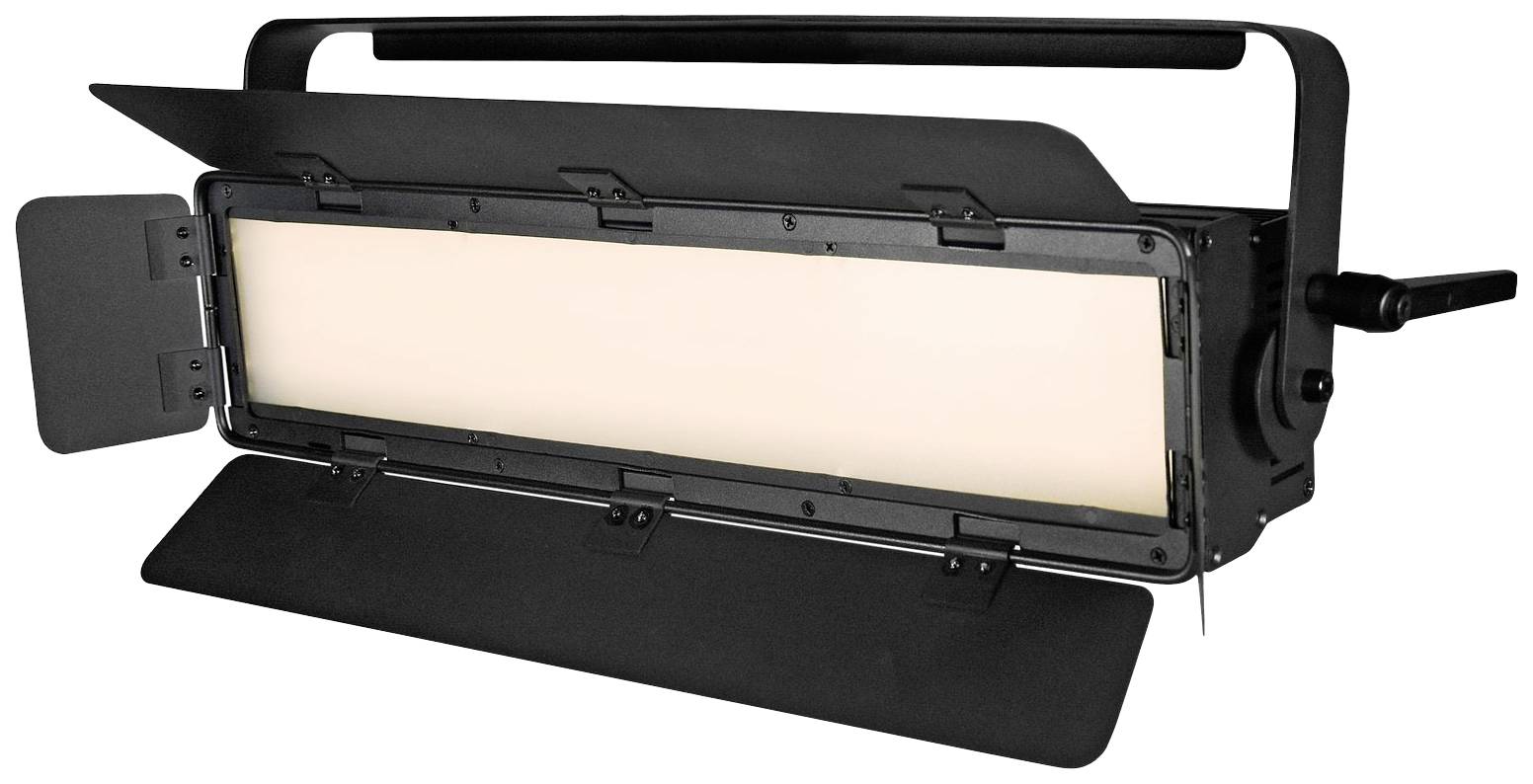

Eurolite LED PLL-432 CW/WW panel

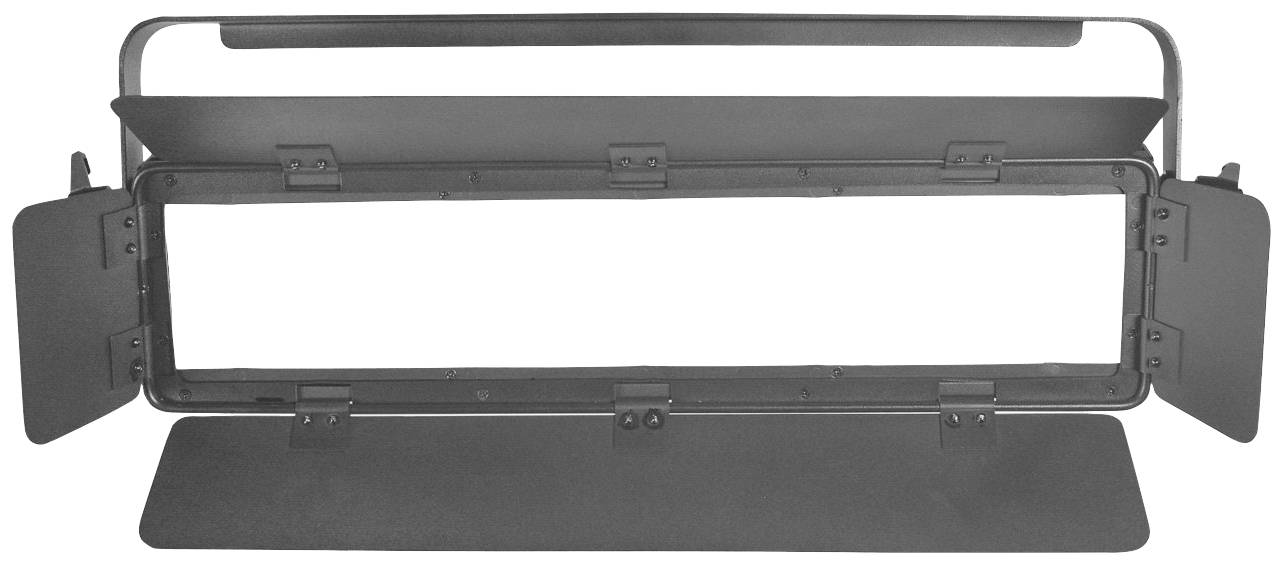

- Perfect glare and transport protection through 4 door panels
- Energy efficient, durable and environmentally friendly
- Variable color temperature 2800 K - 6500 K
Technical specifications
- Product type
DMX LED effect light
85 W
- LEDs
432
- Colour
Warm white to cool white
- Dim
(L x W x H) 603 x 179 x 208 mm
- Weight
4.6 kg
n.rel.
- Features
Dimmable
Wall and ceiling mount option
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
179 mm
- Height
208 mm
- Length
603 mm
- Watt per LED
0.197 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131187 Eurolite 40001894 PLL-432 DMX LED effect light No. of LEDs (details):432 0.197 W
Description
DMX-controllable surface lamp with 432 dual-white LEDs, Quick
DMX-socket and wing delimiter 432 high-performance LEDs SMD 2835 CW/WW
Pulse-width modulation variable
Stroboscope-effect
Integrated show programs
The device is cooled by passive convection cooling
Can be controlled via DMX; Speed selector potentiometer for brightness and color temperature; Stand-alone; Music control via microphone; Master/Slave function; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional)
Flicker-free
With an angle of radiation of 120°
Very high color rendering index (CRI)
With mounting bracket
LCD display
For application areas such as: Video and photography; stage; trade fair and shop fitting; installation
Pre-programmed by Light Captain
Power input and power output for simple connection of up to 8 devices
Robust handle
Noiseless operation
Possible application: On-the-fly; on a tripod
This text is machine translated.
DMX-socket and wing delimiter 432 high-performance LEDs SMD 2835 CW/WW
Pulse-width modulation variable
Stroboscope-effect
Integrated show programs
The device is cooled by passive convection cooling
Can be controlled via DMX; Speed selector potentiometer for brightness and color temperature; Stand-alone; Music control via microphone; Master/Slave function; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional)
Flicker-free
With an angle of radiation of 120°
Very high color rendering index (CRI)
With mounting bracket
LCD display
For application areas such as: Video and photography; stage; trade fair and shop fitting; installation
Pre-programmed by Light Captain
Power input and power output for simple connection of up to 8 devices
Robust handle
Noiseless operation
Possible application: On-the-fly; on a tripod
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 85 W
- LCD display type
- Protection class SK I
- Cooling: Passive convection cooling
- Housing colour black.
- Protection class: IP20
- Supporting system: Mounting bracket
- Carrying handle:1 pieces
- DMX control
- LED lamp type
- LED:432 X SMD 2835 CW/WW
- Adjustable color temperature 2800K - 6500K
- DMX channels: 2
- 6: 6
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- Pre-programmed with: Light Captain
- Beam angle: 120°
- Beam angle (1/2 peak) 120°
- Colour rendering index (CRI): 91 Ra
- Noise classification: Class 0 (no noise)
- Fuse: T 3 A fuse can be replaced
- DMX output 3-pin XLR (W) built-in version
- Illuminance (lx): 38 lx
- Music control via microphone: Music control via microphone
- CRMX by Lumen Radio via USB (optional): CRMX by LumenRadio via USB (optional)
- W-DMX by Wireless Solution via USB (optional): W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional): QuickDMX via USB (optional)
- Photobiological Safety: Risk Group 0
- 4/ 4
- Stand-alone: Stand-alone
- Warm white (WW) - 33 lx
- Every 1 m: 69 lx
- Speed-dial potentiometer for brightness and color temperature: Speed-dial potentiometer for brightness and color temperature
Scope of delivery
- Headlamps
- User manual
- Network cable/power cable
