Eurolite 40001899 PLL-576 DMX LED effect light No. of LEDs (details):576 0.28 W
EAN:
Part number:
Item no:
Highlights & Details

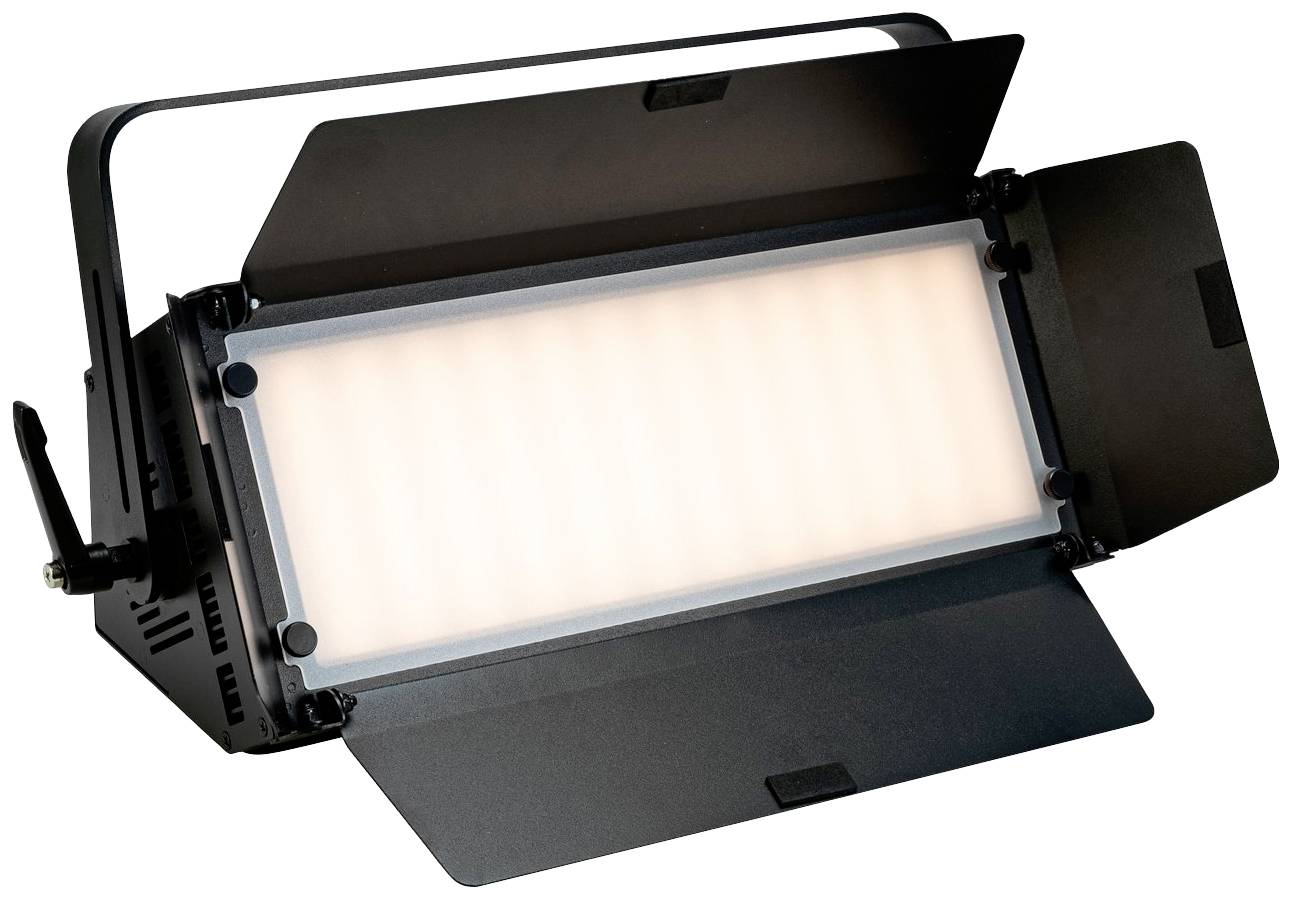

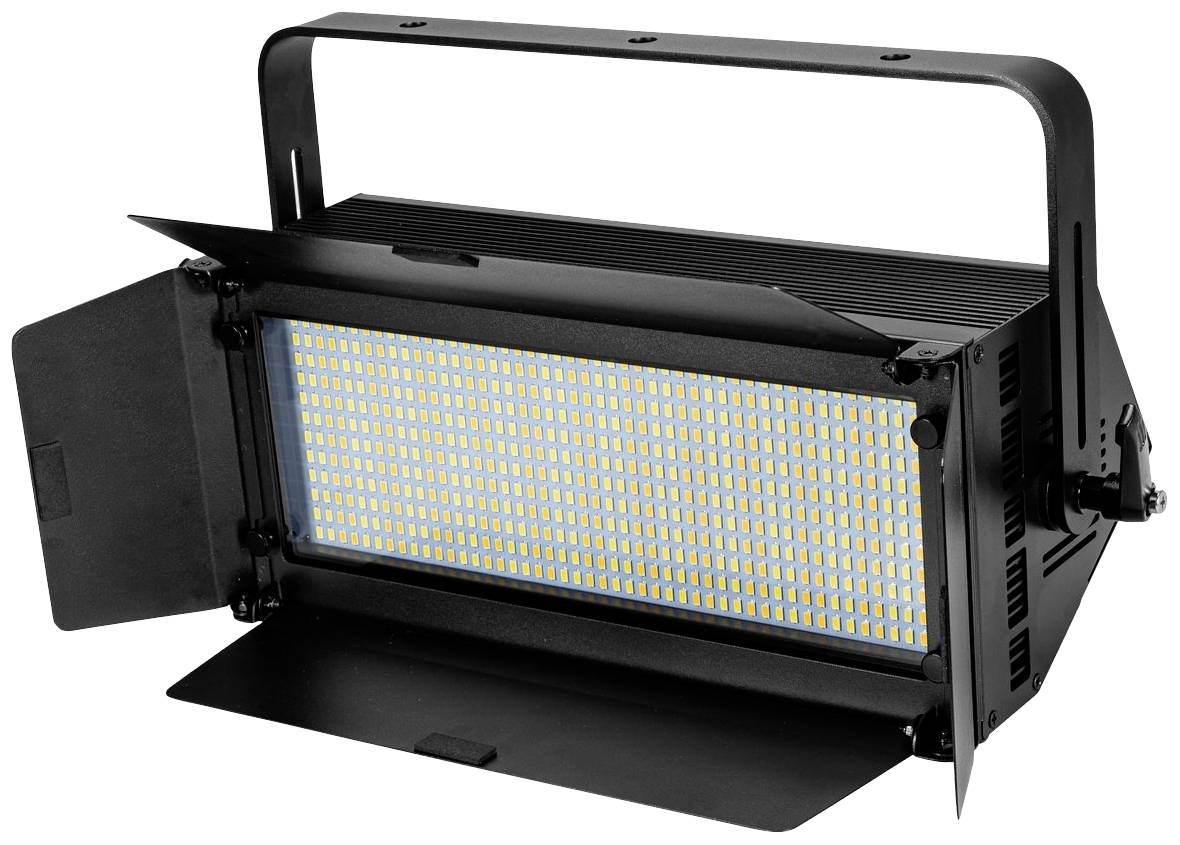

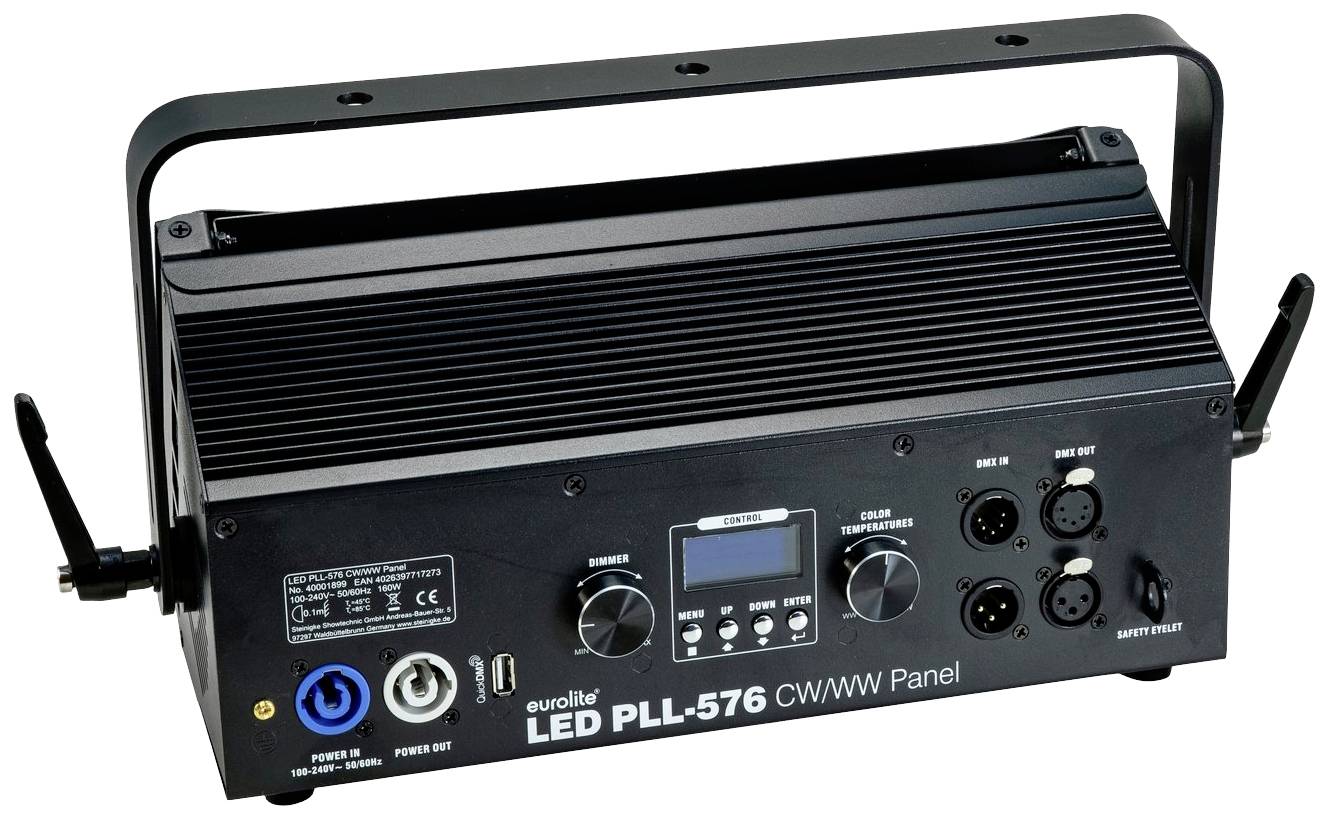

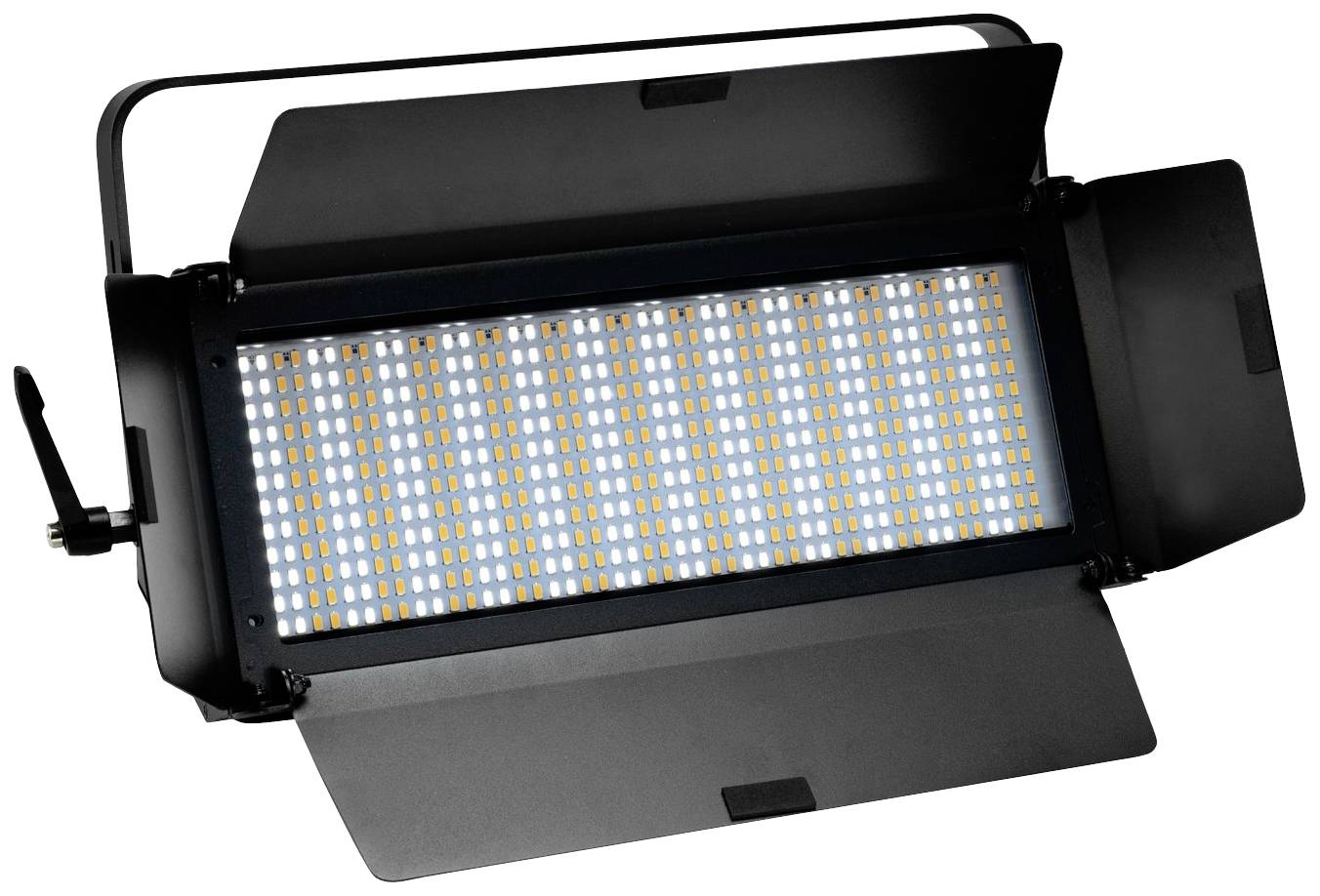

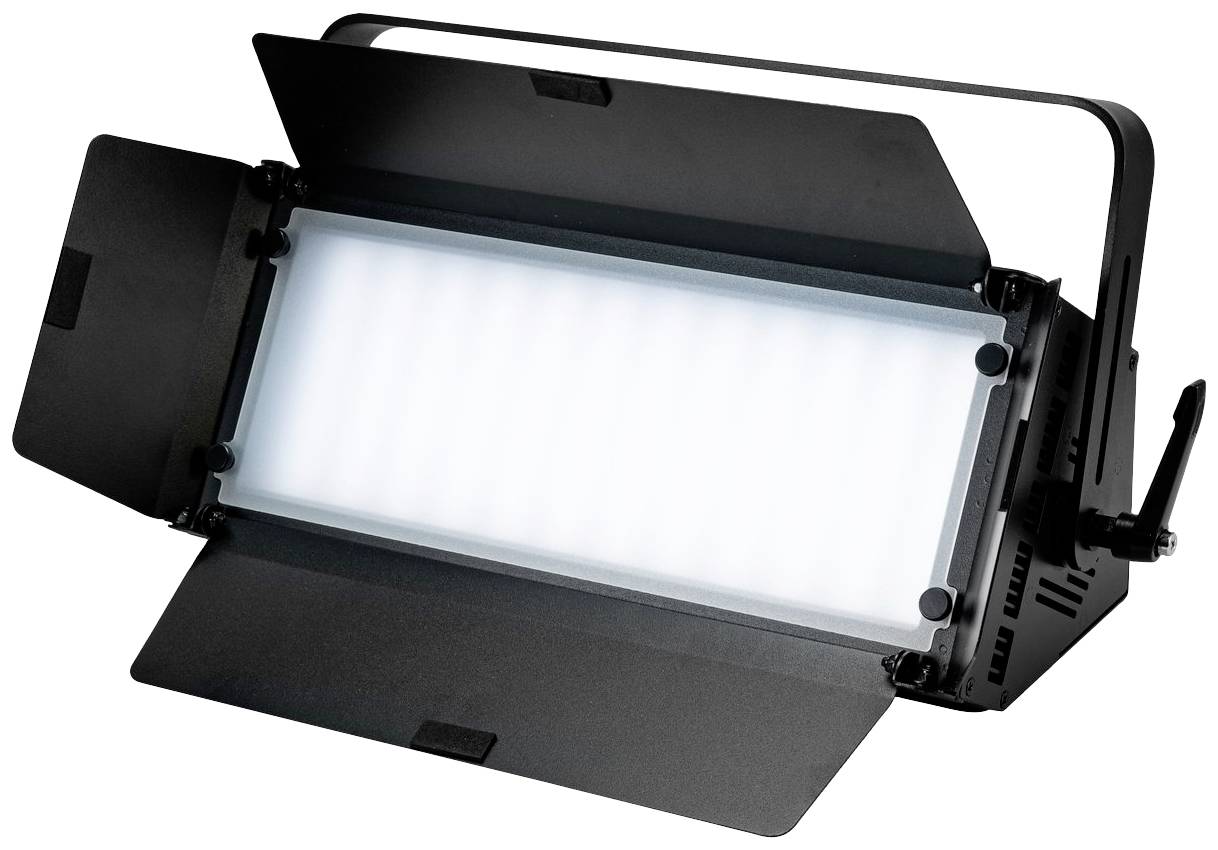

Eurolite LED PLL-576 CW/WW panel
- DMX-socket, diffuser and wing limiter
- 288 high-performance LEDs 0.5 W SMD 5730 warm-white (WW)
- 288 powerful LEDs 0.5 W SMD 5730 cold-white (CW)
- Variable color temperature 3000 K - 6000 K
Technical specifications
- Product type
DMX LED effect light
160 W
- LEDs
576
- Colour
Warm white to cool white
- Dim
(L x W x H) 440 x 198 x 223 mm
- Weight
6.55 kg
n.rel.
- Features
Dimmable
Wall and ceiling mount option
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
198 mm
- Height
223 mm
- Length
440 mm
- Watt per LED
0.28 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131188 Eurolite 40001899 PLL-576 DMX LED effect light No. of LEDs (details):576 0.28 W
Description
DMX-controllable surface lamp with 576 dual-white LEDs, Quick
Additional frost filter for a broad, homogeneous and soft light
Perfect glare and transport protection through 4 door panels
Direct color temperature selection for 69 preset values
Electronic dimmer
Flicker-free
With an angle of radiation of 120°
The device is cooled by a temperature controlled fan
Very high color rendering index (CRI)
LCD display
Rubber feet
Controllable via DMX; Master/Slave function; Stand-alone; Speed selector potentiometer for brightness and color temperature; CRMX by Lumen Radio via USB (optional); QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional)
With mounting bracket
For application areas like: Video and photography; stage; trade fair and shop building; distributor
Power input and power output for simple connection of up to 8 devices
Pre-programmed by Light Captain
Very quiet operation
Possible application: On-the-fly; standing; on a tripod
This text is machine translated.
Additional frost filter for a broad, homogeneous and soft light
Perfect glare and transport protection through 4 door panels
Direct color temperature selection for 69 preset values
Electronic dimmer
Flicker-free
With an angle of radiation of 120°
The device is cooled by a temperature controlled fan
Very high color rendering index (CRI)
LCD display
Rubber feet
Controllable via DMX; Master/Slave function; Stand-alone; Speed selector potentiometer for brightness and color temperature; CRMX by Lumen Radio via USB (optional); QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional)
With mounting bracket
For application areas like: Video and photography; stage; trade fair and shop building; distributor
Power input and power output for simple connection of up to 8 devices
Pre-programmed by Light Captain
Very quiet operation
Possible application: On-the-fly; standing; on a tripod
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 160 W
- Power supply: Power feed via P-Con (blue), installation version power supply cable with safety plug
- LCD display type
- Protection class SK I
- Cooling: Fan temperature controlled
- Housing colour black.
- Protection class: IP20
- Supporting system: Mounting bracket
- DMX control
- Transport aid: Rubber feet
- Width 19.8 cm
- LED lamp type
- LED:288 x 0.5 W SMD 5730 cold-white (CW)
- Colour temperature 3000K - 6000K can be set
- DMX channels: 2-1
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- Pre-programmed with: Light Captain
- Beam angle: 120°
- Beam angle (1/2 peak) 120°
- Colour rendering index (CRI): 93 Ra
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- DMX output 3-pin XLR (W) built-in version
- Illuminance (lx): 134 lx
- Power output 1 x P-Con (gray), installation version
- CRMX by Lumen Radio via USB (optional): CRMX by LumenRadio via USB (optional)
- W-DMX by Wireless Solution via USB (optional): W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional): QuickDMX via USB (optional)
- Stand-alone: Stand-alone
- Warm white (WW) - 132 lx
- Every 1 m: 204 lx
- Quick selection potentiometer for brightness and color temperature
- 288 x 0.5 W SMD 5730 warm white (WW)
- 5-pin XLR (M) installation version
- 5-pin XLR (W) installation version
Scope of delivery
- Headlamps
- User manual
- Network cable/power cable
- Diffuser disk
- 4 x Knurled screw
