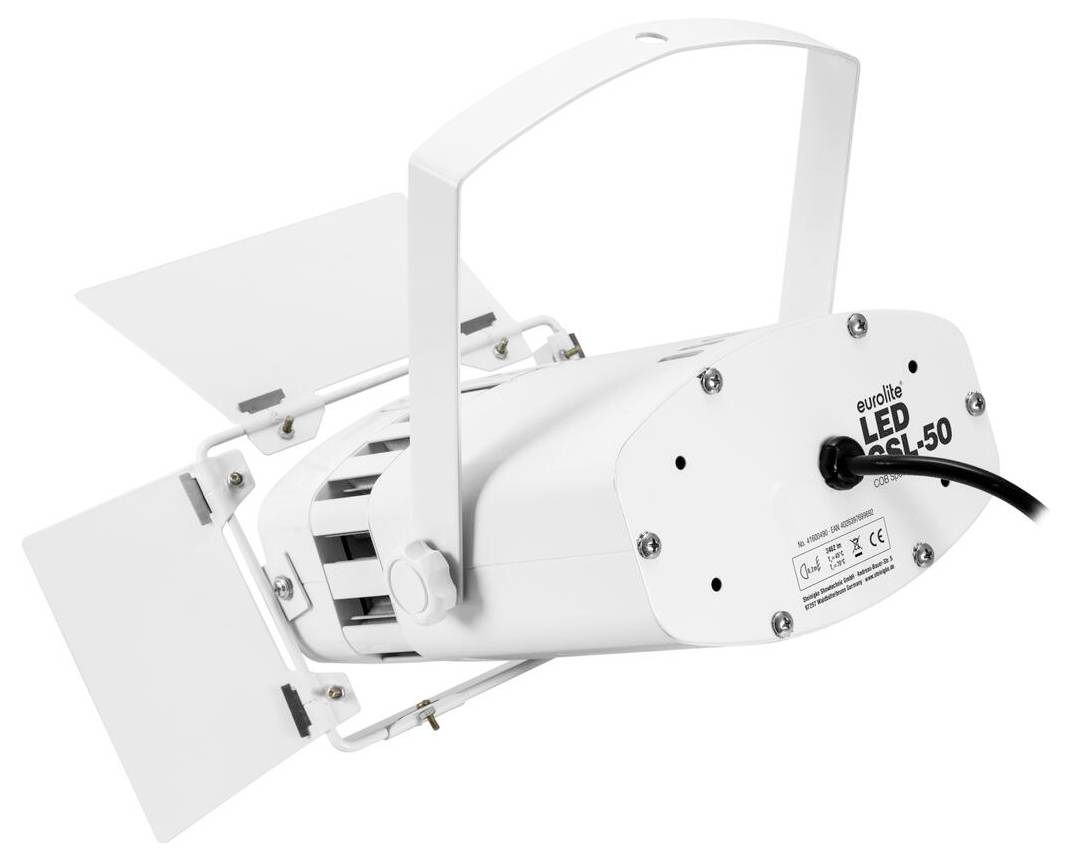

Eurolite 41600490 CSL-50 DMX LED effect light No. of LEDs (details):1 70 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
50 W
- LEDs
1
- Colour
Neutral white
- Dim
(L x W x H) 21.0 x 10.5 x 14.5 cm
- Weight
2.00 kg
n.rel.
- Features
Wall and ceiling mount option
- Factory colour
Silver-grey
- Bulb type
LED (monochrome)
- Width
10.5 cm
- Height
14.5 cm
- Length
21.0 cm
- Watt per LED
70 W
- Cable length
0.8 m
- Depth
2.5 cm
IP20
- Case colour
White (matt)
- Material
Metal
- Radiation angle
50°
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642517 Eurolite 41600490 CSL-50 DMX LED effect light No. of LEDs (details):1 70 W
Description

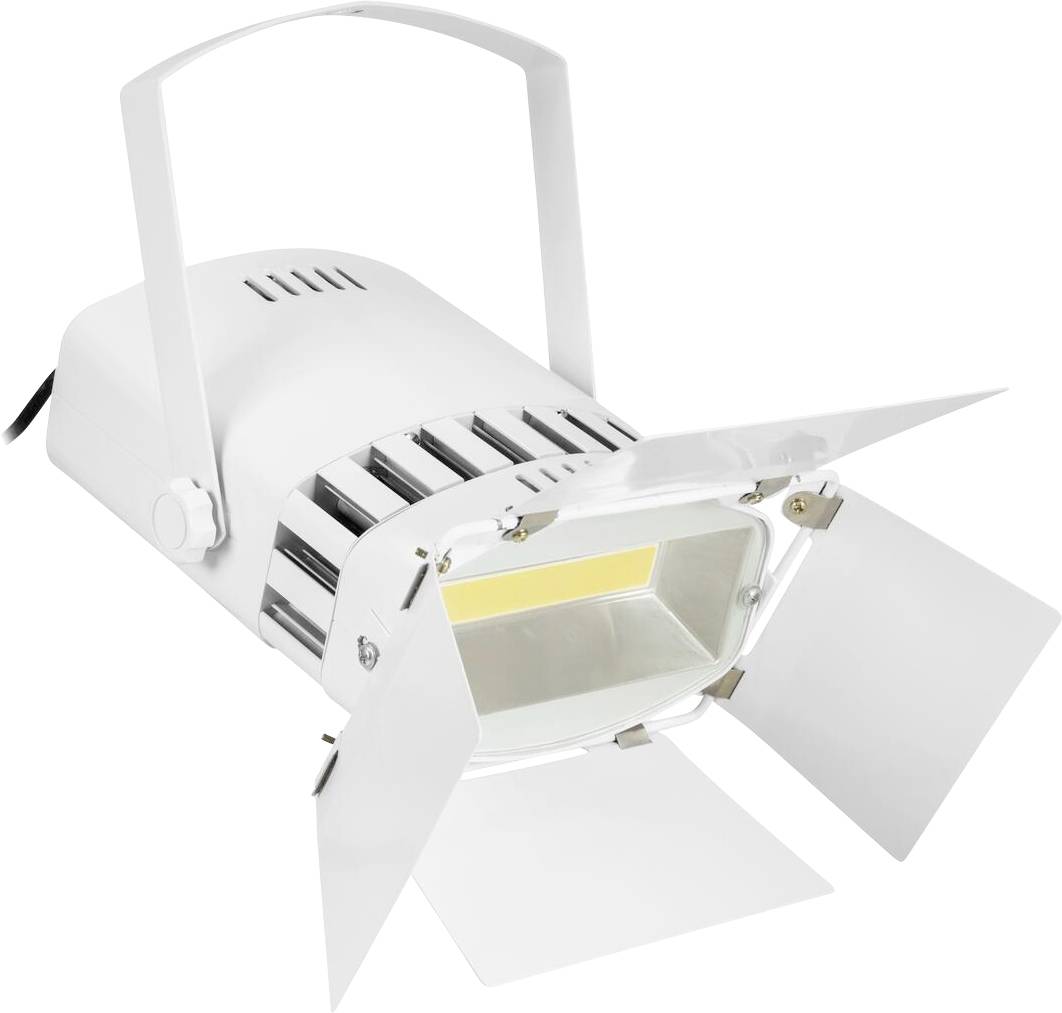

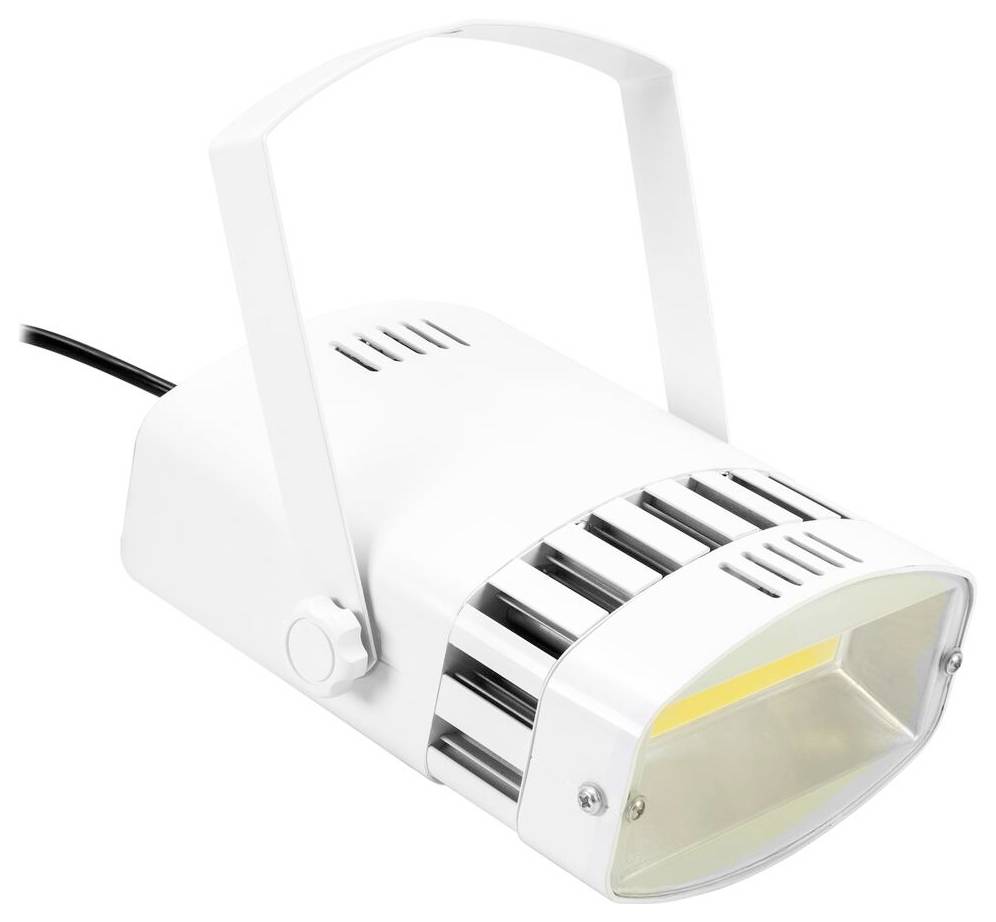

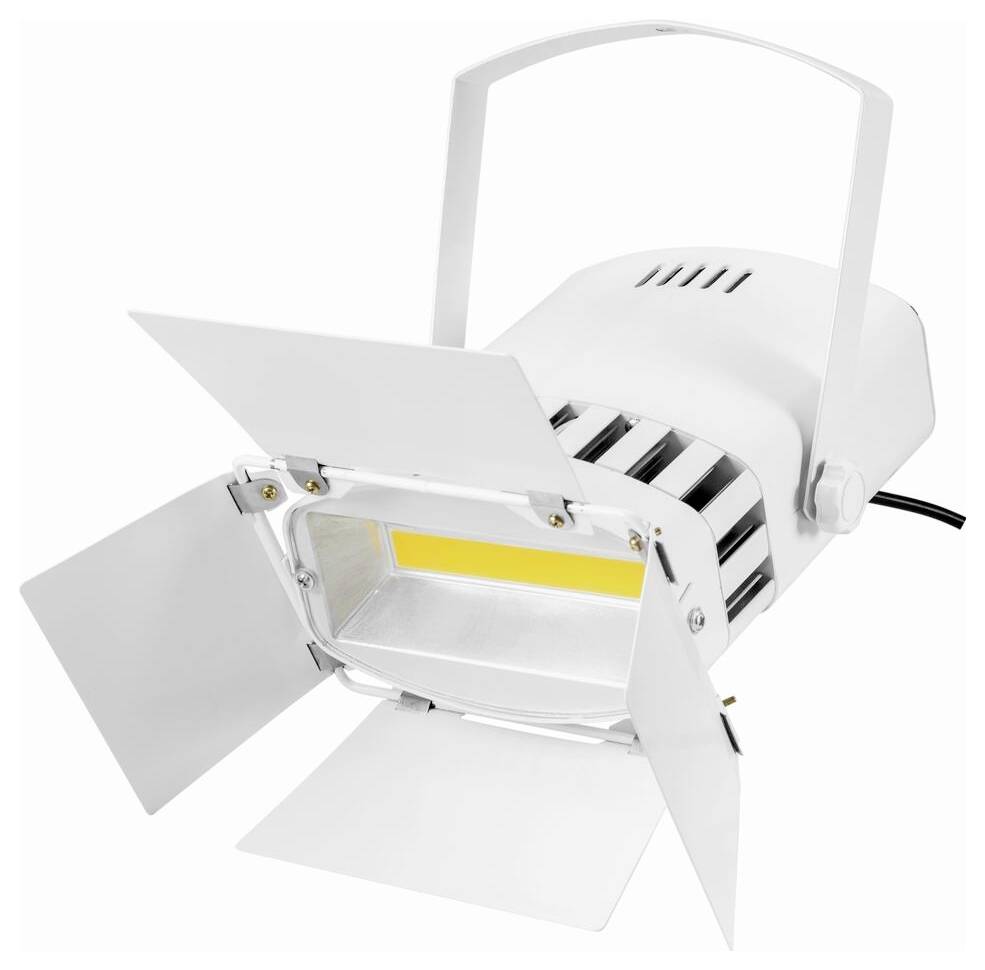

Powerful 50 W emitter with neutral white light. 1 powerful LED 70 W COB (chip-on-board) neutral white (NW). The device is cooled by passive convection cooling. Can be controlled via plug and play. With an angle of radiation of 50°. Good color reproduction index (CRI). With mounting bracket. For application areas like: Trade fair construction and shop building; advertising/display windows; restaurants, bars and hotels. Noiseless operation Possible application: Flying; on stand; wall mounting
This text is machine translated.
This text is machine translated.
Features
- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 50 W; protection class: IP20; protection class: SK I; Power connection: Fixed power connection cable with safety plug; construction cable: 3 90 x 0.75 83 mm² H05VV-F; cable length: approx. 0.8 1/10 m; type of lamp: LED lamp; LED type: 1 x 70 W COB (chip-on-board) neutral white (NW); cooling: passive convection cooling; control: plug and play; beam angle: 50°; beam angle (1/2 peak): 50°; color resolution: 4190K; color Illuminance (lx): 1m: 2787 lx, 3M: 366 lx, 6m: 108 lx; Luminous flux: 3462 lm; Housing color: matt white; Recording system: Mounting bracket; Material: cast aluminum; Metal; Dimensions: Length: 21.0 cm; Width: 20.5 cm; Height: 22.0 cm; Weight: 2.00 kg; Noise classification: Class 0 (no noise); Energy efficiency class (A - G): G; EPREL No.: 1023949; Fan limiter; Diameter Mounting holes: 2 x Ø4mm; Material: metal, 1 mm; Colour: white, matt; Mounting bracket; Diameter mounting holes: 1 x Ø10mm; 1 x Ø8mm; Material: metal, 2 mm; Colour: white Dimensions: Width: 19.7 cm; Depth: 2.5 cm; Height: 14.5 cm; Holder; Diameter Mounting holes: 1 x Ø10mm; 6 x Ø4mm; Material: Metal, 2.5 mm; Colour: Silver gray, Zinc-coated; dimensions: length: 10.5 cm; width: 2.8 cm
Scope of delivery
- 1 x spotlights
- 1 x Barn doors
- 1 x mounting bracket
- 1 x holder
- 1 x Screws
- 1 x nuts
- 1 x Operating manual
