1/10
Eurolite 41700020 AKKU IP Flat Light 3 sw DMX LED effect light No. of LEDs (details):3 8 W
EAN:
Part number:
Item no:
Highlights & Details

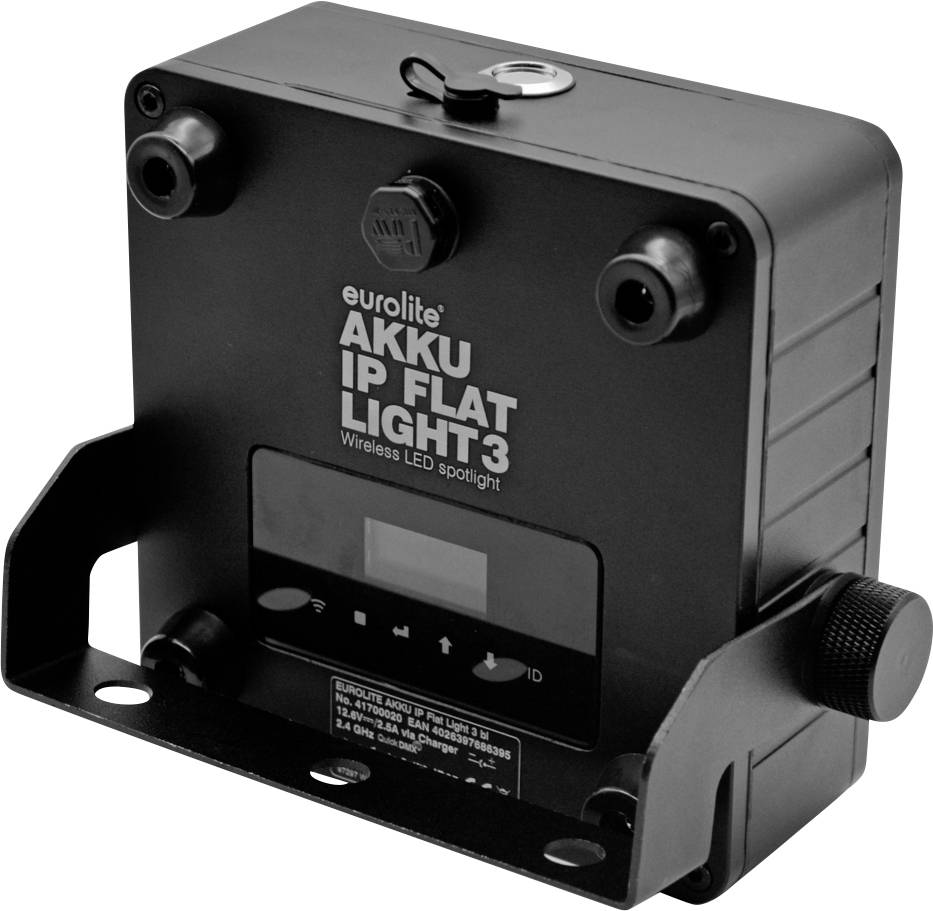

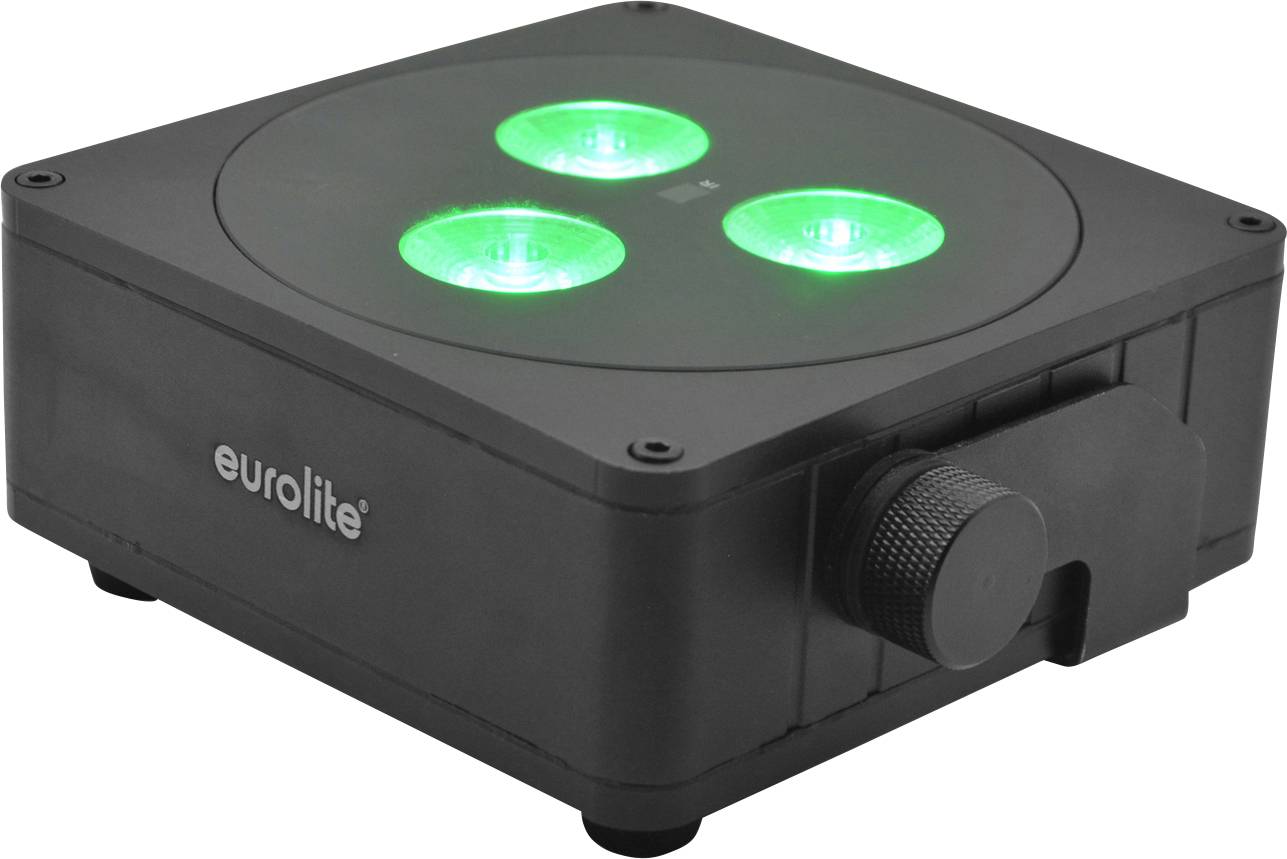

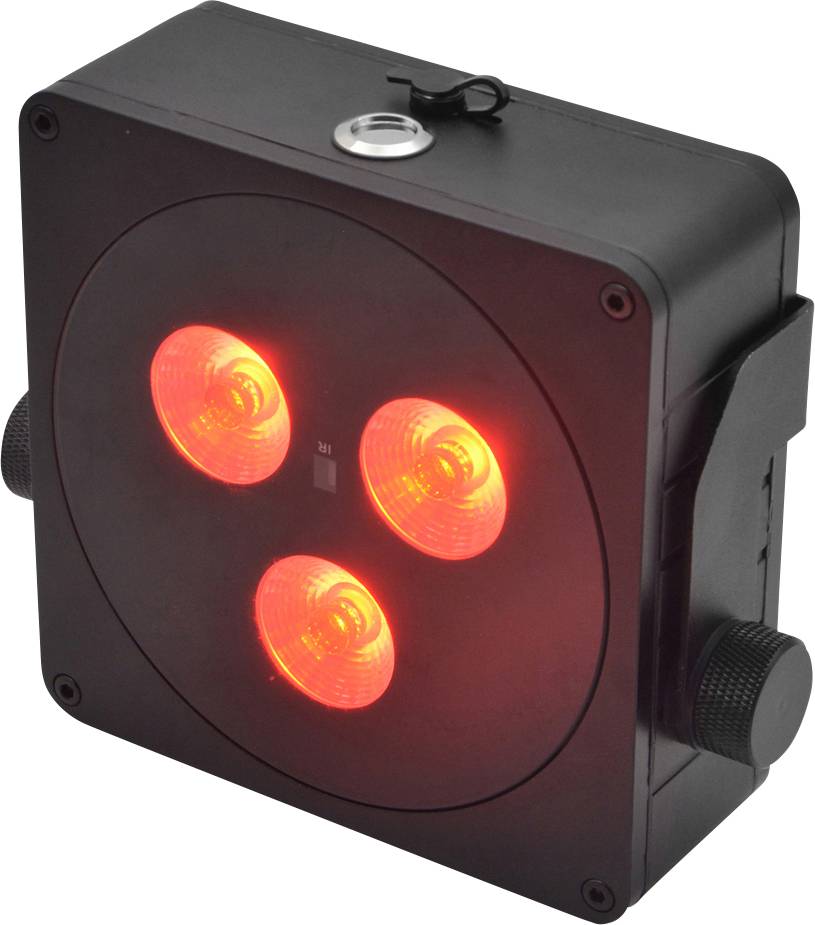

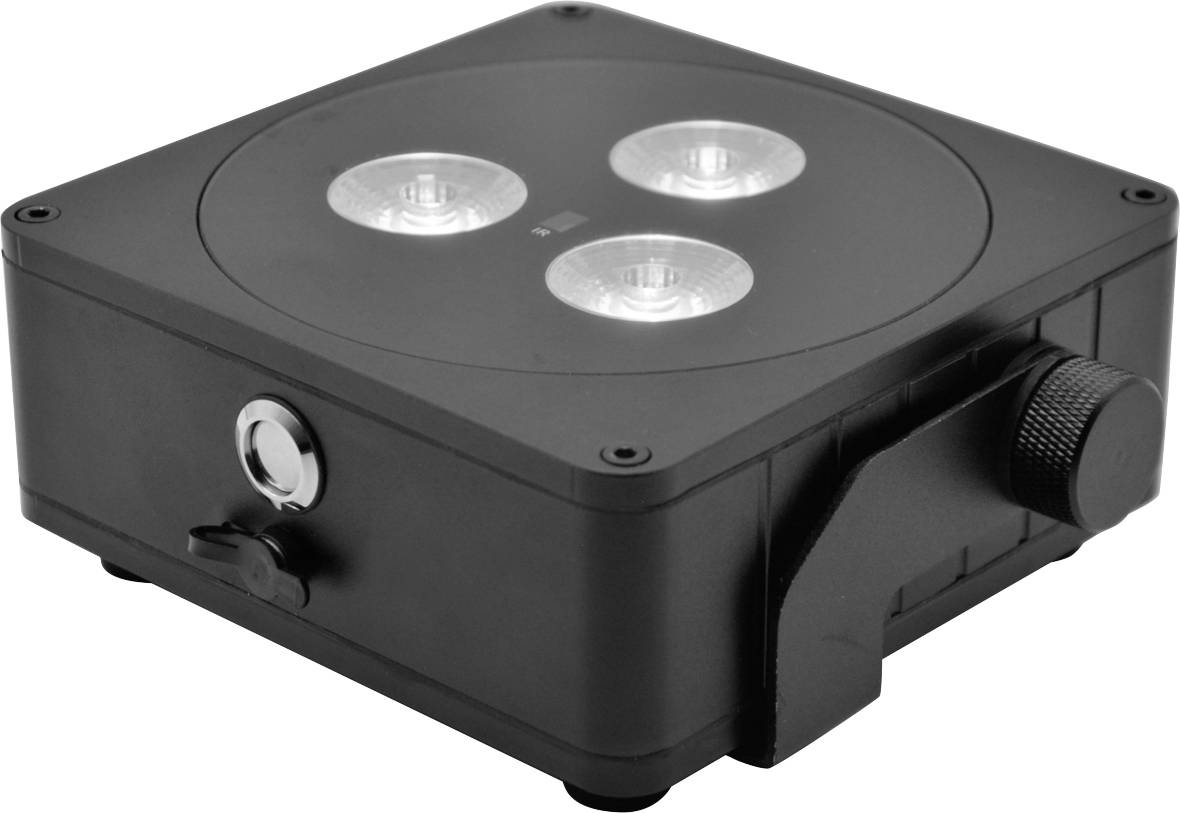

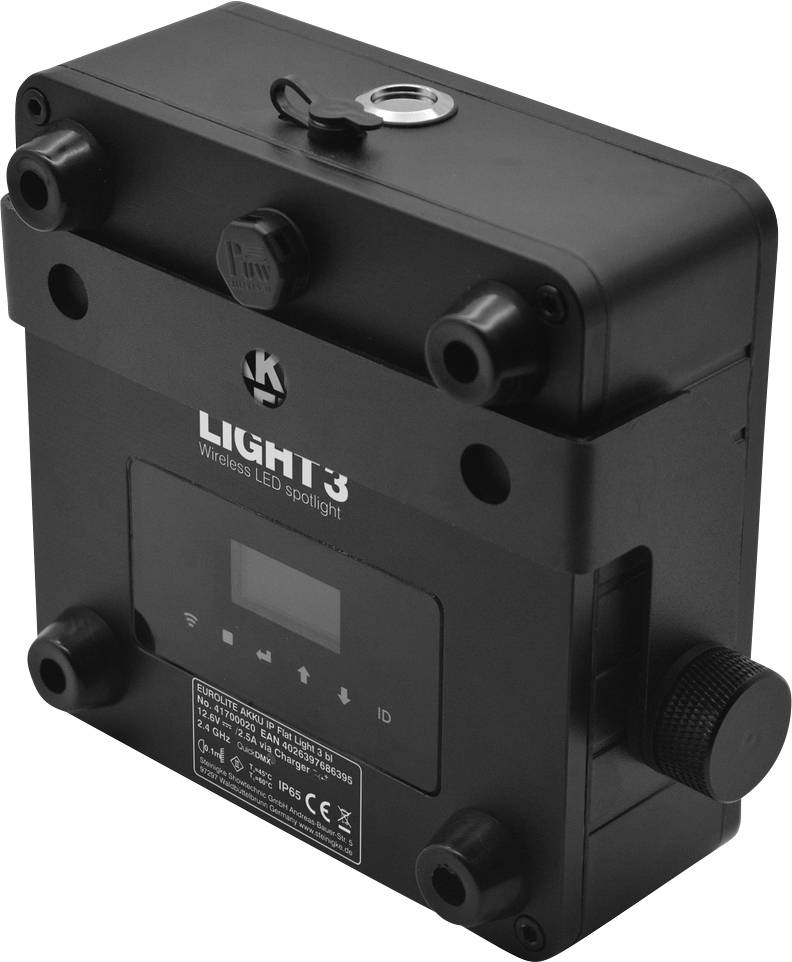

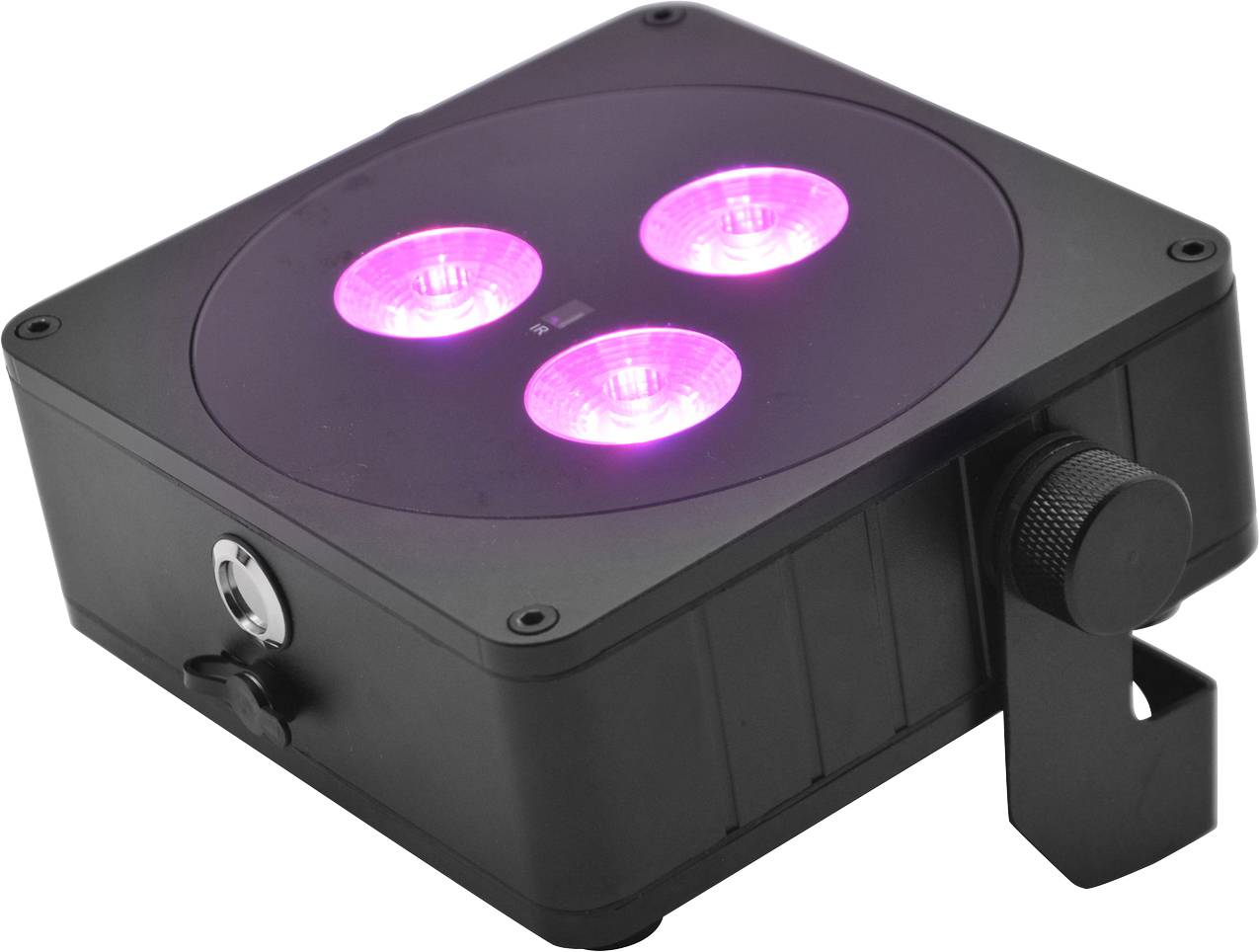

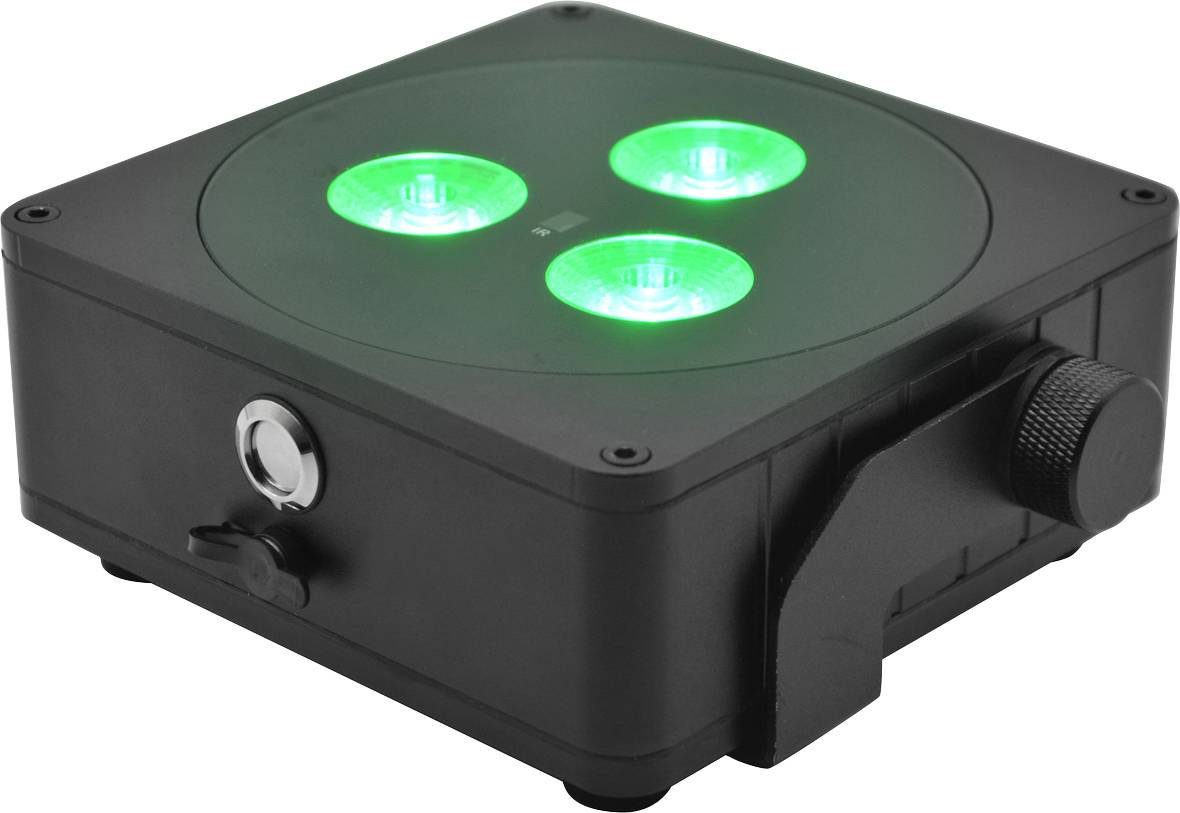

Eurolite BATTERY IP Flat Light 3 black
- With QuickDMX transceiver - wireless, flexible and versatile
- Compact and bright
- For outdoor use (IP65)
Technical specifications
- Power supply 100 - 240 V AC, 50/60 Hz, 12.6 V DC 2.5 A
- Protection system: IP65
- Protection class SK III.
- Power connection: Power feed hollow plug (M) Built-in version Power connection cable with Euro plug (included)
- Battery/battery type: 1 x Lithium-Ion 11.1 V, 5200 mAh, 57.72 Wh
- Battery: Operating time up to 16 h depending on the program used
- Charging time: 4 h
- Type of lamp: LED lamp
- LED: 3 x high-power 8 W 4in1 QCL RGBW (homogeneous color mixing)
- Flash rate 1 - 23 Hz.
- DMX channels: 3; 4; 6; 8; 10
- Cooling: Passive convection cooling
- Beam angle: 15°
- Beam angle (1/2 peak): 15°
- Beam angle (1/10 peak): 33°
- Housing colour black.
- Display type: LCD display
- Carrier frequency 2.4 GHz
- Remote control Battery: 1 x button cell 3.0 V CR2032 Lithium integrated
- Product type
DMX LED effect light
24 W
- LEDs
3
- Colour
RGBW
- Dim
(L x W x H) 138 x 172 x 62 mm
- Weight
1.61 kg
n.rel.
- Features
Battery-powered
Audio control via built-in mic
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
172 mm
- Height
62 mm
- Length
138 mm
- Watt per LED
8 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2375220 Eurolite 41700020 AKKU IP Flat Light 3 sw DMX LED effect light No. of LEDs (details):3 8 W
Description
Flat IP65 headlight with 3 x 8 W RGBW LED, QuickDMX transceiver & bracket.
This text is machine translated.
This text is machine translated.
Features
- With integrated QuickDMX radio transmitter/receiver for wireless transmission of DMX512 signals
- Operation via built-in lithium-ion battery with up to 16 hours operating time
- Built-in automatic charging with charging indicator
- Functions: Static colors, continuous RGBW color mixing, internal programs, dimmer, strobe effect with variable speed
- Adjustable dimmer speed (step response)
- Addressing and setting via control board with touch-sensitive keys and LCD
- Hanging as well as standing mounting is possible
- Angle of inclination manually adjustable via the bracket
- Charger included
- Switched-mode power supply technology for mains voltage between 100 and 240 volts
- DMX512 control via any standard DMX controller and a suitable radio transmitter is possible
- LED: 3 x high-power 8 W 4in1 QCL RGBW (homogeneous color mixing)
- Can be operated in 3; 4; 6; 8; 10 CH DMX mode
- The device is cooled by passive convection cooling

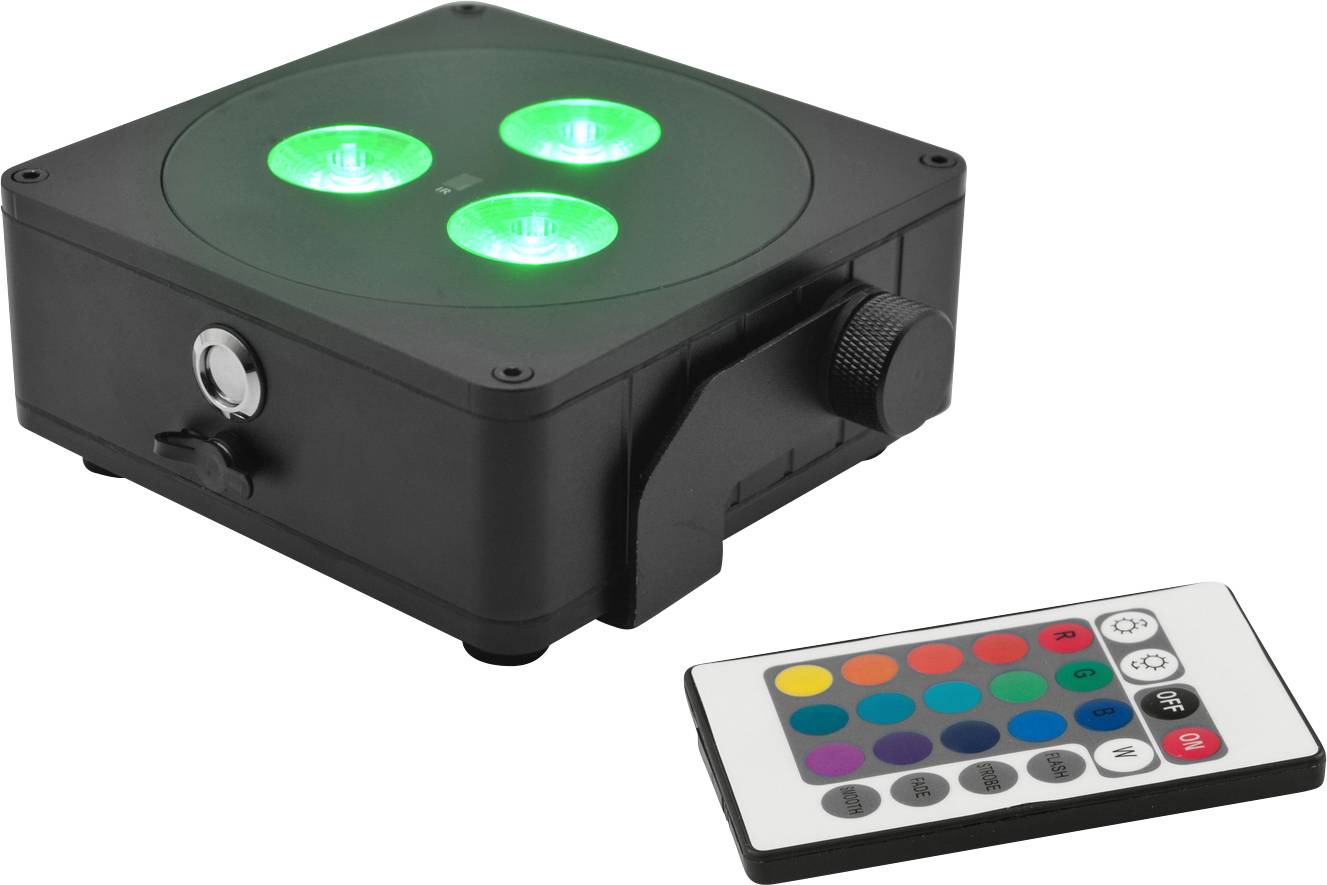

- Controllable via master/slave function; IR remote control (included); integrated QuickDMX; stand-alone; music control via microphone
- Is already pre-programd in the Light J software
- Flicker-free projection
- Suitable for outdoor use
- For applications such as: Small rental; rental; wedding/gala
- Control: Master/slave function; IR remote control (included); integrated QuickDMX; stand-alone; music control via microphone; Light J software
- Legal Specifications:
- Subject to eco-design: Yes
- Special product: Not intended for domestic lighting
- Intended use: Lighting for show effects.
