Eurolite 41700503 TL-3 TCL Trusslight LED effect light No. of LEDs (details):3
EAN:
Part number:
Item no:
Technical specifications
- 3 x 3 W high power 3 in 1 TCL RGB (homogeneous color mixing)
- Flash rate 0 - 23 Hz
- DMX channels 3; 5; 8

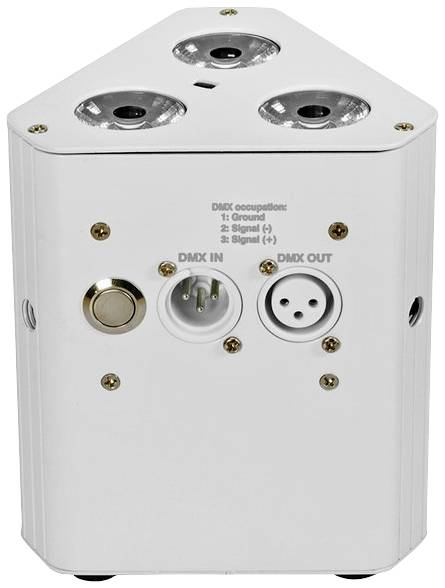

- DMX input 1 x 3-pin XLR (M) installation version
- DMX output 1 x 3-pin XLR (W) built-in version
- Battery type 1 x Lithium-Ion 11.1 V/4400 mAh/48.84 Wh
- Cable length approx. 1.2 m
- Pre-programmed with: Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
- Beam angle: 11°
- Beam angle (1/2 peak) 11°
- Beam angle (1/10 peak) 24°
- Carrier frequency 2.4 GHz
- Protection class: IP20
- Product type
LED effect light
- LEDs
3
- Colour
RGB
- Dim
(L x W x H) 108 x 121 x 145 mm
- Weight
1300 g
n.rel.
- Bulb type
LED (monochrome)
- Width
121 mm
- Height
145 mm
- Length
108 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898780 Eurolite 41700503 TL-3 TCL Trusslight LED effect light No. of LEDs (details):3
Description
Truss-interior light with 3 x 3-W-3in1-LED with QuickDMX-Transceiver compact and bright.
This text is machine translated.
This text is machine translated.
Features
- Ideal for Alutruss DECOLOCK DQ3 3-point system
- Integrated QuickDMX transceiver for wireless DMX control
- Thread for installation on cross beams

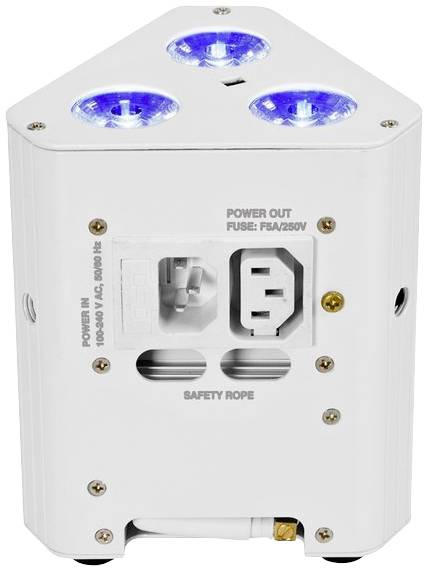

- Power input and power output for simple connection of up to 8 devices
- Battery life up to 16 h depending on the program used
- 3 powerful LEDs 3 W high-power 3-in-1 TCL RGB (homogeneous color mixing)
- Electronic dimmer; continuous color mixing; adjustable color change; dimmer curves with adjustable response
- Stroboscope-effect
- Can be used in 3; 5; 8 CH DMX mode
- The device is cooled by passive convection cooling
- Can be controlled via IR remote control; DMX; QuickDMX; music control via microphone; stand-alone
- Pre-programmed at Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
- Flicker-free
- With an angle of radiation of 11°
- For application areas like: Small rental; wedding/gala/events; trade fair and shop building; stage
- Noiseless operation
Scope of delivery

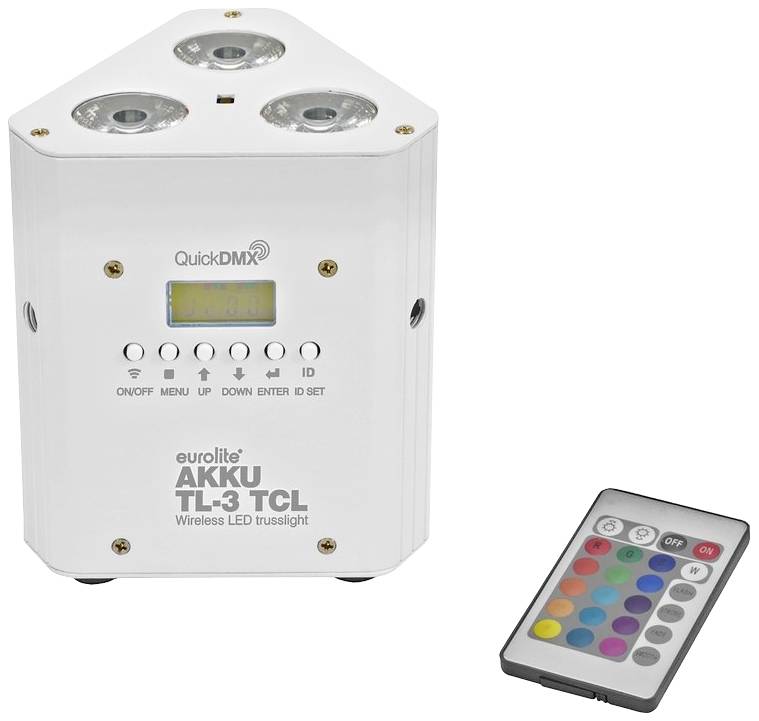

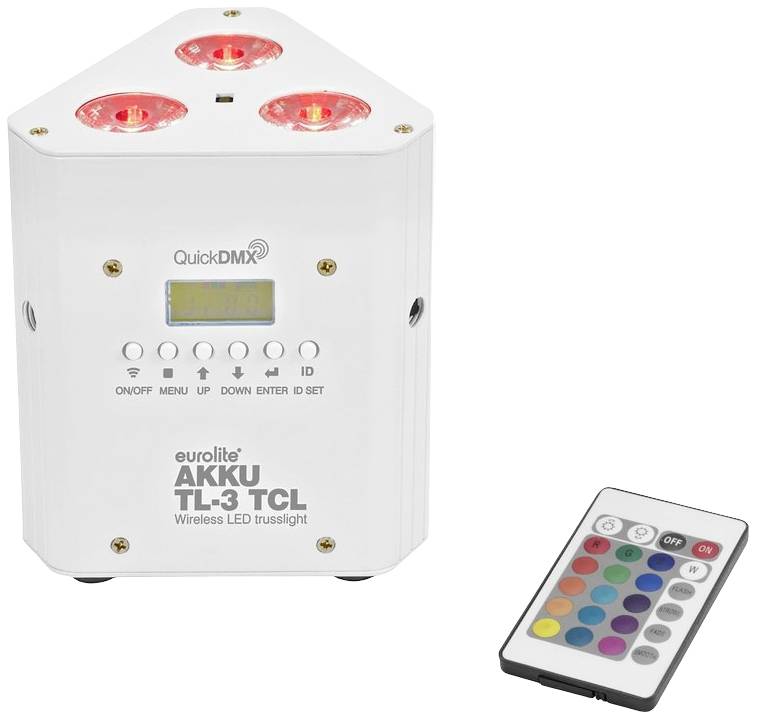

- TL-3 TCL Truss light
- Remote control
- Battery
- Power cable;
- User manual
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
