Eurolite 41700510 AKKU TL-3 QCL RGB+UV Trusslight LED effect light No. of LEDs (details):3 4 W
EAN:
Part number:
Item no:
Highlights & Details
EUROLITE BATTERY TL-3 QCL RGB+UV TRUSLIGHT
- Compact and bright
- Wireless and versatile
- 3 powerful 4 W RGB + UV LEDs (4in1)
Technical specifications
- Power supply 100 - 240 V AC, 50/60 Hz
- Protection class: IP20
- Power connection: Battery/rechargeable battery installed
- Power feed: Cold devices (M) Built-in version Power connection cable with earthing contact plug (included)
- Power output: Cold-devices (W) built-in version
- Fuse: F 1 A fuse can be replaced
- Battery type: 1 x Lithium-Ion 11.1 V, 2200 mAh, 24.42 Wh
- Battery: Operating time up to 8 h depending on the program used
- Charging time 2.5 h
- Type of lamp: LED lamp

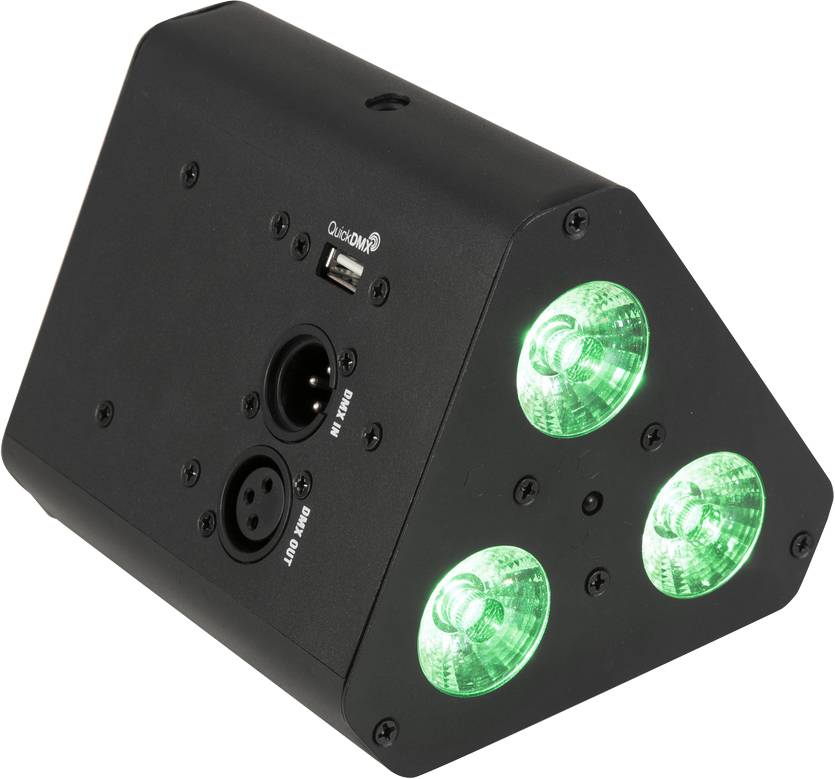

- LED: 3 x high-power 4 W 4in1 QCL RGB/UV (homogeneous color mixing)
- Flash rate 0 - 20 Hz
- DMX channels: 2; 4; 5; 6; 9

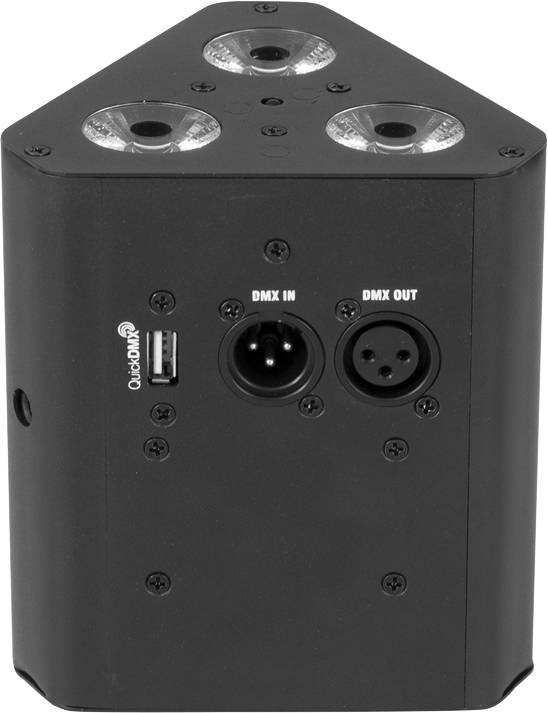

- DMX input: 3-pin XLR (M) mounted version
- DMX output: 3-pin XLR (W) mounted version
- Cooling: Passive convection cooling
- Beam angle: 10°
- Beam angle (1/2 peak): 10°
- Beam angle (1/10 peak): 33°
- Housing colour black.
- Product type
LED effect light
4 W
- LEDs
3
- Colour
RGB
UV/blacklight
- Dim
(L x W x H) 108 x 122.2 x 143 mm
- Weight
1.3 kg
n.rel.
- Features
Incl. remote control
Audio control via built-in mic
Battery-powered
UV/blacklight
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
122.2 mm
- Height
143 mm
- Length
108 mm
- Watt per LED
4 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2375221 Eurolite 41700510 AKKU TL-3 QCL RGB+UV Trusslight LED effect light No. of LEDs (details):3 4 W
Description
Battery-Truslight with RGB+UV-LEDs and IR-remote control. ideal for stand construction, on stages and wherever Trussing is used
This text is machine translated.
This text is machine translated.
Features

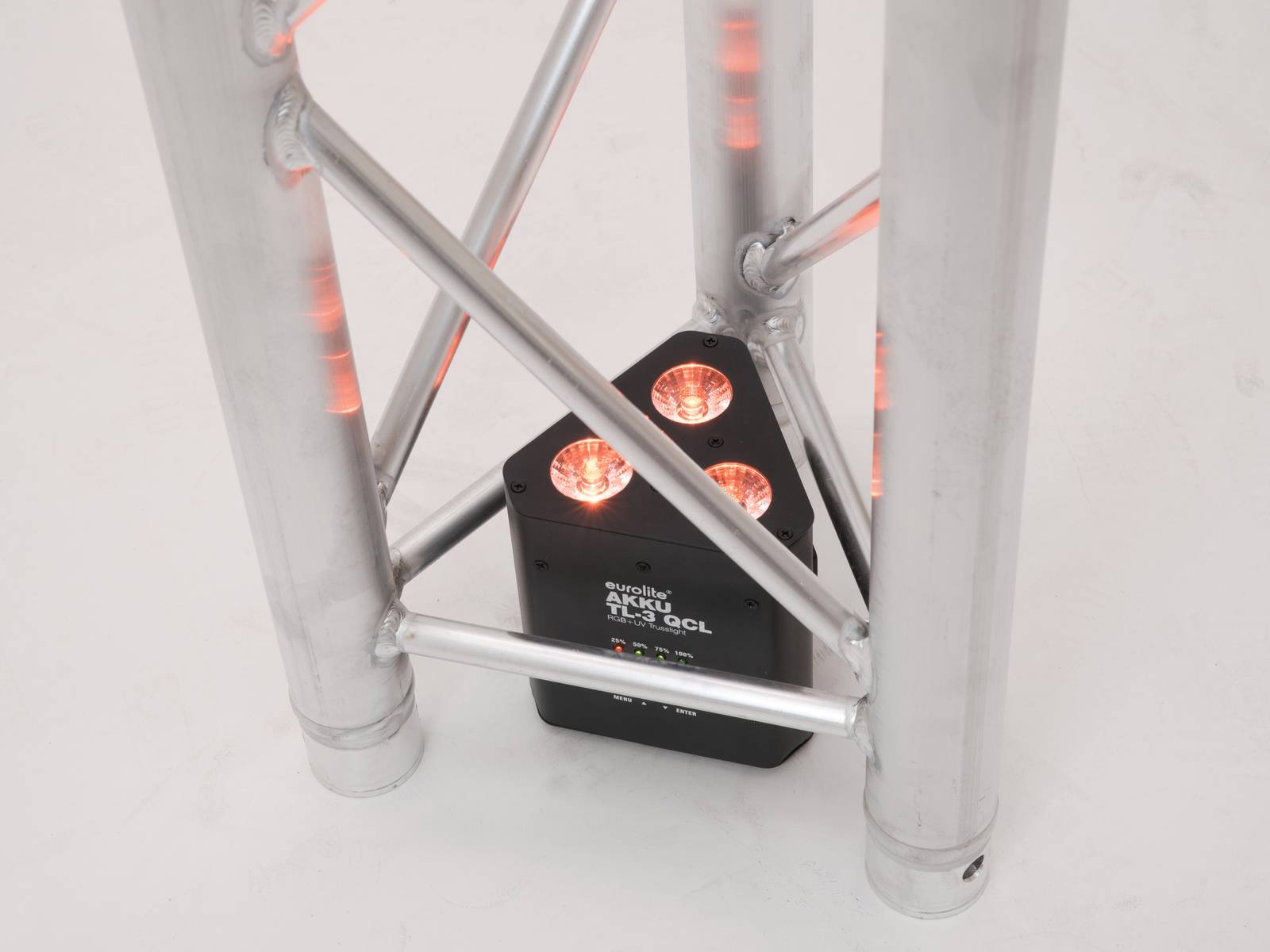

- ideal for Alutruss Decolock DQ3 3-point system
- Battery operation for up to 10 hours
- power-saving mode
- Auto, sound, master/slave and DMX mode
- Music control via in-built microphone with adjustable microphone sensitivity
- Compatible with QuickDMX - the radio DMX system from Eurolite
- Phantom-powered USB socket for QuickDMX receiver (accessories)
- Integrated show programs in auto and sound mode
- Direct color selection for 20 colors
- Color temperature can be set in 10 settings from 2700 to 8000 K.
- Continuous RGB+UV color mixing, color change, color blending, dimmer and strobe effect with variable speed, music control, white balance

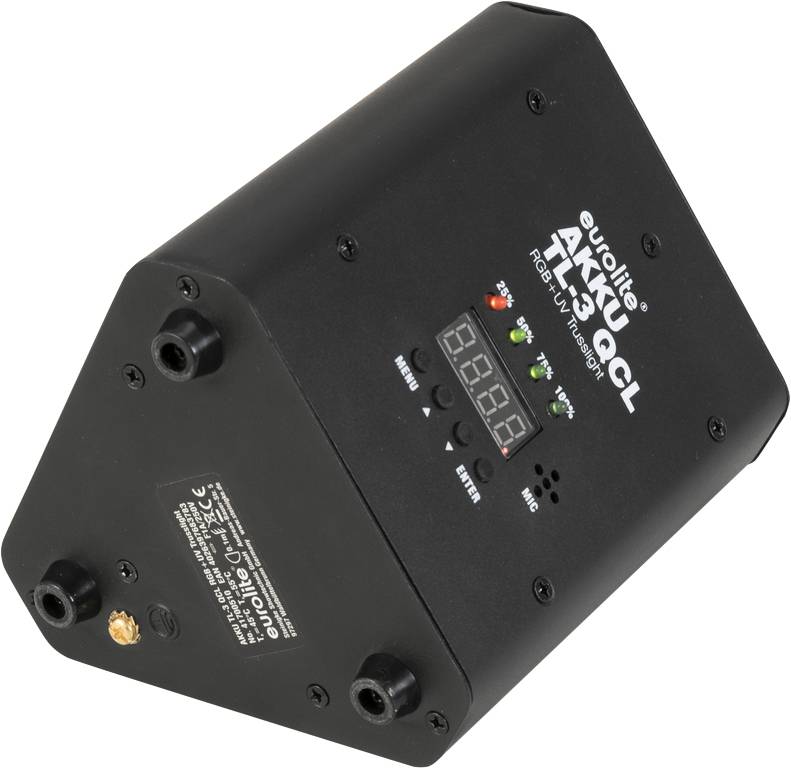

- Addressing and settings via control unit with four-digit LED display
- Convenient remote control via the supplied IR remote control Eurolite IR-7
- Thread for installation on crossbars
- Additional rubber feet protect the device when it is placed on the floor

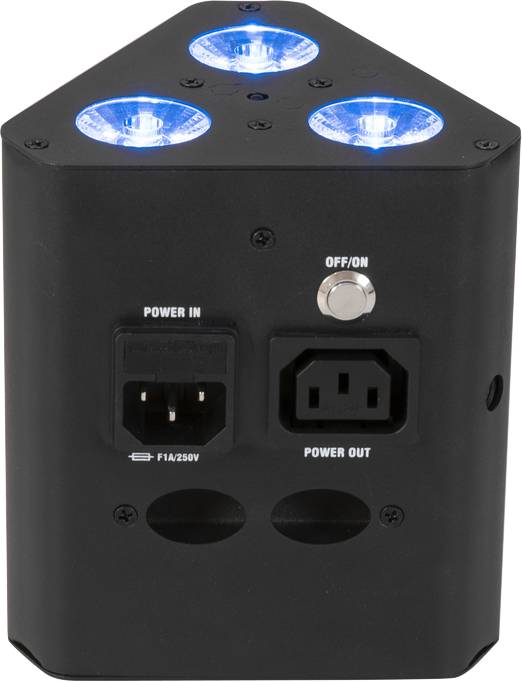

- IEC power connections for easy connection of up to 8 devices
- Switched-mode power supply technology for mains voltage between 100 and 240 volts
- LED: 3 x high-power 4 W 4in1 QCL RGB/UV (homogeneous color mixing)
- Can be operated in 2; 4; 5; 6; 9 CH DMX mode
- The device is cooled by passive convection cooling
- Can be controlled via stand-alone; DMX; IR remote control; QuickDMX via USB (optional); music control via microphone; master/slave function
- Flicker-free projection
- Noise classification: Class 0 (no noise); class 0 (no noise)
- Legal Specifications:
- Subject to eco-design: Yes
- Special product: Not intended for domestic lighting
- Intended use: Lighting for show effects.
