Eurolite 41700515 AKKU IP TL-3 QCL DMX LED effect light No. of LEDs (details):3 10 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
30 W
- LEDs
3
- Colour
RGBW
- Dim
(L x W x H) 13 x 13 x 15.3 cm
- Weight
2.24 kg
n.rel.
- Features
Battery-powered
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
13 cm
- Height
15.3 cm
- Length
13 cm
- Watt per LED
10 W
- Cable length
1.5 m
- Depth
11.5 cm
IP65
- Case colour
Black
- Radiation angle
8°
- Protection class
III
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642528 Eurolite 41700515 AKKU IP TL-3 QCL DMX LED effect light No. of LEDs (details):3 10 W
Description

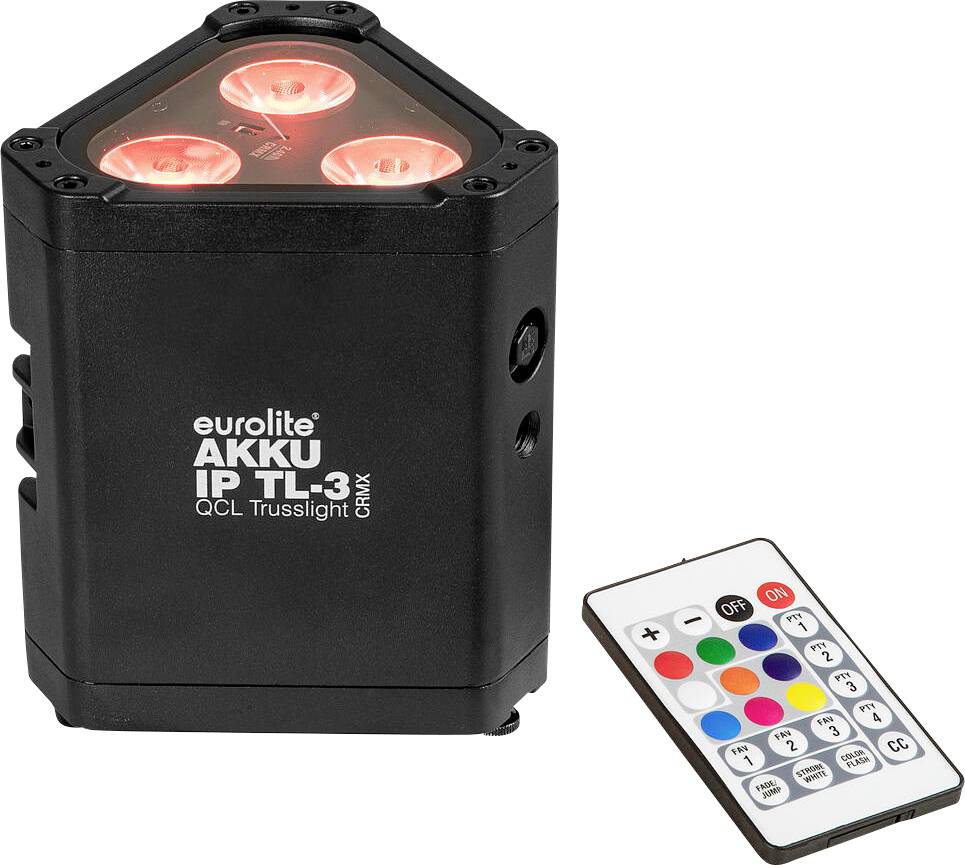

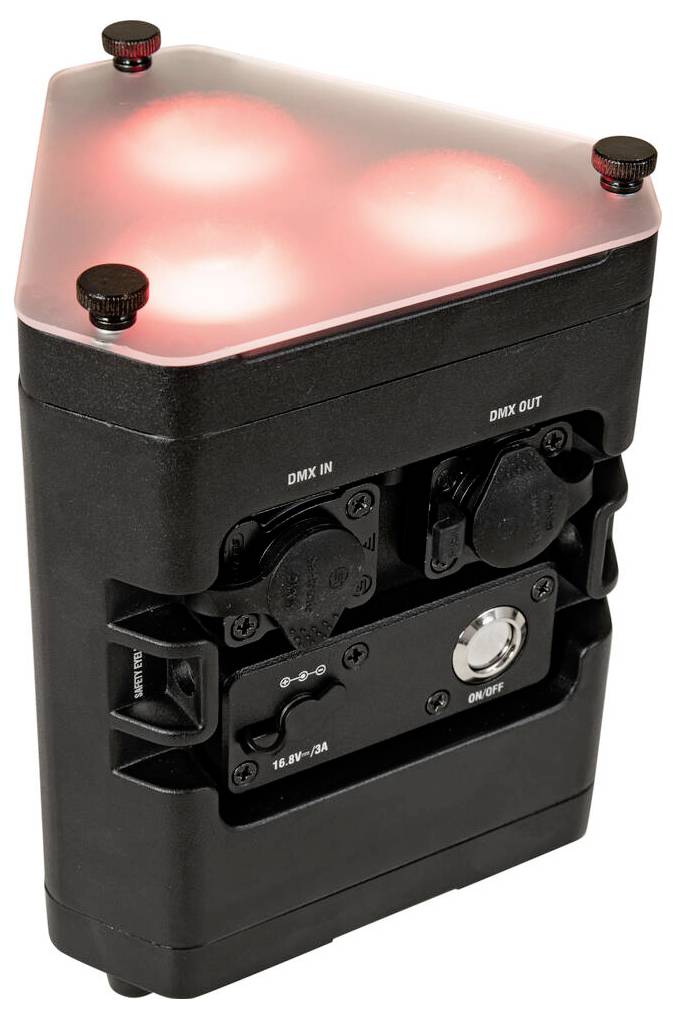

Weather-proof battery-operated LED Spot (IP65) Ideal as Trustee light or Uplight with bright 3x10W RGBW LED. Integrated wireless receiver for CRMX-operation. Compact and powerful light. Additional frost filter for a broad, homogeneous and soft light. Thread for installation on cross beams. Wireless, flexible and versatile. Battery life up to 10 h depending on the program used. 3 powerful LEDs 10 W 4in1 QCL RGBW (homogeneous color mixing). Continuous color mixing; adjustable color change; adjustable color cross-fading; electronic dimmer; dimmer speed (step response) with adjustable response; white balance; energy saving mode. Uplight effect. 36 integrated show programs. Direct color selection for 15 preset colors. The device is cooled by passive convection cooling. Can be controlled via stand-alone; Master/slave function; IR remote control; DMX; CRMX by Lumen Radio; W-DMX by wireless solution; RDM. Already pre-programmed by Colorchief. Flicker-free. With an angle of radiation of 8°. OLED Display Displays the remaining battery life for the current setting. Battery level indicator Rubber base. Suitable for outdoor areas IP65. With pressure equalization membrane. For application areas like: Clubs/dance schools; stage; decoration; wedding/gala/events; mobile DJ's / solo entertainer; distributor; advertising/shop window. Noiseless operation Possible application: Standing; flying. 3 buttons of the remote control to store your own settings
This text is machine translated.
This text is machine translated.
Features

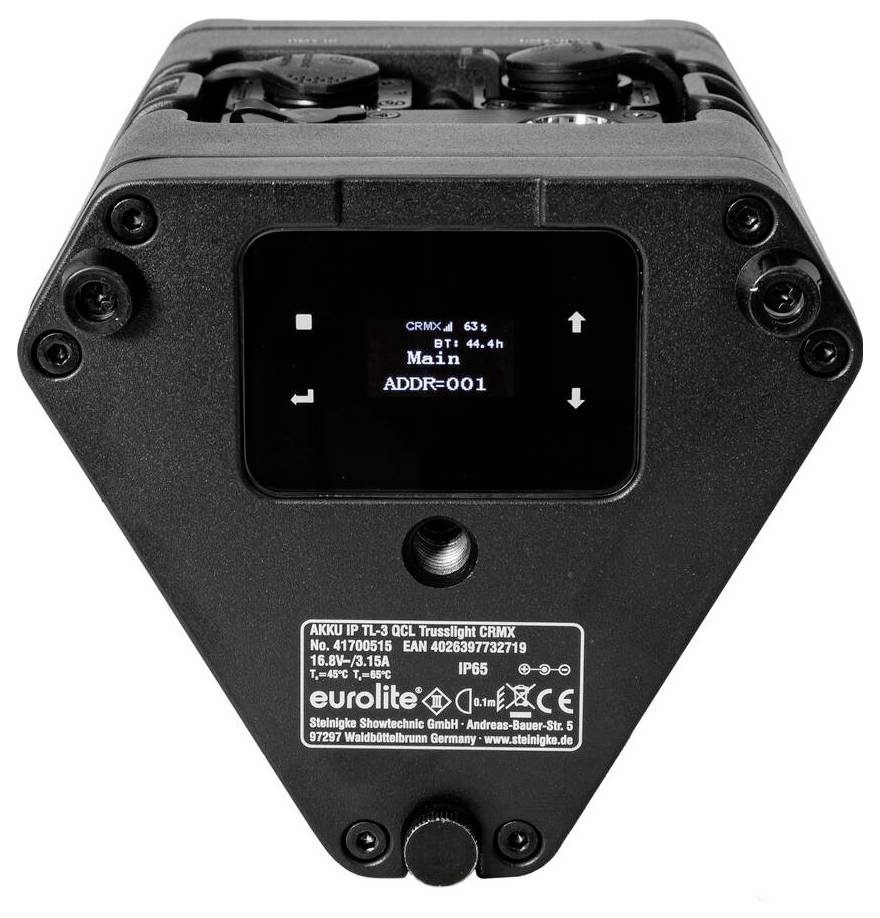

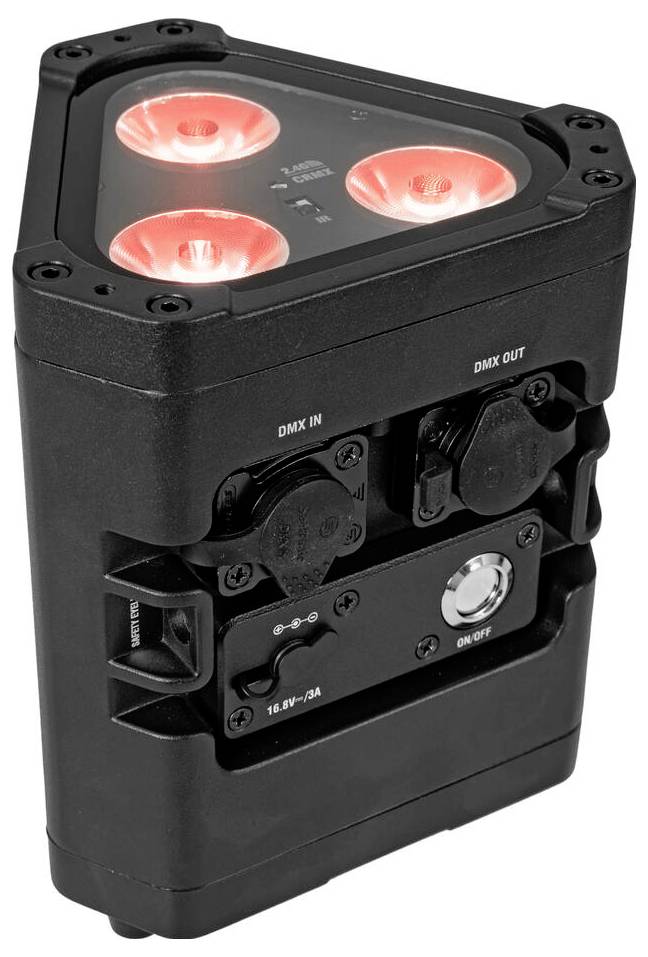

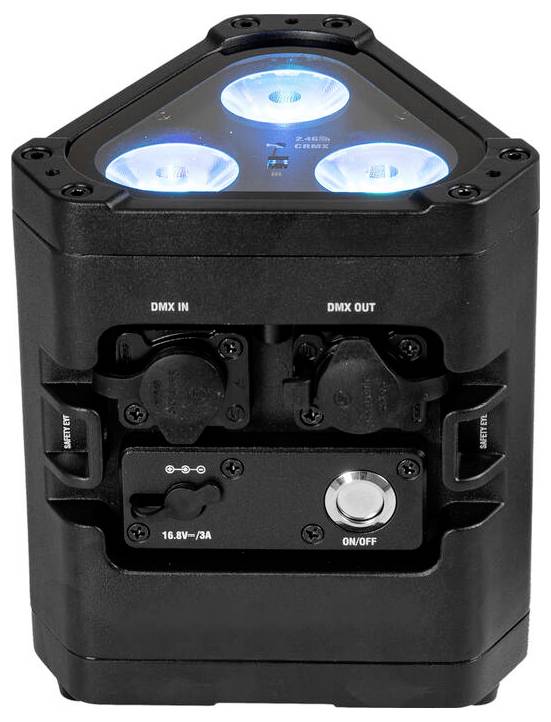

- Power supply: 100-240 V AC, 50/60 Hz; 16.8V 3150 mA; protection class: IP65; protection class: SK III; Power supply: power feed via hollow plug (M) installation version power supply cable with Euro plug (included); battery/rechargeable battery; cable length: 1.5 m removable; battery type: 1 x lithium ion 14.8 V, 5200 mAh, 76.96 Wh; battery: operating time up to 10h depending on program used; charging duration: 3.5h; lamp type: LED lamp type: 3 x 10 W 4in1 QCL RGBW (homogeneous color mixing); flash rate: 1 – 23 Hz; DMX channels 3; 4; 6; 8; 11; DMX input: 3-pin XLR (M) installation version IP; DMX output: 3-pin XLR (W) installation version IP; Cooling: passive convection cooling; control: stand-alone; Master/slave function; IR remote control; DMX; CRMX by Lumen Radio; W-DMX by Wireless Solution; RDM; Pre-programmed by: Colour Chief; Projection: Flicker free; Carrier frequency: 2.4 GHz; Radiation angle: 8°; Angle of radiation (1/2 peak): 8°; Frost filter 20°; Radiation angle (1/10 peak): 16°; Frost filter 40°; Housing color: black; Recording system: 2x M10 thread; Display type: OLED display; Display: Battery time calculation, charging status display; Transport aid: Rubber feet; Dimensions: Length: 13 cm; Depth: 11.5 cm; Height: 15.3 cm; Weight: 2.24 kg; Noise classification: Class 0 (no noise); Remote control; Battery: 1 x button cell 3.0 V CR2032 Lithium manganese installed; Legal specifications; Special product: Not intended for domestic lighting; Purpose: Lighting for show effects
Scope of delivery
- 1 x device
- 1x user manual
- 1 x external power supply
- 1 x frost filters
- 3 x Knurled screw
- 1x remote control
- 1 x battery
